Product Details:
Place of Origin: China
Brand Name: Ruiqi
Model Number: PH000028
Payment & Shipping Terms:
Minimum Order Quantity: 50 meters
Packaging Details: standard export
Delivery Time: 10days
Supply Ability: 1000meter/day
Contact Now
Detailed Product Description
Material: Polyser , Cotton Thickness: 3mm, 4mm, 5mm, 6mm
Width: 0 To 2.25 Meters Color: Original White
High Light:

pall filter bags

,

cement dust collector bags

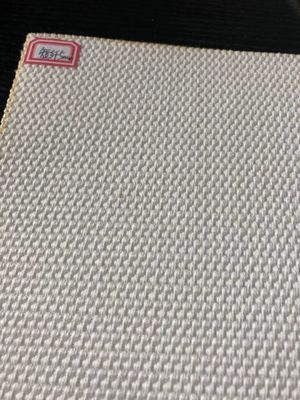

Polyester canvas air slide fabric belt with CE certification
Air slide Fabrics

In cement plant:


An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.



fluidization silo:


Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.

Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.


Specifications:

TYPE MATERIAL PLY TENSILE STRENGTH HEAT RESISTANCE ºC THICKNESS WEIGHT/m2 MAX WIDTH AIR RESISTANCE IN
WARP >N/mm WEFT >N/mm 2m3/m2/minH2O mm
AP4-4 100%Polyester 4 360 270 150 4 3200g 2000mm Type A;80-120
Type B:120-150
Type C:150-200
AP4-5 100%Polyester 4 360 270 150 5 3600g 2000mm Type A;80-120
Type B:120-150
Type C:150-200
AP4-6 100%Polyester 4 360 270 150 6 4000g 2000mm Type A;80-120
Type B:120-150
Type C:150-200
AP4-7 100%Polyester 4 360 270 150 7 4400g 2000mm Type A;80-120
Type B:120-150
Type C:150-200
AP4-8 100%Polyester 4 360 270 150 8 4800g 2000mm Type A;80-120
Type B:120-150
Type C:150-200
AC4-5 100%Cotton 4 150 100 150 5 3800g 2000mm Type A;80-120
Type B:120-150
Type C:150-200


Conveyor Belt Slide Belt Cement Air Slide Fabric 3mm 4mm 5mm 6mm 0Conveyor Belt Slide Belt Cement Air Slide Fabric 3mm 4mm 5mm 6mm 1Conveyor Belt Slide Belt Cement Air Slide Fabric 3mm 4mm 5mm 6mm 2Conveyor Belt Slide Belt Cement Air Slide Fabric 3mm 4mm 5mm 6mm 3

Conveyor Belt Slide Belt Cement Air Slide Fabric 3mm 4mm 5mm 6mm 4Conveyor Belt Slide Belt Cement Air Slide Fabric 3mm 4mm 5mm 6mm 5

Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
