Home ProductsIndustrial Filter Bag

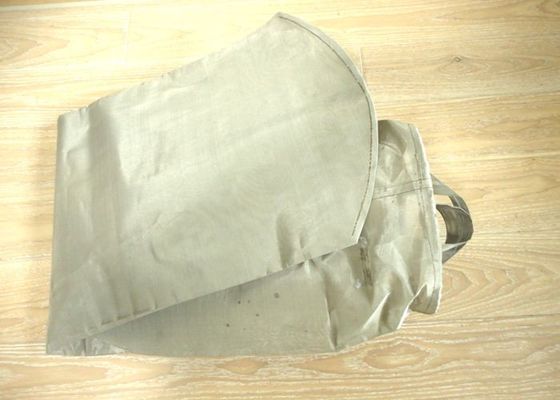

High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration

High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration

  • High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration
  • High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration
  • High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration
High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration
Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: liquid filter bag
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: standard export package
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 30000pcs per day
Contact Now
Detailed Product Description
Shape:: Round,square,diomand And So On Use:: Solid,liquid,gas
Structure:: Multilayer Layers Material:: Metal, 316L,304
Filter Rating:: 1-200um Color:: Silver Gray
High Light:

industrial dust collector bags

,

pall filter bags

industrial filter bag stainless steel wire mesh / polyester mesh





Quick Detail:



Material : SS304 , SS316 , polyester mesh

Micron rating : 0.5um ~800um

Good anti abrasion

High temperature grade

Anti-acid ,anti-alkali, chemical resistance

High porosity ,good air permeability

Laminated compound,grads counterchange





Description:



High temperature resistance

Excellent resistant to hydrolysis, acids and alkalies.

Smooth surface, more defined pore size and good air permeability

Lower fiber release, Lower density,High mechanical characteristics





Specifications:



#1-----(7"x16") -----¢180*410mm



#2-----(7" x 32") -----¢180*810mm



#3-----(4"x 8 1/4") -----¢102*210mm



#4-----(4"x 14") -----¢102*356mm



We have various types of  Stainless steel sintered wire mesh bag filter , in order to give you a responsible quotation, you can inform us the following informations :



1. The drawing of the filter disc



2.The filtration you need



3. The material you want



4. The diameter of the product



5. The Thickness of the product



Technical Parameters



Type

Nominal Accuracy

(μm)

Gas Permeability

(L/mil•dm² • 1000Pa)

Bubble Pressure
MSW1 1 180 5300-6000
MSW2 2 240 4300-5000
MSW5 5 260 3000-3700
MSW10 10 310 2700-3300
MSW15 15 350 2000-2600
MSW20 20 450 1800-2300
MSW25 25 620 1400-1900
MSW30 30 690 1200-1700
MSW40 40 420 1000-1500
MSW50 50 850 900-1200
MSW70 70 900 700-1100
MSW100 100 1080 650-1000
MSW150 150 2600 500-800
MSW200 200 2800 450-600






Notices:



1. Materials avaliable: SS304 , SS3016

2. construction: welded or sewn

3. collar type: carbon steel ring or stainless steel ring

4. Size available: standard and custom size.





Applications:



1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.



High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration 0High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration 1High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration 2High temperature industrial filter bag stainless steel / polyester filter mesh liquid / water filtration 3





FAQ



1. Are you Trading company or Manufacturer?

We are factory.



2. May I get samples?

Yes,

For OEM sample, usually takes about 5~15 days, it depends on design and technique.



3. Can you make my logo on package?

Of course! You only need provide us your original logo file or clear picture, so we can make it.


4. What is the payment method?

Bank transfer (T/T), Western Union, Money gram, L/C, paypal



5. How long production takes?

It is usually in 5~7 days after getting your payment and all the details confirmed.
