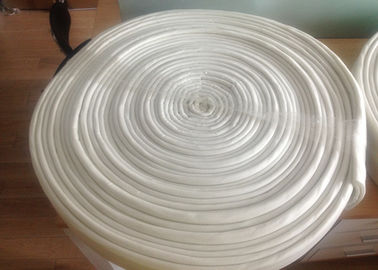

Needle Punched Felt Coated With Membrane Felt Pipe CIPP System

Needle Punched Felt Coated With Membrane Felt Pipe CIPP System

  • Needle Punched Felt Coated With Membrane Felt Pipe CIPP System
  • Needle Punched Felt Coated With Membrane Felt Pipe CIPP System
  • Needle Punched Felt Coated With Membrane Felt Pipe CIPP System
Needle Punched Felt Coated With Membrane Felt Pipe CIPP System
Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: needle felt filter
Payment & Shipping Terms:
Minimum Order Quantity: 200 meters
Price: Negotiable
Packaging Details: standard export package
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 100000m per week
Contact Now
Detailed Product Description
Place Of Origin:: Zhejiang, China Function:: CIPP Overturn Lining Technique
Material:: Polyester Bag Size:: Customized
Technics:: Nowoven Needle Punched Membrane:: TPU Membrane Coated
High Light:

washable filter media

,

woven filter fabric



Needle Punched Felt Coated with Membrane Felt Pipe CIPP System



Quick Detail:



Normal temperature flue gas filtration felt

100% polyester

1.5mm to 3mm thickness

Weight from 350 to 800s

Width 2.1 meter maximum

High porosity ,good air permeability

Good price quality

Laminated compound,grads counterchange





Description:



High efficiency of removing dust particle

Easy clear and long useful life

Smooth surface after Singeing,Heat setting,Calendering.





Specifications:



Material Polyester Fiber /Polyester scrim
Weight(g/m2) 400 450 500 550 600
Thickness(mm) 1.4 1.6 1.8 2.0 2.2
Air Permeability(m3/m2/min) 21 18 16 13 12

Tensile strength

(n/5 x 20cm)

Warp >1000 >1000 >1100 >1100 >1150
Weft >1350 >1400 >1500 >1550 >1600
Elongation (%) Warp < 25 < 25 < 25 < 25 < 25
Weft < 45 < 45 < 45 < 45 < 45

Working

temperature(℃)

Continues ≤130 ≤130 ≤130 ≤130 ≤130
Instant 150 150 150 150 150
Finishing Treatment Singeing,Het setting,Calendering





































Performance parameters:



Weight(g/m2) 500~550
Thickness(mm) 2.3~2.5
Air permeability(m3/ m2/min) 18~13

Tension at break

(N/5×20cm)

Warp >900
Weft >1200

Elongation at break

(%)

Warp <35
Weft <50

Working temperature

(℃)

Continuous 130
Instantaneous 150
Anti-acid Good
Anti-alkali Common
Anti-abrasion Good
Post treatment

Thread burning,surface smoothing or coating etc

































notices:



Polyester felt can be produced by ordinary staple scrim or high strength filament scrim, due to the customer demands,weight ranges from 350 g/m2 to 800 g/m2.

1. working temperature: no higher than 150 degree celsius

2. specialties: puffy fiber structure & high air permeability & repeat dust caption feature & better dust holding capacity; low fiber loss & no liquid contamination, long durability, low filtration resistance & liquid pressure dropping.

3. techiniques used: needle punching & singing & press polish technique.

4. width: dominated by customers within 2.2m





Applications:



Chemical processing:dryers in the pigment,plastic and catalyst industries

Minerals processing:dryers and finish mills in the cement industry

Metal processing:process collectors in the lead,primary base metal,and foundry industries





Needle Punched Felt Coated With Membrane Felt Pipe CIPP System 0Needle Punched Felt Coated With Membrane Felt Pipe CIPP System 1



Needle Punched Felt Coated With Membrane Felt Pipe CIPP System 2Needle Punched Felt Coated With Membrane Felt Pipe CIPP System 3





FAQ

1. Payment
30% TT advance and balance 70% before shipment.
2. Shipping
By sea or by air
3. MOQ
MOQ varies for different product, some products have no request on MOQ.
4. Lead Time
In general, within 15 days after payment.
5. Samples
We can offer samples according to customers requirements.
6. Quality
We have engineers and technicians carry out quality control.
7. Packing
Normally, our products are packed with polybag, woven bag and carton.
