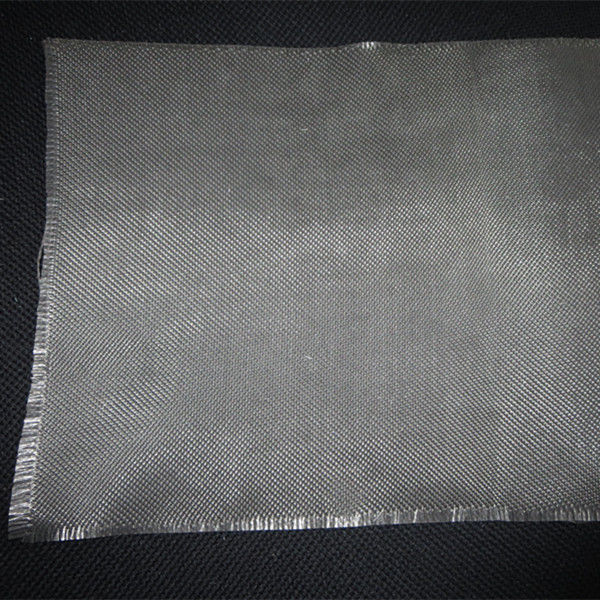

Woven Fiberglass Micron Filter Fabric with Graphite Treatment

Woven Fiberglass Micron Filter Fabric with Graphite Treatment

  • Woven Fiberglass Micron Filter Fabric with Graphite Treatment
  • Woven Fiberglass Micron Filter Fabric with Graphite Treatment
  • Woven Fiberglass Micron Filter Fabric with Graphite Treatment
Woven Fiberglass Micron Filter Fabric with Graphite Treatment
Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: glassfiber filter cloth
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Price: Negotiable
Packaging Details: standard export package
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 10000m per week
Contact Now
Detailed Product Description
Width:: 1m, 1.25m, 2m Color:: White Or Black
Length:: 100m,150m,200m, Etc Sample:: Free
Material: Fiberglass Weave Type:: Plain, Twill, Double Twill
High Light:

filter fabric roll

,

filter press clot

Woven Fiberglass Micron Filter Fabric with Graphite Treatment





Quick Detail:



High filtration efficiency ,long service life

Good anti-abrasion

High temperature grade

Anti - acid ,anti - alkali, chemical resistance

High porosity ,good air permeability

Good price quality

Laminated compound,grads counterchange





Description:



Glass fiber filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.





Specifications:



Type of glass: E-glass and c-glass .

Area weight: 200g/m2-1200g/m2

Width: 150mm-3000mm



Product No.

Warp Tex

 Wwft Tex

 Warp Density

  Ends/cm

 Woft Density

  Ends/cm

Range G/m2

 EWR260

 600

 600

 22

 22

 251-277

 EWR300

 600

 600

 32

 18

 296-328

 EWR400

 600

 900

 32

 23

 380-420

 EWR500

 1200

 1200

 22

 20

 475-525

 EWR600

 2200

 1200

 20

 16

 600-664

 EWR800

 2400

 2400

 20

 16

 820-908

 EWR1200

 4000*2

 4400

 8

 14

 1190-1320

 EWR1200

 2400*2

 2400*2

 14

 12

 1190-1310



Note: The chart above indicates the standard items which are available from stock, other specification available upon request.



Notices:



glass fiber needle felt is one kind of high temperature resistant filter material with reasonable structure and excellent performance, it could be high temperature resistant,anti-abrasion,stable size,little elongation shrinkage ratio,high intension,also ultimate fiber of felt layer fiber,three dimensional micro pore structure,high porosity,small filter resistance to gas,it has higher speed and efficiency,Comparing with other high temperature resistant chemical fiber felt,it has the advantage of lower price,high temperature resistant,but due to high resistance, filtering efficiency is lower





Applications:



Chemical plant Cement plant

Steel iron plant Melting plant

Carbon black plant Electricity Industry



Woven Fiberglass Micron Filter Fabric with Graphite Treatment 0Woven Fiberglass Micron Filter Fabric with Graphite Treatment 1Woven Fiberglass Micron Filter Fabric with Graphite Treatment 2



Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
