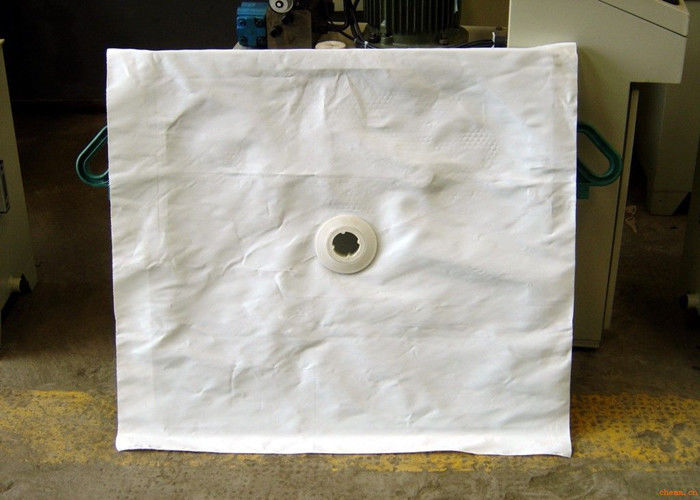

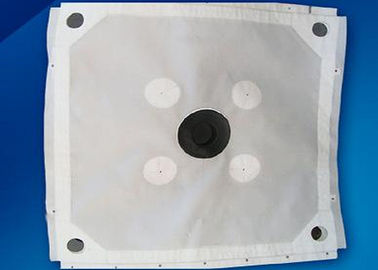

Woven Filter Press Fabric Cloth

Woven Filter Press Fabric Cloth
Woven Filter Press Fabric Cloth Woven Filter Press Fabric Cloth Woven Filter Press Fabric Cloth

Large Image :  Woven Filter Press Fabric Cloth

Product Details:

Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: filter press cloth

Payment & Shipping Terms:

Minimum Order Quantity: 200m
Price: Negotiable
Packaging Details: standard export package
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 10000pcs per week
Detailed Product Description
High Light:

filter cloth for filter press

,

Non woven filter fabric

Filter press fabric / filter press cloth / filter press napkins

woven filter press cloth used for sludge dewatering



Quick Detail:



a. Materials used: polypropylene


b. working temperature: normal working temperature88celsius degree, 110celsius degree peak working temperature.


c. Weight standard:600g/m2, 650g/m2, 700g/m2, 800g/m2.etc. Completely dominated by customers.



Specifications:



Model material

Weight

(g/m2)

Thickness

(mm)

Air permeability

(l/m2.s)

Breaking strength

(N/5x20CM)

Elongation

(%)

Density

(pcs/10cm)

weave
warp weft warp weft Peak. Cont.
PP 750A PP 450 0.79 26 3104 2663 38 30 222 154 PLAIN
PP 750B PP 517 1.27 30 2608 2050 35 28 256 151 TWILL
PP 750BB PP 740 1.40 8 10115 3030 35 30 582 110 SATIN
PP 750AB PP 650 1.30 20 7800 5200 26 20 450 170 TWILL
PP 4212 PP 380 1.07 123 2972 1942 24 37 236 123 TWILL
PE 8222 PE 700 1.5 8 720 450         TWILL



P0802Y zinc oxide (needle felt)
T0803t potash fertilizer (needle felt)
P120D/P050D/P080D/P020MD double layer monofilament filter cloth
P050D, P030MD, P020MD FGD, Gypsum
N9029 iron ore concentrate
N199 iron ore concentrate
P1010 iron ore concentrae
P020MD iron ore concentrate
9501-32 fly ash, coal ash
9501-35 fly ash
9501-34 zinc oxide
P1010sdy zinc sulfate
PT9502b-41DY gold mining,vanadium mine
9502-40 borax, vanadium pentoxide
PT9502b-31 gold
P750AB copper
P120/P190 phosphate
MP11343Y copper
9502-402DY iron sulfide
9503-32 catalyst
P190 Beer filtration
P199s/P11636: Sugar filtration
N120B Palm oil filtration, other oil, use anti-static filter cloth
P1010-37DY Titanium Dioxide
3233SY White carbon black
3233SY/108C/P801IIy Kaolin
T3112BY/3233SYY

pigment, dyestuff



Material available:

PET, PP, PA6, PA66 in monofilament, multifilament fabric, interwoven filter yarn

Benefits:

High dimensional stability,

Good abrasion performance,

Wide range of filter rate

Efficient fabric cleaning



Applications:



Filter press, centrifuge, leaf filter, fluide bed dryer, Rotary/horizontal disc filter



Chemical:



Catalyst, cobalt carbonate, zinc oxide, zirconium carbonate, activated carbon, cobalt carbonate, borate, dyes and intermediates, iron oxide, nickle, salt, aluminum oxide, titanium dioxide, additives, glycerol, pesticides, white carbon black, zinc, calcium carbonate, etc.



Mining:



Red mud, tailings gold, potash fertilizer, vanadium ore, the end of coal, clean coal, clay, Kaolin clay, etc.



Metallurgical:



Gold, molybdenum, lead, vanadium, nickel, zinc, copper, tungsten, carbide slag, etc.



Food:



Fruite juice, suger, starch, sweetener, beer, etc.



Environmental protection:



Sewage treatment, slude dewatering, flue gas desulphurization, salt mud, fly ash, etc.



Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
