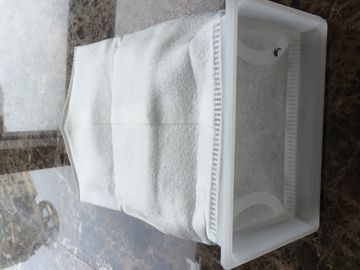

Micron Filter Bag Square Collar Water Filter Liquid Filter Bag PP PE 200 Micron

Micron Filter Bag Square Collar Water Filter Liquid Filter Bag PP PE 200 Micron

    • Micron Filter Bag Square Collar Water Filter Liquid Filter Bag PP PE 200 Micron
    • Micron Filter Bag Square Collar Water Filter Liquid Filter Bag PP PE 200 Micron
  • Micron Filter Bag Square Collar Water Filter Liquid Filter Bag PP PE 200 Micron

    Product Details:

    Place of Origin: China
    Brand Name: PH

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pcs
    Price: negotiation
    Packaging Details: standards export package
    Delivery Time: 7 days
    Payment Terms: T/T, L/C
    Supply Ability: 100000/month
    Contact Now
    Detailed Product Description
    Material: PP , PE Micron: 1 To 200



    micron filter bag square collar water filter liquid filter bag PP PE 200 micron

    Quick Detail:


    Materials:

    1. Polypropylene felt
    2. Polyester felt
    3. Nylon monofilament
    4. Polyester monofilament

    Micron rating : 0.5um ~800um
    Good anti abrasion
    High temperature grade
    Anti acid ,anti alkali, chemical resistance
    High porosity ,good air permeability
    Laminated compound,grads counterchange


    Specifications:

    #1-----(7"x16") -----¢180*410mm

    #2-----(7" x 32") -----¢180*810mm

    #3-----(4"x 8 1/4") -----¢102*210mm

    #4-----(4"x 14") -----¢102*356mm



    Item swimming pool filter
    Type Various specifications
    Material PE , PP , NMO
    Relative filtration pore size 0.2,0.5, 1,5, 10, 25, 50, 100, 200 ,300...1000µm
    Temperature < 80-160°C
    Bag top ring Plastic(PP/PE)/stainless steel/zinc steel
    Body construction Sewn / welded
    Type of bottom Round / V triangle
    Effective filtration area Various specifications

    Special requirement of diameter and collar extension can be customized






    Filter bag
    model
    Filter bag
    area(m2)
    Filter bag
    Volume(Liter)
    Filter bag
    Diameter (Inch/cm )

    Filter bag Length

    (Inch/cm )

    No.1 0.19 7.9 7/17.8 16/40.65
    No.2 0.41 17.3 7/17.8 32/81.3
    No.3 0.05 1.4 4/10.2 8.25/20.9
    No.4 0.09 2.5 4/10.2 14/35.5
    No.5 0.22 8.1 6/152 22/55.9



    Fiber Abrasion resistance Weakly acid Strongly acid Weakly alkali Strongly alkaly Solvent Temperature (°C)
    PE Very good Very good Good Good Poor Good 130-150
    Nylon Excellent General Poor Excellent Excellent Good 135-149
    PP very good Excellent Excellent Excellent Excellent General

    90-110







    Service


    1)Our experienced expert will help you choose the most appropriate filtration material right away! When you tell us your application field and working environment .
    2)If your filtration material or dust collector filter meet problem just tell us, our expert
    will help you solve it.If our problem we will responsible.

    Details of professional polypropylene/ PP liquid filter bag



    1) Materials:PP
    2) Technics:Nowoven Needle Punched
    3) Usage:Air Filtration,Liquid filtration,Power filtration.



    Raw materials Polypropylene
    Weight(g/ m2) 500
    Thickness(mm) 2.5
    Tension break(N/5×20cm) T 900
    W 1200
    Elongation at break(%) T 21
    W 45
    Ventilation rate(m3/ m2/min) 19
    Working temperature(℃) Continuous 90
    Instantaneous 110
    Resistance to acid and alkali Good
    Post treatment Thread burning,surface smoothing






















    Applications:

    1. Paints & lacquer industry
    2. Wastewater treatment
    3. Pharmaceutical industry
    4. Food industry
    5. Chemical industry
    6. Beer, wine & spirit industry
    7. Adhesive.

    Micron Filter Bag Square Collar Water Filter Liquid Filter Bag PP PE 200 MicronMicron Filter Bag Square Collar Water Filter Liquid Filter Bag PP PE 200 MicronMicron Filter Bag Square Collar Water Filter Liquid Filter Bag PP PE 200 Micron




    About samples

    We can provide samples production and service.Usually 4 to 7 days,the sample can be sent to your hands.Any question about samples,please contact us.
