Polyester 1 Micron Felt Polyproplyene Micron Felt For Liquid Filtration

Polyester 1 Micron Felt Polyproplyene Micron Felt For Liquid Filtration

Polyester 1 Micron Felt Polyproplyene Micron Felt For Liquid Filtration

Product Details:

Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: 008

Payment & Shipping Terms:

Minimum Order Quantity: 100meters
Price: Negotiable
Packaging Details: standard export package
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 1000000sq.m per week
Contact Now
Detailed Product Description
Thickness: 2-2.4mm Color: White
Width: 1.6m , 1.8m, 2m, 2.1m, 2.15m Length: 50m, 100m Per Roll

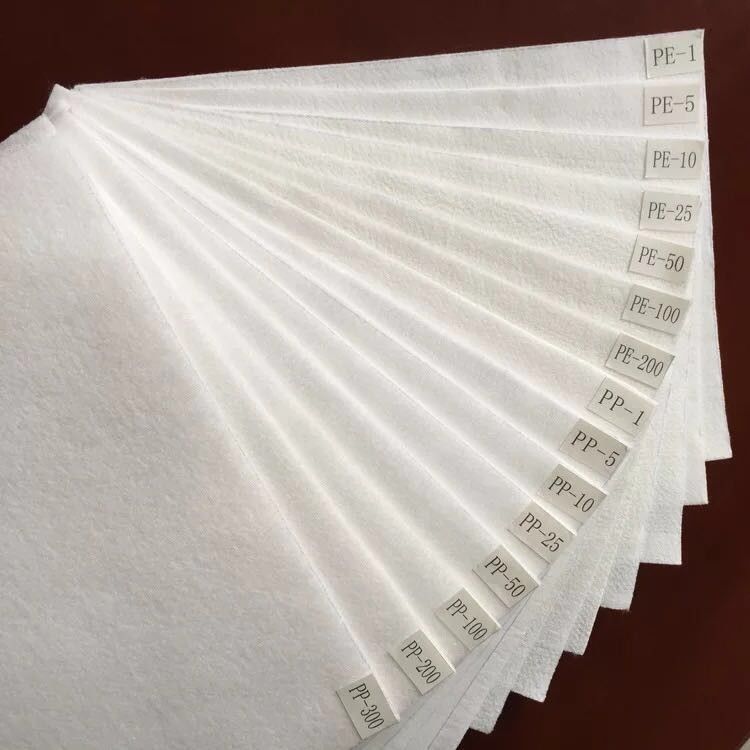

Micron: 1, 10, 25, 50, 70, 75, 100, 150, 200 Material: PE, PP

polyester 1 micron felt ,polyproplyene micron felt for liquid filtration



Quick Detail:



High filtration efficiency , long service life



Good anti abrasion

High temperature grade

Anti acid ,anti alkali, chemical resistance

High porosity , good air permeability

Good price quality

Laminated compound,grads counterchange





Description:



Low temperature resistance ( 88-110 ℃)

Excellent resistant to hydrolysis, acids and alkalies.

Smooth surface, more defined pore size and good air permeability

Lower fiber release, Lower density,High mechanical characteristics





Specifications:



Material Polypropylene / polypropylene scrim
Weight(g/m2) 500 550 600 650
Thickness(mm) 2.0 2.2 2.4 2.6
Air permeability(m3/m3/min) 12.6 10.8 9.6 8.4
Tensile Strength(N/5X20cm) Warp >960 >1150 >1350 >1500
Weft >1060 >1400 >1650 >1800
Tensile elongation(%) Warp <35 <35 <35 <35
Weft <55 <55 <55 <55
Working temperature(℃) Continues <90 <90 <90 <90
Instant 110 110 110 110
Anti-acid Excellent Excellent Excellent Excellent
Anti-alkali Excellent Excellent Excellent Excellent
Anti-abrasion Excellent Excellent Excellent Excellent
Finishing treatment Singeing or high temperature press





Micron Filter Cloth and Bags FEATURES
Material Polyproplene or Polyester or Nylon
Temperature 88
celsius degree and peak working



temperature110 celsius degree.
Technics Filtration efficiency up to 98.99%.Filtering precise at most 200 Micron
Thickness Around 0.6cm and according to customers requirement
Dimension dominated by customers with width within 2.2m
and length in 100m/roll or 50m/roll.Bags dominated by
customers(7"x16",7"x30",7"x32",8"x14".etc.)
Strength Fine fibre with Acid & Alkali ,Abrasion resistant, Hydrolysis
stable,Anti-oxidation
Edge treatment for bags Stitch sewing or heat pressing or metal
rings.


Color White
Package In inner polybag & outter woven polybag
with paper tube inside the axis or Carton with bags in any dimension.
Quality level super fine strength & ideal air
permeability& big durability

Notices:



Polypropylene is a relatively low temperature fiber with quite excellent chemical resistance which finds use in specialist applications such as the chemical industry.





Applications:



Galvanic industry and Chemical industryPrefiltering solvents and acids

Prefilter to extend final filter lifeFinal filter for noncritical filtrations

Liquid-solid sepration with strong acid and alkali conditions filter press

Air filtration under 90℃



Polyester 1 Micron Felt Polyproplyene Micron Felt For Liquid FiltrationPolyester 1 Micron Felt Polyproplyene Micron Felt For Liquid FiltrationPolyester 1 Micron Felt Polyproplyene Micron Felt For Liquid Filtration


Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
