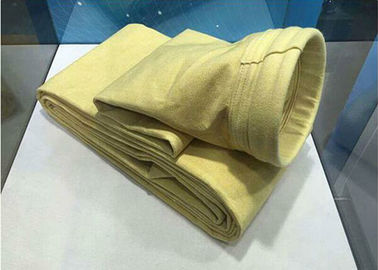

FMS Hepa Air Filter Bag Dust Collector Bag For Industry 132mm * 5200mm

FMS Hepa Air Filter Bag Dust Collector Bag For Industry 132mm * 5200mm

    • FMS Hepa Air Filter Bag Dust Collector Bag For Industry 132mm * 5200mm
    • FMS Hepa Air Filter Bag Dust Collector Bag For Industry 132mm * 5200mm
    • FMS Hepa Air Filter Bag Dust Collector Bag For Industry 132mm * 5200mm
  • FMS Hepa Air Filter Bag Dust Collector Bag For Industry 132mm * 5200mm

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: FMS filter fabric

    Payment & Shipping Terms:

    Minimum Order Quantity: 100PCS
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 10000m per week
    Contact Now
    Detailed Product Description
    Place Of Origin: Zhejiang China (Mainland) Brand Name: Philis
    Type: Pocket Filter Usage:: Dust Filter
    Material Of Bag: FMS Working Temp:: 250-270 Deg C

    FMS hepa air filter bag dust collector bag for industry 132mm*5200mm



    Quick Detail:



    High filtration efficiency ,long service life

    Good anti abrasion

    High temperature grade

    Anti-acid ,anti-alkali, chemical resistance

    High porosity ,good air permeability

    Good price quality

    Laminated compound,grads counterchange



    Fiber:P84+Fiberglass

    Scrim: Fiberglass





    Description:



    FMS / FNS filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.





    Specifications:



    Item Unit Parameter
    Material Face:glassfiber mix P84 Scrim:GL
    Grammas Per Square Meter g/m2 850±5%
    Thickness mm 2.0±0.2
    Air Permeability(200Pa) L/dm2.min 200~250
      Cont 260
    Temperature Resistance Peaks 280
      Warp N/50*200mm ≥2800
    Minimum Breaking Strength Weft ≥2800
      Warp % ≤10
    Elongation at Break Weft ≤10
    Surface Design Treatment Singeing,Calendering,Heat-set,PTFE treatment
    Using Scope Cement klin head and tail ,Steel,Blast furnace gas







    Notices:



    FMS / FNS needle felt is one kind of high temperature resistant filter material with reasonable structure and excellent performance,it could be high temperature resistant,anti-abrasion,stable size,little elongation shrinkage ratio,high intension,also ultimate fiber of felt layer fiber,three dimensional micro pore structure,high porosity,small filter resistance to gas,it has higher speed and efficiency,Comparing with other high temperature resistant chemical fiber felt,it has the advantage of lower price,high temperature resistant,but due to high resistance, filtering efficiency is lower.





    The Advantages of FMS Filter Felt and Bag



    • good chemical stability, acid resistance, alkali resistance, corrosion resistance
    • high temperature resistance (260-280°C)and Cold Resistance
    • good oxidize resistance
    • good hydrolysis Resistance
    • excellent abrasion Resistance
    • higher Air to Cloth Ratios
    • reusable and Easily Cleaned
    • low coefficient of friction



    Applications:



    Chemical plant Cement plant

    Steel iron plant Melting plant

    Carbon black plant Electricity Industry



    Others:



    We can supply following non-woven filter fabric:


    1) Normal temperature resistant needle punched felt (PP, PET)


    2) High temperature resistant needle punched felt (PPS, Fiberglass, P84, FMS)


    3) Antistatic felt:
    A) Blended polyester anti-static needle punched felt
    B) Basic scrim anti-static needle punched felt
    C) Blended polyester anti-static needle punched felt with anti-static basic scrim


    4) Water and Oil Repellent Felt (PET)


    5) PTFE Coated Felt(PP+PTFE, PET+PTFE)


    6) Liquid Filtration Needle Punched Felt (PP,PET)



    For more details,please contact me freely.
