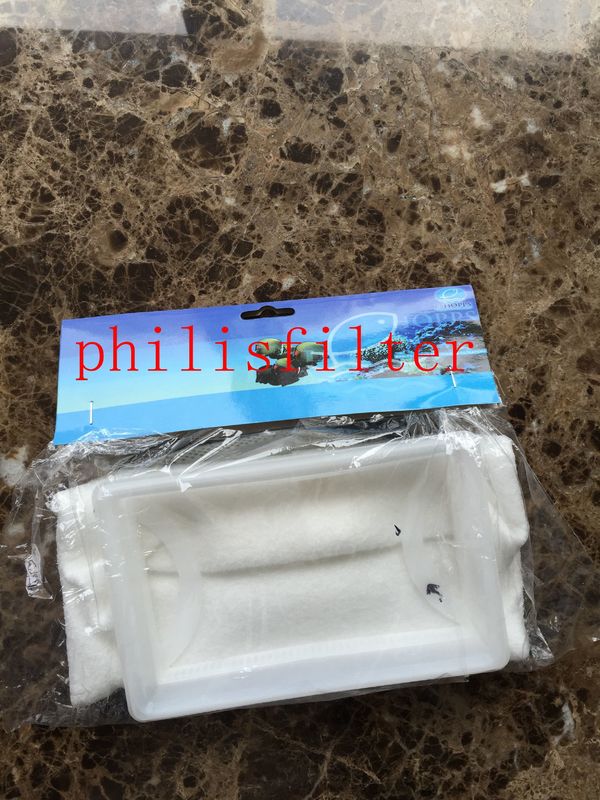

Square Plastic Collar Micron Filter Bag For Liquid Water Filter

Square Plastic Collar Micron Filter Bag For Liquid Water Filter

    • Square Plastic Collar Micron Filter Bag For Liquid Water Filter
    • Square Plastic Collar Micron Filter Bag For Liquid Water Filter
    • Square Plastic Collar Micron Filter Bag For Liquid Water Filter
  • Square Plastic Collar Micron Filter Bag For Liquid Water Filter

    Product Details:

    Place of Origin: China
    Brand Name: PHILIS
    Model Number: PHILIS0809

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: 5
    Packaging Details: standard export packing
    Delivery Time: 10days
    Payment Terms: L/C, T/T, D/P, D/A, Western Union
    Supply Ability: 10000/day
    Contact Now
    Detailed Product Description
    Material: Polyester , PP, Micron Sizes: 0.5 Micron To 500micron
    Sizes: NO.2 , N04, No.5 Custome Size

    square plastic collar micron filter bag for liquid water filter
    Quick Detail:


    Material : PP or PE,polyester, polypropylene
    Micron rating : 0.5um ~800um
    Good anti-abrasion
    High temperature grade
    Anti-acid ,anti-alkali, chemical resistance
    High porosity ,good air permeability
    Laminated compound,grads counterchange

    Parameter of PP Liquid filter bag

    Square Plastic Collar Micron Filter Bag For Liquid Water Filter


    Specifications:

    1. Material:PP non-wowen Felt.

    2. 100 micron or as your request.
    3. With straw string.
    4. Use for powder or air filter .
    5. size, shape, packing can be customized.



    #1-----(7"x16") -----¢180*410mm

    #2-----(7" x 32") -----¢180*810mm

    #3-----(4"x 8 1/4") -----¢102*210mm

    #4-----(4"x 14") -----¢102*356mm







    Material PE,PP,NMO,PTFE
    Cuff PP Lock, Stainless steel
    Relative filtration pore size 0.5, 1,5, 10, 25, 50, 100, 200 µm
    Type various specifications
    Airtight method: Hot Melt, reverse sewing
    Effective filtration area various specifications
    Others special requirement of diameter and collar extension can be customized



    PRODUCT CODE:
    Component Elongation@50N/5cm
    Fibre 100%PP Longitudinal(%) Transverse(%)
    Scrim 100%PP <3% <3%
    Weight(g/m²) 500 Operating Temperatures
    Thickness(mm) 2.0 Continuous(°C) Surge(°C)
    Density(g/cm3) 0.25 130 150
    Mean Air Permeability
    (L/dm².min)
    150-250 Max Dry Shrinkage in 90 minutes:(150°C)(%) <1%
    Breaking Strength Surface Treatment Heat Setting, Singed,
    Represent add stainless
    steel fibers
    Longitudinal(N) Transverse(N)
    >1000 >1200



    Notices:

    1. Materials avaliable: polyester, polypropylene
    2. construction: welded or sewn
    3. collar type: steel ring or plastic ring
    4. finishing treatment: singed, calendared, heat set
    5. Size available: standard and custom size.
    Square Plastic Collar Micron Filter Bag For Liquid Water Filter

    Application fields:

    1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations

    2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals

    3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers

    4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics

    5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster

    6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.

    Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

    Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

    The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
