Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: bag filter cage
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: standard export package
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Color: Black Surface Treatment: Galvannized Or Silicon Power Plated
Material: Carbon Steel/SS304, 316, 316L 2205SS Type Of Cage: Any Type
Thickness: Φ3, 3.2, 3.5, 3.8, 4 Certification:: ISO9001:2008
High Light:

baghouse cages

,

baghouse filter cages

Venturis and Filter Bag Cages for Dust Collection Systems 316L, 2205 Stainless Steel





Quick Detail:



1. Ventury filter cages-ISO9001:2008 Certified
2. Carbon or stainless steel
3. Galnanized or silicon plated surface
4. Any size





Description:



bag Filter cage with Zinc galvanized Surface Finish

using the advanced hot-melt jointing technology. The jointing method of bag bottom, side and collar ring all are hot-melt welded, that can avoid the pinholes from seam filter bag.

The Filter bag cage is a rib filter cage and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.





Specifications:



The filter cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.



1.material of cage: carbon steel or SS304,316,316L, 2205ss

2.type of cage: any style

3.type of the horizontal bar: round ring or star or envelop or oval

4.surface treatment: zinc-galvanization or silicon coating or epoxy

5.style of connection: clamp, chuck, claw join connection

6. Nos of wires: 8,10,12,16,20,24

7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.



The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.



The thichkness of the longitudinal wire can be Φ3, 3.2, 3.5, 3.8, 4.





Notices:



We make filter cages of different shapes and dimensions to meet customers’ requirements. To supply with perfect testing for our products. Our cost is under utmost lower control because of our assembly line production. Precise, pragmatic and prudent working styles are adopted in every working procedure at CNP. We are highly responsible for every product component In addition, advanced manufacture equipment and scientific management made each finished product become the first selection of customers. By offering reliable assurance to integrate product quality with international standards with advanced equipment and technology, Professional production of dust cage skeleton, and can also design, develop, and manufacture as the clients request.





Specification

The Mian Specification Parameters of The Bag Cage



Type Circle type,Oval type,Flat type,Special-shaped
Material Carbon steel,Galvanized steel wire,Stainless steel,Titanium wire
Finish treatment Galvanized,organic silicon spray,anti-corrosion treatment
The number of lingitudinal bar 8~24 wires(Circle Type),10~16 wires (Oval Type)
Structure Single section type bag cage,screw joint type,double wire PJE type,single wire PJE type,etc
Configuration Venturi,protection nozzle stub






Goods Name

Standard

Description

Goods Name

Standard

Description

Clamps

φ180



Spring curb

120*2

Normal quenching steel belt

φ230

130*2

φ250

150*2

φ260

200*2

φ292

292*2

φ300

300*2

Hoop

φ160

 φ300-φ270 using wire rod ofφ4.2

120*2.5

φ170

130*2.5

φ180

150*2.5

φ200

182*2.5

φ210

202*1.3

Quenching stainless steel belt

φ250

φ180 using wire rod of  φ3.3

127*1.5

φ260

127*1.9

If it is highly corrosive, we can use titanium curb

φ280

130*2.5

φ292

φ260-φ180 using wire rod of φ3.8

150*2.5

φ300

129.6*2.5

φ400

280*2

φ615

Pendant chain device

Hung huang, pendant chain



Cap

180

upper cap lower cap

200

230

Venturi tube

Carbon steel

250

Aluminum

292

Stainless steel

300

Unifying covering cap and  venturi tube(integration)

Filter cage

Material: hard-drawn wire

Galvanization treatment

Normal

Yellow

White zinc plated treatment

High quality

Light silver

Organic silicon treatment



Black

Material: stainless steel

201-316L



Any special requirement and production can be processed according to buyer’s sample(with drawing)























































































Applications:



Power Stations
Filtered dust
Flue ash, discharging flue ash
Coal dust
Building and Construction
Cement, furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals,
Pure clay, phosphates, magnesite concentrate, finely ground
fluorid, production of aluminum
Chemical Industry
Thomas meal (Fertilizer)
Rubber compounds, sinter dust, catalysts
Sodium sulfate
Soap powder

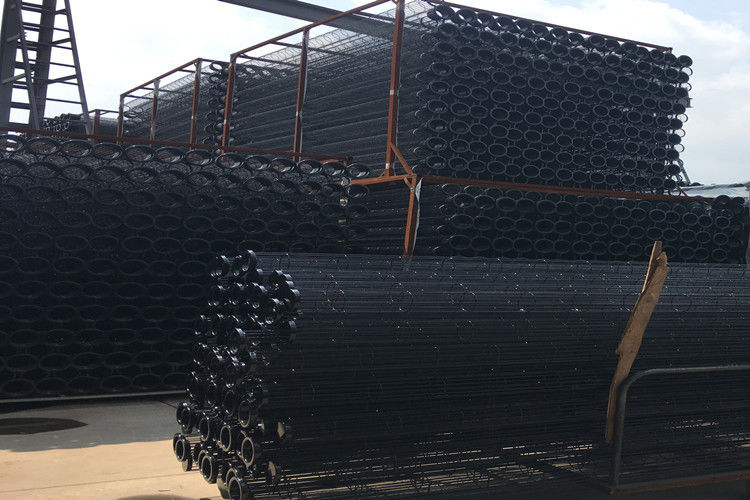

Dust Collection Systems Venturis And Filter Bag Cages 0
