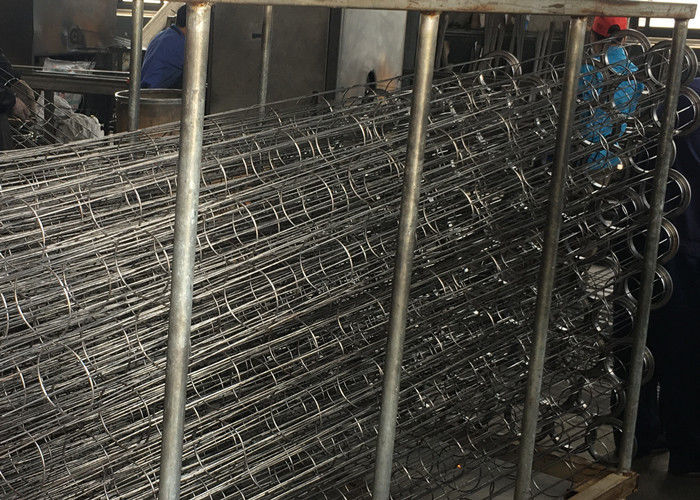

ISO9001 Silicone 3.5 Mm Bag Filter Cage

ISO9001 Silicone 3.5 Mm Bag Filter Cage

  • ISO9001 Silicone 3.5 Mm Bag Filter Cage
  • ISO9001 Silicone 3.5 Mm Bag Filter Cage
ISO9001 Silicone 3.5 Mm Bag Filter Cage
Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: bag filter cage
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: standard export package
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Color: Black Surface Treatment: Galvannized Or Silicon Power Plated
Material: Carbon Steel/SS304, 316, 316L 2205SS Type Of Cage: Any Type
Thickness: Φ3, 3.2, 3.5, 3.8, 4 Certification:: ISO9001:2008
High Light:

filter baghouse bag cage

,

3.5mm dust collector filter cage

ISO9001 silicone filter cage bag filter cage 3.5 mm dust collecotr filter cage



Quick Detail:



Condition: New
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Marketing Type: Ordinary Product
Place of Origin: Zhejiang, China
Material: Optional
Common Vertical Wires: 10, 12, 20, etc.
Common Wire Gauges: 10, 11, 12, etc.
Diameters: 4''-6 1/8'' (customizable)
Lengths: 6''-12'' (customizable)
Package: Big carton with plastic bag in side
Cage Shape: Round, Oval, Envelope
Core Components: Cage





Packaging & Delivery
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 5 15 To be negotiated



Description:



Dust Collector Cages are to fit most baghouse makes and models. Common cage constructions consist of 10, 12 or 20 vertical wires. Standard horizontal ring spacings are 4”, 6” or 8”.


If clean air plenum height restrictions are a problem, two piece cages are available. For areas where moisture or acid corrosion are present we provides a range of materials and coatings.





Main Features


1. The longitudinal and anti-supporting rings of the skeleton are evenly distributed to prevent damage and deformation. The top is equipped with a cold stamping pipe, which is used to ensure the safety of the bag cage and the protection of the filter bag.

2. Once the skeleton production line is formed, ensure straightness and distortion, smooth and without burr after welding, and have sufficient strength not to unsolder, without dissoldering, virtual soldering and leakage welding.

3. The design structure is strong and reliable, and the service life is longer.

4, accept customization , can provide the elliptical, envelope and fold shape, multi type, venturi tube, the protection under the short tube, discharge type, plug type, chuck type connection mode of skeleton dust removal, and can produce different specifications according to customer requirements of different surface treatment of different connection mode frame of dust.





Notices:



We make filter cages of different shapes and dimensions to meet customers’ requirements. To supply with perfect testing for our products. Our cost is under utmost lower control because of our assembly line production. Precise, pragmatic and prudent working styles are adopted in every working procedure at CNP. We are highly responsible for every product component In addition, advanced manufacture equipment and scientific management made each finished product become the first selection of customers. By offering reliable assurance to integrate product quality with international standards with advanced equipment and technology, Professional production of dust cage skeleton, and can also design, develop, and manufacture as the clients request.





Specification


Materials/Finishes
Carbon Steel/Mild Steel

Galvanized Steel

304 Stainless Steel

316 Stainless Steel

Epoxy Coated (High Temp <325°)

Inconnel 600 or 601
Vertical Wires
10, 12, 20, 5, 6, 8, 16, 24
Wire Gauges
10, 11, 12, 7, 9, 13
Diameters
4''-6 1/8''
Lengths
6''-12''
Cage Shape
Round

Oval

Envelope
Cage Top Styles
Rolled Flange (Turned Down Flange)

Split Collar (Rolled Band)

Slotted

All Wire

Split Ring
Cage Bottom Styles
Welded

Crimped

Snap

Wire Formed
Venturi
Aluminum, Carbon steel, Galvanized and Stainless steel

Attached (riveted) or drop-in/removable designs

Lengths: 3''-6''





Applications:



Filter cage are widely used for purifying dusty air in industries like metallurgy, steel, cement, mechanical, electricity, chemicals, waste incineration, concrete mixing and other conditions of complex industries.
Entex products are sold well both at domestic and abroad, highly praised by our customers.
We can supply you with this product in a large quantity at wholesale prices.
And we will give you the best after-sales service if you buy our products.
Pls feel free to contact us if you have any questions!





ISO9001 Silicone 3.5 Mm Bag Filter Cage 0





ISO9001 Silicone 3.5 Mm Bag Filter Cage 1





ISO9001 Silicone 3.5 Mm Bag Filter Cage 2





FAQ

Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape according to your drawing.

Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge, you only have to pay the cost of freight.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.

Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Please feel free to contact us if you have any questions.
