|Place of Origin:||China|
|Model Number:||p84 filter fabric|
|Minimum Order Quantity:||100 meters|
|Packaging Details:||standard export package|
|Delivery Time:||within 10 days|
|Supply Ability:||10000m per week|
|Air Permeability::||200-300(L/m2/s)||Working Temperature::||260-280℃|

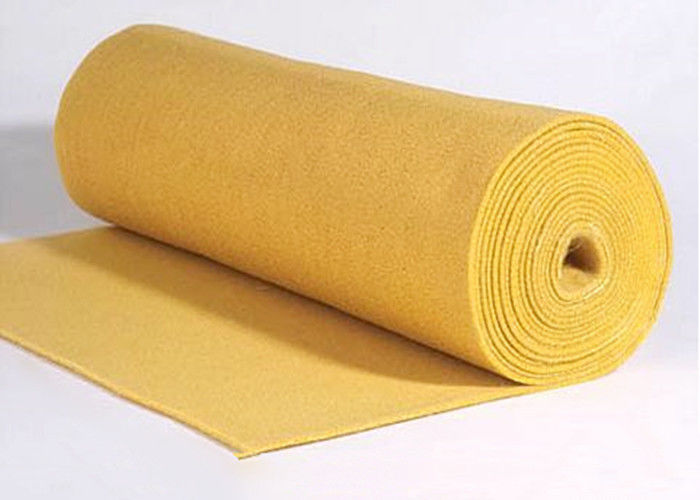

high tempreature resistance nonwoven needle felt P84 filter fabric
High filtration efficiency ,long service life
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Good price quality
Laminated compound,grads counterchange
1.Remarkable high temperature 260°C resistance
2.Favorable chemical resistance
3.The efficiency of low back wash pressure and high elasticity mud cake release
P84 polyimide needle felts are excellent high temperature filter media in terms of performance, generally surpassing the other standard media with the exception of PTFE.
|Compositions||P84/P84 scrim||P84 / glass scrim|
|Air permeability (m2m2/min)||19||15||12||16||13||10|
|Tensile strength (N/5×20cm)||Warp||650||700||800||1800||1800||1800|
|Tensile Elongation (%)||Warp||<35||<35||<35||<10||<10||<10|
|The stability of water solution||Medial||Medial|
|Finishing treatment||Singeing,High temperature hot pressing||Singeing,High temperature hot pressing|
Application and Size of filter bag :
|Filter Media||Working Temperature||Application||Regular Size (mm )|
|Nomex Filter Felt||180-10 degree C.||Asphalt mixing , metal smelting , Gypsum , Cement plant ,etc .||D130 x 2450, D 150 x 3050 , D 160 x 3600 , D150 x 4500|
|PPS Filter Felt||160-190 Degree C||Coal boiler power plant , waste treatment power plant ,etc.||D 160x 6000, D127 x 8065|
|PTFE 100% Filter Felt||240-260 degree C .||Waste treatment power plant ,||D 127 x 3500 , D 130 x 3000|
|Fiberglass Filter Felt||260-280 Degree C||Cement Kiln , Steel plant furnace||D 160 x 6000 , 152 x 5000|
|PTFE memrbane Fiberglass Cloth||260-280 Degree C ,||Cement kiln , steel plant furnace , carbon black plant||D 127 x 36000 , D 130 x 4500|
P84 Felt filter Media provide a unique and cost effective solution for many tough industrial
baghouse applications. Versatile and efficient,P84 usage ranges from minerals processing, low acid coal fired boilers, asphalt/hot mix plants, to soil remediation facilities.P84 fibers are needled into filtration quality felts to be sewn into filter bags suitable for use in pulse jet style baghouses. The unique tri-lobal fiber structure of P84 provides customers with high efficiency filtration, low pressure drop, and reduced cleaning energy.
Incinerator plants Cement Kiln gas Low acid coal fired boilers
Asphalt/hot mix plants flue gas Minerals processing Soil remediation facilities
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
1.How to Order?
2.How to assurance the product quality?
We will send the samples to you conform, and will produce the samples according to your satisfaction.
3.Can you provide free sample ?
Normally, our product need sample fee, But we will charge your sample fee as less as we can, even sometimes free sample available.However, you have to pay us the courier cost like: DHL.FEDEX.UPS.TNT...
4.Generally, what time the products can make delivery
In normal circumstances, the products can be delivered within two weeks.
5.Which shipment available?
Normally, we ship goods by sea,air and express. Special requirement also acceptable
By sea to your nearest sea port
. By air to your nearest air port
By express(UPS,DHL.FEDEX,TNT...) to your door
1) The length of dust filter bags can be customized.
2) If your dust filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag.
3) Please send us your inquiry specification detail by email for quotation, thanks my friends.
