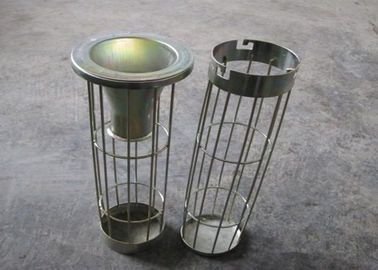

Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi

Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi

    • Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi
    • Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi
    • Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi
  • Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: bag filter cage

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: 7-15 days
    Payment Terms: T/T
    Supply Ability: 10000pcs per week
    Contact Now
    Detailed Product Description
    Color: Black,silver Surface Treatment: Galvannized Or Silicon Power Plated
    Material: Carbon Steel/SS304, 316, 316L Type Of Cage: Any Type
    Thickness: Φ3, 3.2, 3.5, 3.8, 4 Usage:: Dust Filter

    Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi





    Quick Detail:



    1. Ventury filter cages-ISO9001:2008 Certified
    2. Carbon or stainless steel
    3. Galnanized or silicon plated surface
    4. Any size





    Description:



    bag Filter cage with Zinc galvanized Surface Finish

    using the advanced hot-melt jointing technology. The jointing method of bag bottom, side and collar ring all are hot-melt welded, that can avoid the pinholes from seam filter bag.

    The Filter bag cage is a rib filter cage and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.



    1.Filter bag cage to be galvanized/silicon coating
    2.Carbon or Stainless steel
    3.ISO9001:2008 Certified
    5.Any length or dia.





    The filter bag cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.



    1.material of cage: carbon steel or SS304,316,316L

    2.type of cage: any style

    3.type of the horizontal bar: round ring or star or envelop or oval

    4.surface treatment: zinc-galvanization or silicon coating or epoxy

    5.style of connection: clamp, chuck, claw join connection

    6. Nos of wires: 8,10,12,16,20,24

    7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.





    The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.





    Specifications
    Types: Round Style/Flat Style/Envelope Style/ Special Style
    Number Of Wires: 8/10/12/16/20/24 vertical wires
    Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
    Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
    Wire thickness: Wire thickness ranges are 2mm to 5mm
    Material: Carbon Stee, Galvanized Steel, Stainless Steel
    Finishment: Epoxy, PVC vinyl coating
    Packaging: Cages are packed in custom designed cartons
    Usage: Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.

    Advantages: 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel
    4. economical maintenance(almost no Maintenance required)
    5.prominent effect in removing dust from Filter by pulsing 6.easy to install
    7.no ventury installation required
    Standard Technical Data
    Round Style Diameter(mm) Bag Diameter(mm) Length(mm)
    115 120 2000,2400 2800,
    3200,3600,4000,
    4400,4800,5200,
    5600,6000,7000


    125 130
    147 152
    195 200
    Flat Style Perimeter Bag Perimeter Length(mm)
    800 800 2000 3000 4000
    5000 6000


    900 900
    Envelope Style Length Width Thickness Bag Length Width Thickness
    1500X750x25mm

    1500X750x25mm







    Specification


    Goods Name

    Standard

    Description

    Goods Name

    Standard

    Description

    Clamps

    φ180



    Spring curb

    120*2

    Normal quenching steel belt

    φ230

    130*2

    φ250

    150*2

    φ260

    200*2

    φ292

    292*2

    φ300

    300*2

    Hoop

    φ160

     φ300-φ270 using wire rod ofφ4.2

    120*2.5

    φ170

    130*2.5

    φ180

    150*2.5

    φ200

    182*2.5

    φ210

    202*1.3

    Quenching stainless steel belt

    φ250

    φ180 using wire rod of  φ3.3

    127*1.5

    φ260

    127*1.9

    If it is highly corrosive, we can use titanium curb

    φ280

    130*2.5

    φ292

    φ260-φ180 using wire rod of φ3.8

    150*2.5

    φ300

    129.6*2.5

    φ400

    280*2

    φ615

    Pendant chain device

    Hung huang, pendant chain



    Cap

    180

    upper cap lower cap

    200

    230

    Venturi tube

    Carbon steel

    250

    Aluminum

    292

    Stainless steel

    300

    Unifying covering cap and  venturi tube(integration)

    Filter cage

    Material: hard-drawn wire

    Galvanization treatment

    Normal

    Yellow

    White zinc plated treatment

    High quality

    Light silver

    Organic silicon treatment



    Black

    Material: stainless steel

    201-316L



    Any special requirement and production can be processed according to buyer’s sample(with drawing)













































    Applications:



    Power Stations
    Filtered dust
    Flue ash, discharging flue ash
    Coal dust


    Building and Construction
    Cement, furnace dust, gypsum, limestone, finely ground quartz,
    Calcium hydroxide, lead monoxide, quicklime, acid crystals,
    Pure clay, phosphates, magnesite concentrate, finely ground
    fluorid, production of aluminum


    Chemical Industry
    Thomas meal (Fertilizer)
    Rubber compounds, sinter dust, catalysts
    Sodium sulfate
    Soap powder



    Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with VenturiFlat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with VenturiFlat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi



    FAQ

    Q1. What is your terms of payment?
    A: T/T will usually be accepted,details could be negotiated.



    Q2. What is your terms of delivery?
    A: FOB, CFR, CIF,EXW



    Q3. How about your delivery time?
    A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



    Q4. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings.



    Q5. What is your sample policy?
    A: we could offer the sample for free charge but do not pay the cost of freight.



    Q6. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery

    Q7: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
