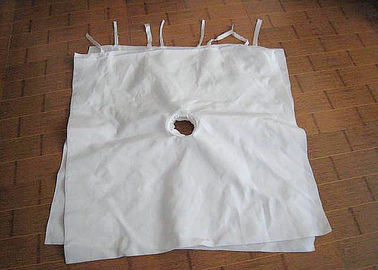

Filter Press Cloth woven filter fabric for filter press machine

Filter Press Cloth woven filter fabric for filter press machine

    • Filter Press Cloth woven filter fabric for filter press machine
    • Filter Press Cloth woven filter fabric for filter press machine
    • Filter Press Cloth woven filter fabric for filter press machine
  • Filter Press Cloth woven filter fabric for filter press machine

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: filter press cloth

    Payment & Shipping Terms:

    Minimum Order Quantity: 200m
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 10000pcs per week
    Contact Now
    Detailed Product Description
    Type:: Woven Filter Supply Type:: Make-to-order
    Application:: Chemical, Metallurgy, Food Etc. Finishing Treatment:: Canlendered
    Size:: Custiomized Usage:: Liquid Filter


    Filter Press Cloth woven filter fabric for filter press machine





    Quick Detail:



    a. Materials used: polypropylene, polyester


    b. working temperature: normal working temperature 88 celsius degree, 110 celsius degree peak working temperature.


    c. Weight standard:600g/m2, 650g/m2, 700g/m2, 800g/m2.etc. Completely dominated by customers.





    Specifications:



    Model material

    Weight

    (g/m2)

    Thickness

    (mm)

    Air permeability

    (l/m2.s)

    Breaking strength

    (N/5x20CM)

    Elongation

    (%)

    Density

    (pcs/10cm)

    weave
    warp weft warp weft Peak. Cont.
    PP 750A PP 450 0.79 26 3104 2663 38 30 222 154 PLAIN
    PP 750B PP 517 1.27 30 2608 2050 35 28 256 151 TWILL
    PP 750BB PP 740 1.40 8 10115 3030 35 30 582 110 SATIN
    PP 750AB PP 650 1.30 20 7800 5200 26 20 450 170 TWILL
    PP 4212 PP 380 1.07 123 2972 1942 24 37 236 123 TWILL
    PE 8222 PE 700 1.5 8 720 450         TWILL





    P0802Y zinc oxide (needle felt)
    T0803t potash fertilizer (needle felt)
    P120D/P050D/P080D/P020MD double layer monofilament filter cloth
    P050D, P030MD, P020MD FGD, Gypsum
    N9029 iron ore concentrate
    N199 iron ore concentrate
    P1010 iron ore concentrae
    P020MD iron ore concentrate
    9501-32 fly ash, coal ash
    9501-35 fly ash
    9501-34 zinc oxide
    P1010sdy zinc sulfate
    PT9502b-41DY gold mining,vanadium mine
    9502-40 borax, vanadium pentoxide
    PT9502b-31 gold
    P750AB copper
    P120/P190 phosphate
    MP11343Y copper
    9502-402DY iron sulfide
    9503-32 catalyst
    P190 Beer filtration
    P199s/P11636: Sugar filtration
    N120B Palm oil filtration, other oil, use anti-static filter cloth
    P1010-37DY Titanium Dioxide
    3233SY White carbon black
    3233SY/108C/P801IIy Kaolin
    T3112BY/3233SYY

    pigment, dyestuff





    Technical Data:





    MODEL.NO WEIFGT(g/m2) SPLITTING STRENGTH(N/5X20cm) SPLITTING AND ENLONGATION(%) AIR PERMEABILITY(mm/s) THICKNESS
    (mm)
    WARP WEFT WARP WEFT
    PA5815 540 5340 2258 28.7 24.6 818 0.85
    PA5136 590 7304 2550 37.8 26.5 619.4 1.00
    PA2214 280 3111 1825 25.8 24.2 2268.36 0.52
    PA2816 360 3585 2165 33.5 25.8 2239.12 0.65
    PA2815 350 3780 2456





    Material available:



    PET, PP, PA6, PA66 in monofilament, multifilament fabric, interwoven filter yarn

    Benefits:

    High dimensional stability,

    Good abrasion performance,

    Wide range of filter rate

    Efficient fabric cleaning





    Applications:



    Filter press, centrifuge, leaf filter, fluide bed dryer, Rotary/horizontal disc filter



    Chemical: Catalyst, cobalt carbonate, zinc oxide, zirconium carbonate, activated carbon, cobalt carbonate, borate, dyes and intermediates, iron oxide, nickle, salt, aluminum oxide, titanium dioxide, additives, glycerol, pesticides, white carbon black, zinc, calcium carbonate, etc.



    Mining: Red mud, tailings gold, potash fertilizer, vanadium ore, the end of coal, clean coal, clay, Kaolin clay, etc.



    Metallurgical: Gold, molybdenum, lead, vanadium, nickel, zinc, copper, tungsten, carbide slag, etc.



    Food: Fruite juice, suger, starch, sweetener, beer, etc.



    Environmental protection: Sewage treatment, slude dewatering, flue gas desulphurization, salt mud, fly ash, etc.
