Customized Woven Polyester Industrial Filter Bag for Juice Press Filtration

Customized Woven Polyester Industrial Filter Bag for Juice Press Filtration

    • Customized Woven Polyester Industrial Filter Bag for Juice Press Filtration
    • Customized Woven Polyester Industrial Filter Bag for Juice Press Filtration
    • Customized Woven Polyester Industrial Filter Bag for Juice Press Filtration
  • Customized Woven Polyester Industrial Filter Bag for Juice Press Filtration

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: industry filter bag

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 3000pcs per day
    Contact Now
    Detailed Product Description
    Material Of Bag: Nylon,non- Woven, PP, Polyester, Usage:: Liquid Filter, Air Filter,dust Filter
    Package:: Plastic Bag, OEM Package, Place Of Origin:: Zhejiang, China
    Sample: Ok Brand Name:: Philis

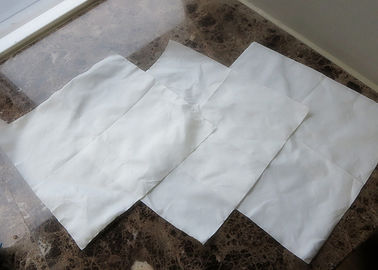

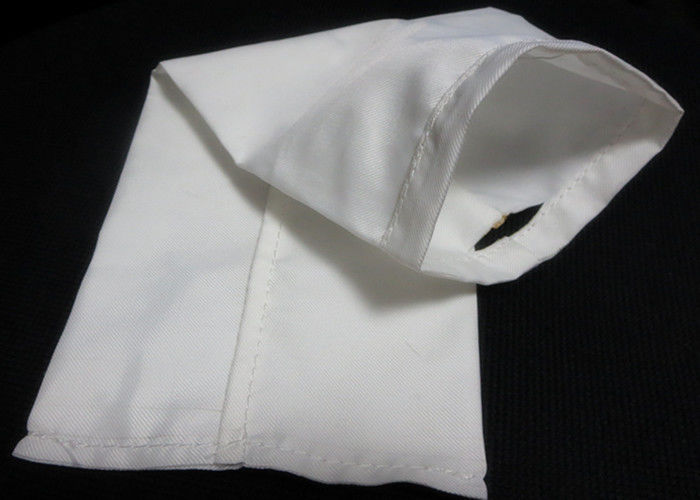

    Woven Polyester Industrial Filter Bag for Juice Press



    Quick Detail:



    1). High quailty
    2). Competitive price
    3). ISO certification
    4). Strict quality control





    1.Advantages:



    Acid and alkali resistance

    Good abrasion resistance

    Various specifications to choose

    Easy separation

    Competitive price





    2.Application:



    The Polyester Filter Fabrics possess the properties of strong acid-rsistance, fair alkali-resistance, and operating temperature 130. They can be widely used in pharmaceuticals, non-ferrous metals metallurgical and chemical industrials, in the equipments of frame filter presses, centrifuge filters, vacuum filters, etc. The filtering precision can reach less than 5 micron.





    3.Other similar products:



    Normal temperature products: PET, pp, anti-static, water and oil repellent, PET membrane, Acrylic. High temperature products: FMS, Aramid, PPS, PTFE, fiberglass, p84 fiber.

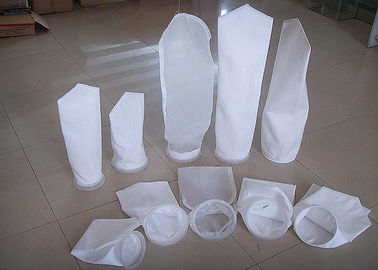

    General bag sizes:



      P1S P2S P3S P4S
    Diameter 7 inch (180mm) 7 inch (180mm) 4 inch (105mm) 4 inch (105mm)
    Length 17 inch (450mm) 32 inch(810mm) 9 inch (230mm) 15 inch (380 mm)
    Configurable PureSeal or SS collar PureSeal or SS collar PureSeal or SS collar PureSeal or SS collar
    Suitable SC25/SD25 model SC25/SD50 model SC10 model SC16 model





    Main Parameters:
    Material PE, PP, Acrylic,PPS,Milter, P84,Metamax. Glass fibre & FMS
    Temperature (130° C ) or high temperature (300° C).
    Technics Basic cloth & PTFE Membrane & water and oil repellent & Antistatic.
    Thickness: Around 1.6mm & according to customers requirement
    Air permeability: (30-400)L/M2/S at 200Pa according to different fabric
    Dimension: Normal with width in0.45m To 2.3m, length in 100m/roll or 50m/roll dominated by customers.
    Strength: up to(550N x 1800N) /(5x20cm) according to different fabric
    Color: Snow White, Yellow, Grey, black and so on
    Package : In inner polybag & outter woven polybag with paper tube inside the axis Carton with bags in any dimension.





    Nonwoven dust filter bag Continuous Temperature Peak Temperature Description Resistance to Acids Resistance to Alkalis Resistance to Oxidation PH Value
    Polypropylene 90°C 100°C PP excellent excellent restricted 1-14
    Polyacrylyitrile Homopolymer 125°C 140°C DT good good good 3-11
    Polyester 130°C 150°C PE restricted moderate good 4-12
    Polyphenylensulfide 190°C 200°C PPS excellent excellent moderate 1-14
    Nomex 204°C 250°C Nomex good excellent good 3-14
    Polymide 260°C 300°C P84 good moderate good 3-13
    Polytertrafluoroethylene 250°C 280°C PTFE excellent excellent excellent 1-14
    Glass fiber 260°C 300°C BQ good good good 3-11





    Customized Woven Polyester Industrial Filter Bag for Juice Press FiltrationCustomized Woven Polyester Industrial Filter Bag for Juice Press FiltrationCustomized Woven Polyester Industrial Filter Bag for Juice Press Filtration





    Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



    Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



    The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
