Woven Fiberglass Micron Filter Fabric with Graphite Treatment

Woven Fiberglass Micron Filter Fabric with Graphite Treatment

    • Woven Fiberglass Micron Filter Fabric with Graphite Treatment
    • Woven Fiberglass Micron Filter Fabric with Graphite Treatment
    • Woven Fiberglass Micron Filter Fabric with Graphite Treatment
  • Woven Fiberglass Micron Filter Fabric with Graphite Treatment

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: glassfiber filter cloth

    Payment & Shipping Terms:

    Minimum Order Quantity: 100m
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 10000m per week
    Contact Now
    Detailed Product Description
    Width:: 1m, 1.25m, 2m Color:: White Or Black
    Length:: 100m,150m,200m, Etc Sample:: Free
    Material: Fiberglass Weave Type:: Plain, Twill, Double Twill

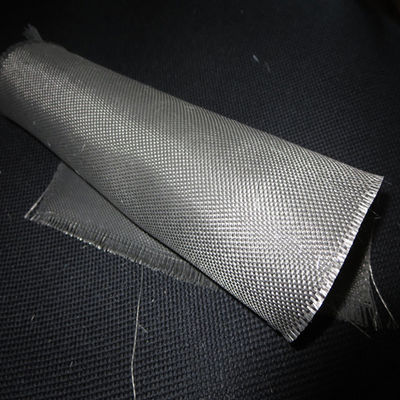

    Woven Fiberglass Micron Filter Fabric with Graphite Treatment





    Quick Detail:



    High filtration efficiency ,long service life

    Good anti-abrasion

    High temperature grade

    Anti - acid ,anti - alkali, chemical resistance

    High porosity ,good air permeability

    Good price quality

    Laminated compound,grads counterchange





    Description:



    Glass fiber filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.





    Specifications:



    Type of glass: E-glass and c-glass .

    Area weight: 200g/m2-1200g/m2

    Width: 150mm-3000mm



    Product No.

    Warp Tex

     Wwft Tex

     Warp Density

      Ends/cm

     Woft Density

      Ends/cm

    Range G/m2

     EWR260

     600

     600

     22

     22

     251-277

     EWR300

     600

     600

     32

     18

     296-328

     EWR400

     600

     900

     32

     23

     380-420

     EWR500

     1200

     1200

     22

     20

     475-525

     EWR600

     2200

     1200

     20

     16

     600-664

     EWR800

     2400

     2400

     20

     16

     820-908

     EWR1200

     4000*2

     4400

     8

     14

     1190-1320

     EWR1200

     2400*2

     2400*2

     14

     12

     1190-1310



    Note: The chart above indicates the standard items which are available from stock, other specification available upon request.



    Notices:



    glass fiber needle felt is one kind of high temperature resistant filter material with reasonable structure and excellent performance, it could be high temperature resistant,anti-abrasion,stable size,little elongation shrinkage ratio,high intension,also ultimate fiber of felt layer fiber,three dimensional micro pore structure,high porosity,small filter resistance to gas,it has higher speed and efficiency,Comparing with other high temperature resistant chemical fiber felt,it has the advantage of lower price,high temperature resistant,but due to high resistance, filtering efficiency is lower





    Applications:



    Chemical plant Cement plant

    Steel iron plant Melting plant

    Carbon black plant Electricity Industry



    Woven Fiberglass Micron Filter Fabric with Graphite TreatmentWoven Fiberglass Micron Filter Fabric with Graphite TreatmentWoven Fiberglass Micron Filter Fabric with Graphite Treatment



    Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



    Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



    The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
