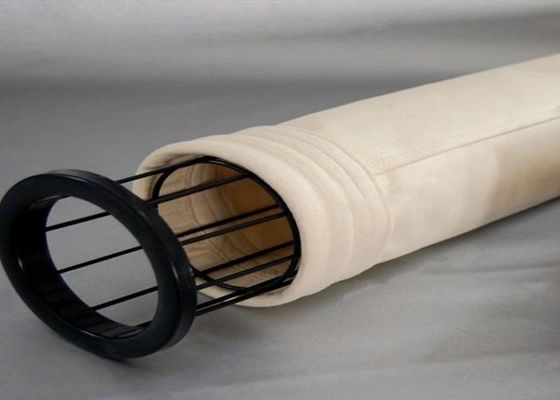

Fiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFE

Fiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFE

    • Fiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFE
    • Fiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFE
    • Fiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFE
  • Fiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFE

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO, CE
    Model Number: Philis

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 meters
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 10000 meters per week
    Contact Now
    Detailed Product Description
    Material: Pe, Nomex, FMS, PPS, Fiberglass And So On Color: White, Yellow, Grey
    Size: According To Your Requires Temperature: 90-300 Degree Celsius
    Micron Rating: 0.5um ~800um Certification: ISO, CE



    Fiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFE



    Quick Detail:

    Material : PP or PE,polyester, polypropylene
    Micron rating : 0.5um ~800um
    Good anti abrasion
    High temperature grade
    Anti acid ,anti alkali, chemical resistance
    High porosity ,good air permeability
    Laminated compound,grads counterchange


    Description:

    Low temperature resistance ( 88-110 ℃)
    Excellent resistant to hydrolysis, acids and alkalies.
    Smooth surface, more defined pore size and good air permeability
    Lower fiber release, Lower density,High mechanical characteristics


    Specifications:

    Different fiber material are used to produce filter fabric and filter bags, such as Polyster(PET),
    Polypropylene(PP), PPS, Polyimide(P84), Glassfiber, Acrylic, Aramid, PTFE, etc. Of course we offer fabirc or filter bags which is a composite of different material according to customer's demands. The size and model also can be customized.




    Technical data:



    Article name

    cement dust collector filter bag

    Fiber material

    PET, acrylic, nomex, PPS, P84, glassfiber, PTFE

    Weight(g/m2)

    accroding to material

    Thickness(mm)

    accroding to material

    Air permeability(m3/m2.min)

    accroding to material

    Work temp(℃)

    continuous

    accroding to material

    peak

    accroding to material

    Tensile strength(N/5×20cm)

    Warp

    >900

    weft

    >1200

    Break elongation(%)

    Warp

    <35

    weft

    <50

    Thermal shrinkage(%)

    Warp

    ≤1.5

    weft

    ≤1

    Finish

    heat setting, singeing, calendering, soak with PTFE









    Model No.
    Material
    Weight
    Thickness
    Breaking strength
    Using temperature


    g/m2
    mm
    vertically
    horizontally
    polyester needle felt
    polyester fibre
    400-650
    1.7-2.05
    900-1140
    1100-2000
    ≤130
    polypropylene needle felt
    polypropylene fibre
    400-650
    1.8-2.6
    950-1500
    900-1400
    ≤130
    anti-static needle felt

    polyester fibre

    electric fibre

    400-600
    1.6-2.4
    1000-1400
    800-1200
    ≤130
    water and oil replelient needle felt

    polyester fibre

    teflon coating

    400-600
    1.4-1.9
    900-1140
    1100-2000
    ≤130
    FMS needle felt
    high temperature resisting fibre
    >800
    1.8
    1600
    1400
    ≤260
    metamax needle felt
    metamax fibre
    500
    2.3
    1000
    900
    ≤204
    PPS needle felt
    poly-p-propylence
    500-550
    2.0
    ≥800
    ≥1200
    ≤170
    PTFE coated needle felt

    polyester fibre or metamax needle felt

    PTFE coating

    400-650
    1.4-2.3


    ≤260
    P84
    P84 fiber
    500



    ≤260
    fiberglass
    glass fiber
    900



    240



    Advantages

    1. dust collector filter bag are carefully fabricated and sized to ensure ease of installation and
    change-out.
    2. dust collector filter bags are designed to be mounted and gasketed firmly into place with a snap band, corded cuff, or clamp to ensure dust tight seal.
    3. Various coatings and finishes can be applied to either side of the dust collector bag to enhance cleaning and efficiencies, as well as prolonging service life.
    4. Groundwire, anti-collapse rings and other options can be easily incorporated into bag construction.





    Notices:

    1. Materials avaliable: polyester, polypropylene
    2. construction: welded or sewn
    3. collar type: steel ring or plastic ring
    4. finishing treatment: singed, calendared, heat set
    5. Size available: standard and custom size.


    Application fields:

    1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations

     2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals

    3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers

    4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics

    5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster

    6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.

    Fiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFEFiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFE

    Fiberglass Dust Collector Filter Bag Polyester Acrylic NOMEX PPS P84 PTFE

    Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

    Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

    The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
