Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System

Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System

    • Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System
    • Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System
    • Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System
  • Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: needle felt filter

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 100000m per week
    Contact Now
    Detailed Product Description
    Shape:: Round Pipe Usage:: Liquid Filter
    Material:: Polyester Coated With TPU Membrane Bag Size:: Customized
    Technics:: Nowoven Needle Punched Place Of Origin:: Zhejiang, China



    Needle Punched Felt Filter Coated with White Color TPU Membrane CIPP System




    Quick Detail:

    Normal temperature flue gas filtration felt
    100% polyester
    1.5mm to 3mm thickness
    Weight from 350 to 800s
    Width 2.1 meter maximum
    High porosity ,good air permeability
    Good price quality
    Laminated compound,grads counterchange


    Description:

    High efficiency of removing dust particle
    Easy clear and long useful life
    Smooth surface after Singeing,Heat setting,Calendering.


    Performance parameters:



    Weight(g/m2) 500~550
    Thickness(mm) 2.3~2.5
    Air permeability(m3/ m2/min) 18~13

    Tension at break
    (N/5×20cm)

    Warp >900
    Weft >1200

    Elongation at break
    (%)

    Warp <35
    Weft <50

    Working temperature
    (℃)

    Continuous 130
    Instantaneous 150
    Anti-acid Good
    Anti-alkali Common
    Anti-abrasion Good
    Post treatment Thread burning,surface smoothing or coating etc




















    Fibre Types Continuous operating temp*

    Designation

    Resistance to Hydrolysis Resistance to Acids Resistance to Alkalis Resistance to Oxidation
    Polypropylene 90℃-95℃ PP excellent excellent excellent restricted
    Polyacrylnitrile homopolymer 125℃-140℃ AC good good moderate good
    Polyester 110℃-130℃ PE restricted moderate restricted good
    Polyphenylene sulfide 190℃-200℃ PPS excellent excellent excellent restricted
    m-Aramide 200℃-220℃ NO moderate moderate moderate moderate
    Polyimide 240℃-260℃ P84 good moderate moderate good
    Polytetrafluorethylene 250℃-280℃ PTFE excellent excellent excellent excellent




    Specifications

    polyester needle punched filter cloth
    1.PET fiber&PET scrim
    2.Antistatic etc. treatment are available
    3.For filter bag etc.



    polyester needle punched filter cloth


    1) It is a normal temperature filtration material with rational structure and superior performance.
    2) Material: 100% polyester fibre
    3) Weight (gsm): 500
    4) Thickness (mm): 1.8
    5) Tensile strength (n/5x10cm): (warp) 1,900, (weft) 2,150
    6) Tensile elongation (%): (warp) <50, (weft) <55
    7) Permeability (10-3cbm/sqm.S): 150~350
    8) Working temperature: (continuance) 130°C, (instant) 150°C
    9) Surface treatment: singeing, heat setting.
    .Filter Cloth,Polyester Needle Felt,filter fabric




    Applications:

    Chemical processing:dryers in the pigment,plastic and catalyst industries
    Minerals processing:dryers and finish mills in the cement industry
    Metal processing:process collectors in the lead,primary base metal,and foundry industries


    Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP SystemNeedle Punched Felt Filter Coated With White Color TPU Membrane CIPP SystemNeedle Punched Felt Filter Coated With White Color TPU Membrane CIPP System




    FAQ

    1. Payment
    30% TT advance and balance 70% before shipment.


    2. Shipping
    By sea or by air


    3. MOQ
    MOQ varies for different product, some products have no request on MOQ.


    4. Lead Time
    In general, within 15 days after payment.


    5. Samples
    We can offer samples according to customers requirements.


    6. Quality
    We have engineers and technicians carry out quality control.

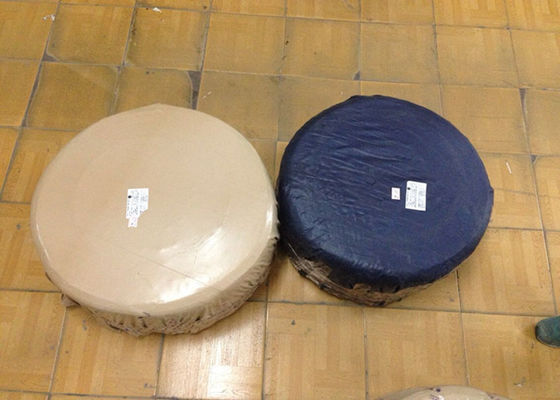

    7. Packing
    Normally, our products are packed with polybag, woven bag and carton.
