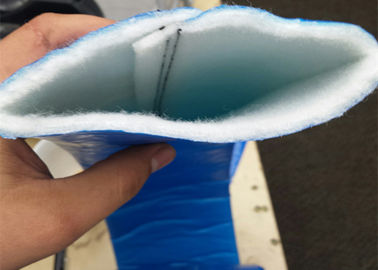

Needle Punched Felt Filter Coated With Blue Color TPU Membrane CIPP System

Needle Punched Felt Filter Coated With Blue Color TPU Membrane CIPP System

    • Needle Punched Felt Filter Coated With Blue Color TPU Membrane CIPP System
    • Needle Punched Felt Filter Coated With Blue Color TPU Membrane CIPP System
  • Needle Punched Felt Filter Coated With Blue Color TPU Membrane CIPP System

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: needle felt filter

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 100000m per week
    Contact Now
    Detailed Product Description
    Type:: Non-woven Filter Usage:: Liquid Filter
    Material:: Polyester Needle Punched Felt Bag Size:: Customized
    Technics:: Nowoven Needle Punched Function:: CIPP



    Needle Punched Felt Filter Coated with White Color TPU Membrane CIPP System





    Quick Detail:



    Normal temperature flue gas filtration felt

    100% polyester

    1.5mm to 3mm thickness

    Weight from 350 to 800s

    Width 2.1 meter maximum

    High porosity ,good air permeability

    Good price quality

    Laminated compound,grads counterchange





    Description:



    High efficiency of removing dust particle

    Easy clear and long useful life

    Smooth surface after Singeing,Heat setting,Calendering.





    Specifications:



    Material Polyester Fiber /Polyester scrim
    Weight(g/m2) 400 450 500 550 600
    Thickness(mm) 1.4 1.6 1.8 2.0 2.2
    Air Permeability(m3/m2/min) 21 18 16 13 12

    Tensile strength

    (n/5 x 20cm)

    Warp >1000 >1000 >1100 >1100 >1150
    Weft >1350 >1400 >1500 >1550 >1600
    Elongation (%) Warp < 25 < 25 < 25 < 25 < 25
    Weft < 45 < 45 < 45 < 45 < 45

    Working

    temperature(℃)

    Continues ≤130 ≤130 ≤130 ≤130 ≤130
    Instant 150 150 150 150 150
    Finishing Treatment Singeing,Het setting,Calendering




































    Fibre Types Continuous operating temp*

    Designation

    Resistance to Hydrolysis Resistance to Acids Resistance to Alkalis Resistance to Oxidation
    Polypropylene 90℃-95℃ PP excellent excellent excellent restricted
    Polyacrylnitrile homopolymer 125℃-140℃ AC good good moderate good
    Polyester 110℃-130℃ PE restricted moderate restricted good
    Polyphenylene sulfide 190℃-200℃ PPS excellent excellent excellent restricted
    m-Aramide 200℃-220℃ NO moderate moderate moderate moderate
    Polyimide 240℃-260℃ P84 good moderate moderate good
    Polytetrafluorethylene 250℃-280℃ PTFE excellent excellent excellent excellent








    Notices:



    Polyester felt can be produced by ordinary staple scrim or high strength filament scrim, due to the customer demands,weight ranges from 350 g/m2 to 800 g/m2.

    1. working temperature: no higher than 150 degree celsius

    2. specialties: puffy fiber structure & high air permeability & repeat dust caption feature & better dust holding capacity; low fiber loss & no liquid contamination, long durability, low filtration resistance & liquid pressure dropping.

    3. techiniques used: needle punching & singing & press polish technique.

    4. width: dominated by customers within 2.2m





    Feature

    1. High anti-compaction capacity.
    2. Extremely high elasticity and recoverability.
    3. Strong drainability abd larger void volumn.
    4. Long holding time of wear resistance and plastic strength of felt.
    5. Smooth felt surface and even pressure distribution.





    Applications:



    Chemical processing:dryers in the pigment,plastic and catalyst industries

    Minerals processing:dryers and finish mills in the cement industry

    Metal processing:process collectors in the lead,primary base metal,and foundry industries





    Needle Punched Felt Filter Coated With Blue Color TPU Membrane CIPP System

    Needle Punched Felt Filter Coated With Blue Color TPU Membrane CIPP SystemNeedle Punched Felt Filter Coated With Blue Color TPU Membrane CIPP System





    FAQ

    1. Payment
    30% TT advance and balance 70% before shipment.


    2. Shipping
    By sea or by air


    3. MOQ
    MOQ varies for different product, some products have no request on MOQ.


    4. Lead Time
    In general, within 15 days after payment.


    5. Samples
    We can offer samples according to customers requirements.


    6. Quality
    We have engineers and technicians carry out quality control.


    7. Packing
    Normally, our products are packed with polybag, woven bag and carton.
