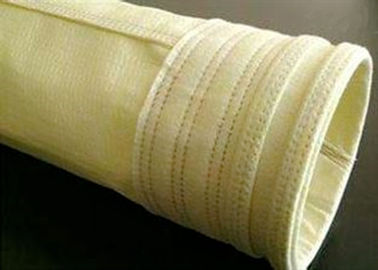

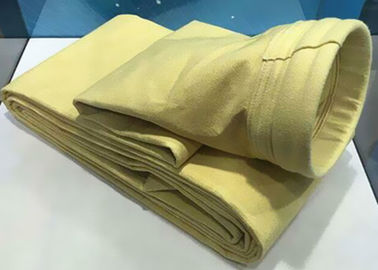

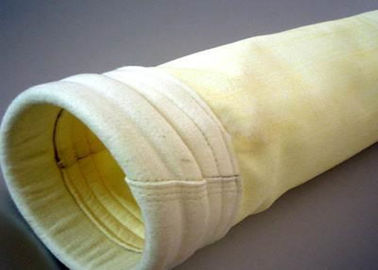

FMS High Temperature Filter Bag For Cement Plant 130*5200mm With PTFE Membrane Coated

FMS High Temperature Filter Bag For Cement Plant 130*5200mm With PTFE Membrane Coated

    • FMS High Temperature Filter Bag For Cement Plant 130*5200mm With PTFE Membrane Coated
    • FMS High Temperature Filter Bag For Cement Plant 130*5200mm With PTFE Membrane Coated
    • FMS High Temperature Filter Bag For Cement Plant 130*5200mm With PTFE Membrane Coated
  • FMS High Temperature Filter Bag For Cement Plant 130*5200mm With PTFE Membrane Coated

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: FMS filter fabric

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 10000m per week
    Contact Now
    Detailed Product Description
    Working Temp: 260-300 Deg C Material Of Bag: FMS
    Usage:: Dust Filter Type:: Pocket Filter
    Place Of Origin:: Zhejiang China (Mainland) Brand Name: Philis

    FMS high temperature filter bag for cement plant 130*5200mm with PTFE membrane coated





    Quick Detail:



    High filtration efficiency ,long service life

    Good anti abrasion

    High temperature grade

    Anti acid ,anti alkali, chemical resistance

    High porosity ,good air permeability

    Good price quality

    Laminated compound,grads counterchange





    Description:



    FMS / FNS filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.





    Specifications:



    Fiber fiberglass staple fiber,P84 fibre,Nomex fiber
    Scrim Fibergalss Scrim
    Weight(gsm) 800
    Thickness(mm) 2.5
    Width(mm) ≤2.2m
    Finish treatment Singeing, Calendering,Heat setting
    Air permeability(L/m2.s) 200-300
    Tensile strength(N/5cm) warp ≥3260
    weft ≥3300

    Tensile

    elongation(%)

    warp ≤10
    weft ≤15
    Temperature(°C) Continue 260
    Instant 300





    Item Unit Parameter
    Material Face:glassfiber mix P84 Scrim:GL
    Grammas Per Square Meter g/m2 850±5%
    Thickness mm 2.0±0.2
    Air Permeability(200Pa) L/dm2.min 200~250
      Cont 260
    Temperature Resistance Peaks 280
      Warp N/50*200mm ≥2800
    Minimum Breaking Strength Weft ≥2800
      Warp % ≤10
    Elongation at Break Weft ≤10
    Surface Design Treatment Singeing,Calendering,Heat-set,PTFE treatment
    Using Scope Cement klin head and tail ,Steel,Blast furnace gas





    Notices:



    FMS / FNS needle felt is one kind of high temperature resistant filter material with reasonable structure and excellent performance,it could be high temperature resistant,anti-abrasion,stable size,little elongation shrinkage ratio,high intension,also ultimate fiber of felt layer fiber,three dimensional micro pore structure,high porosity,small filter resistance to gas,it has higher speed and efficiency,Comparing with other high temperature resistant chemical fiber felt,it has the advantage of lower price,high temperature resistant,but due to high resistance, filtering efficiency is lower.





    Applications:



    Chemical plant Cement plant

    Steel iron plant Melting plant

    Carbon black plant Electricity Industry



    Others:



    We can supply following non-woven filter fabric:
    1) Normal temperature resistant needle punched felt (PP, PET)
    2) High temperature resistant needle punched felt (PPS, Fiberglass, P84, FMS)
    3) Antistatic felt:
    A) Blended polyester anti-static needle punched felt
    B) Basic scrim anti-static needle punched felt
    C) Blended polyester anti-static needle punched felt with anti-static basic scrim
    4) Water and Oil Repellent Felt (PET)
    5) PTFE Coated Felt(PP+PTFE, PET+PTFE)
    6) Liquid Filtration Needle Punched Felt (PP,PET)

    For more details,please contact me freely.





    FMS High Temperature Filter Bag For Cement Plant 130*5200mm With PTFE Membrane Coated



    FMS High Temperature Filter Bag For Cement Plant 130*5200mm With PTFE Membrane CoatedFMS High Temperature Filter Bag For Cement Plant 130*5200mm With PTFE Membrane Coated





    FAQ

    Q1: How long is the warranty?
    -one year warranty and free cunsultaion during the period of use.
    Q2: what about sample?
    -free sample is available.
    Q3: how to pay for my product?
    -30%T/T as deposit, 70% balance before delivery, and Western union is available.
