Nonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration media

Nonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration media

    • Nonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration media
    • Nonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration media
    • Nonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration media
  • Nonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration media

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: needle felt filter

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 meters
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 100000m per week
    Contact Now
    Detailed Product Description
    Filtration Grade:: Hepa Filter Function:: Non Woven Fabric Air Filter
    Application:: Dust Collect Description Of Goods:: Dust Collector Filter Bag & Cloth
    Technics:: Nowoven Needle Punched Certificate:: ISO9001:2008

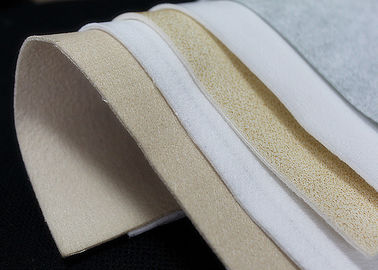

    Nonwoven Needle Felt Filter Cloth for Dust Collector Bag, filtration media





    Quick Detail:



    Normal temperature flue gas filtration felt

    100% polyester

    1.5mm to 3mm thickness

    Weight from 350 to 800s

    Width 2.1 meter maximum

    High porosity ,good air permeability

    Good price quality

    Laminated compound,grads counterchange





    Description:



    High efficiency of removing dust particle

    Easy clear and long useful life

    Smooth surface after Singeing,Heat setting,Calendering.





    PTFE Felt Features:


    Material: PTFE fiber/PTFE long thread scrim


    Weight: 630gsm-950gsm


    Thickness: 0.81mm-1.12mm


    Tensile strength (n/5 x 20cm): a) Warp: 750 b) Weft: 980


    Tensile elongation: a) Warp: <25% b) Weft: <20%


    Permeability (10-3m3/m2.S): 100 - 200


    Working temperature: a) Continuous: 240 b) Instant: 300


    Surface treatment: singeing, heat setting,PTFEcoating,membrane.




    PTFE material also called Teflon material,with a good performance in the temperature of 240 centigrade,the instant temperature can up to 260 centigrade. PTFE is a special material with a good alkali and acid resistance,non-hygroscopic,stable physical dimension, mainly used in coal burning boiler,waste incineration,carbon black producing,Tio2 producing for fume treatment or dust collection.




    Product Parameters




    Fiber Name



    ptfe fiber
    Weight(g/m2)
    750-800
    Thickness(mm)
    1.8-2.0



    Air permeability (m3/m2/min)
    5-8
    Working temperature (Degree C)
    240-260
    Width(m)
    <2.2m
    Surface treatment
    Heat-set and singed one side
    Break strength(N/5cm)
    Warp≥900 Weft≥1200
    Break elongation(%)
    Warp≥35 Weft≥50
    Resistance to acid
    Excellent
    Resistance to alkali
    Excellent
    Resistance to hydrolysis
    Excellent
    Resistance to oxidation
    Excellent






    Fibre Types Continuous operating temp*

    Designation

    Resistance to Hydrolysis Resistance to Acids Resistance to Alkalis Resistance to Oxidation
    Polypropylene 90℃-95℃ PP excellent excellent excellent restricted
    Polyacrylnitrile homopolymer 125℃-140℃ AC good good moderate good
    Polyester 110℃-130℃ PE restricted moderate restricted good
    Polyphenylene sulfide 190℃-200℃ PPS excellent excellent excellent restricted
    m-Aramide 200℃-220℃ NO moderate moderate moderate moderate
    Polyimide 240℃-260℃ P84 good moderate moderate good
    Polytetrafluorethylene 250℃-280℃ PTFE excellent excellent excellent excellent






    Notices:



    Filter material for high temperature

    1. materials available: pps (Ryton / polyphenylene sulfide), Nomes, Glass fiber etc.

    2. working temperature: no lower than 160 degree celsius.

    3. specialties: strong acid resistance, good stability, high filtering efficiency

    4. techniques used: needle punching & other stability, high filtering efficiency



    Main product: Dust filtration,liquid filter filtration and related machines

    1. Dust filtration-----filter bag and filter felt


    Polyester filter bag,polyester antistatic filter bag,polyester filter bag blending,polyester filter bag with membrane,polyester filter bag water and oil repellent,polyester filter bagspecial type,pp filter bag,aramid filter bag pps filter bag acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84filter bag,HST filter bag,fiberglass filter bag,PTFE mix pps filter bag,Basalt filter bag and polyester needle punched felt,acylic felt,aramid felt,P84 felt so on.



    2. Liquid filtration filter bag



    Polyester filter bag, PE filter bag, Micro filter bag,5 micro filter bag,10 micro filter bags,PP filter bag,nylon filter bag,ptfe filter bag,stainsteel filter bag and micro filter felt from 0.2micro to 600micro and so on.



    3. Machines for making dust filter bags



    Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing

    machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.



    Usagae/Occasion

    Filter bag can be used for industrial filtration,product filtration,solid/liquid separation, like:
    - Asphalt mixing plants
    - Biomass power stations
    - Chemical and pharmaceutical industry
    - High temperature dedusting
    - Coal-fired power stations
    - Food industry
    - Non-ferrous metal and steel production
    - Cement, gypsum and lime industry
    - Thermal waste treatment

    Nonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration mediaNonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration mediaNonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration media



    Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



    Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



    The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
