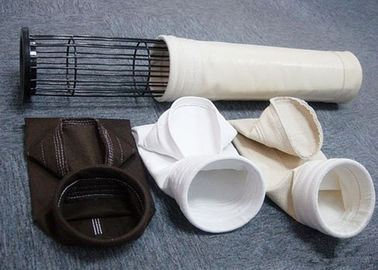

Stainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag Cage

Stainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag Cage

    • Stainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag Cage
    • Stainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag Cage
    • Stainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag Cage
  • Stainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag Cage

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: bag filter cage

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: 7-15 days
    Payment Terms: T/T
    Supply Ability: 10000pcs per week
    Contact Now
    Detailed Product Description
    Color: Black, Silver Surface Treatment: Galvannized Or Silicon Power Plated
    Material: Carbon Steel/SS304, 316, 316L Type Of Cage: Any Type
    Thickness: Φ3, 3.2, 3.5, 3.8, 4 Name:: Filtration Bag Cage Dust Filter Bag Cage

    Stainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag Cage





    Quick Detail:



    1.Filter bag cage to be galvanized/silicon coating
    2.Carbon or Stainless steel
    3.ISO9001:2008 Certified
    5.Any length or dia.





    Description:



    bag Filter cage with Zinc galvanized Surface Finish

    using the advanced hot-melt jointing technology. The jointing method of bag bottom, side and collar ring all are hot-melt welded, that can avoid the pinholes from seam filter bag.

    The Filter bag cage is a rib filter cage and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.





    Specifications:



    Ventury filter cages



    The ventury filter cages from China manufacturer is a rib of a filter bag and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.



    1.material of cage: carbon steel or SS304,316,316L

    2.type of cage: any style

    3.type of the horizontal bar: round ring or star or envelop or oval

    4.surface treatment: zinc-galvanization or silicon coating or epoxy

    5.style of connection: clamp, chuck, claw join connection

    6. Nos of wires: 8,10,12,16,20,24

    7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.



    The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.



    The thichkness of the longitudinal wire can be Φ3, 3.2, 3.5, 3.8, 4.





    Notices:



    We make filter cages of different shapes and dimensions to meet customers’ requirements. To supply with perfect testing for our products. Our cost is under utmost lower control because of our assembly line production. Precise, pragmatic and prudent working styles are adopted in every working procedure at CNP. We are highly responsible for every product component In addition, advanced manufacture equipment and scientific management made each finished product become the first selection of customers. By offering reliable assurance to integrate product quality with international standards with advanced equipment and technology, Professional production of dust cage skeleton, and can also design, develop, and manufacture as the clients request.





    Specification

    Specifications
    Types: Round Style/Flat Style/Envelope Style/ Special Style
    Number Of Wires: 8/10/12/16/20/24 vertical wires
    Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
    Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
    Wire thickness: Wire thickness ranges are 2mm to 5mm
    Material: Carbon Stee, Galvanized Steel, Stainless Steel
    Finishment: Epoxy, PVC vinyl coating
    Packaging: Cages are packed in custom designed cartons
    Usage: Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.

    Advantages: 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel
    4. economical maintenance(almost no Maintenance required)
    5.prominent effect in removing dust from Filter by pulsing 6.easy to install
    7.no ventury installation required
    Standard Technical Data
    Round Style Diameter(mm) Bag Diameter(mm) Length(mm)
    115 120 2000,2400 2800,
    3200,3600,4000,
    4400,4800,5200,
    5600,6000,7000


    125 130
    147 152
    195 200
    Flat Style Perimeter Bag Perimeter Length(mm)
    800 800 2000 3000 4000
    5000 6000


    900 900
    Envelope Style Length Width Thickness Bag Length Width Thickness
    1500X750x25mm

    1500X750x25mm







    Goods Name

    Standard

    Description

    Goods Name

    Standard

    Description

    Clamps

    φ180



    Spring curb

    120*2

    Normal quenching steel belt

    φ230

    130*2

    φ250

    150*2

    φ260

    200*2

    φ292

    292*2

    φ300

    300*2

    Hoop

    φ160

     φ300-φ270 using wire rod ofφ4.2

    120*2.5

    φ170

    130*2.5

    φ180

    150*2.5

    φ200

    182*2.5

    φ210

    202*1.3

    Quenching stainless steel belt

    φ250

    φ180 using wire rod of  φ3.3

    127*1.5

    φ260

    127*1.9

    If it is highly corrosive, we can use titanium curb

    φ280

    130*2.5

    φ292

    φ260-φ180 using wire rod of φ3.8

    150*2.5

    φ300

    129.6*2.5

    φ400

    280*2

    φ615

    Pendant chain device

    Hung huang, pendant chain



    Cap

    180

    upper cap lower cap

    200

    230

    Venturi tube

    Carbon steel

    250

    Aluminum

    292

    Stainless steel

    300

    Unifying covering cap and  venturi tube(integration)

    Filter cage

    Material: hard-drawn wire

    Galvanization treatment

    Normal

    Yellow

    White zinc plated treatment

    High quality

    Light silver

    Organic silicon treatment



    Black

    Material: stainless steel

    201-316L



    Any special requirement and production can be processed according to buyer’s sample(with drawing)



















































































    Applications:



    Power Stations
    Filtered dust
    Flue ash, discharging flue ash
    Coal dust
    Building and Construction
    Cement, furnace dust, gypsum, limestone, finely ground quartz,
    Calcium hydroxide, lead monoxide, quicklime, acid crystals,
    Pure clay, phosphates, magnesite concentrate, finely ground
    fluorid, production of aluminum
    Chemical Industry
    Thomas meal (Fertilizer)
    Rubber compounds, sinter dust, catalysts
    Sodium sulfate
    Soap powder





    Stainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag CageStainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag Cage

    Stainless Steel 304, 316 Bag Filter Cage Industrial Air Collector Filter Bag Cage







    Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



    Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



    The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
