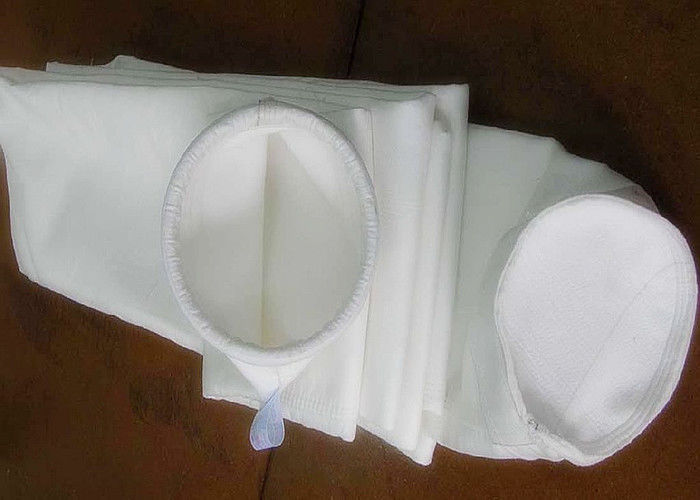

Nonwoven / Woven Glass Fiber Filter Cloth Industrial Liquid Filter Bag

Nonwoven / Woven Glass Fiber Filter Cloth Industrial Liquid Filter Bag

    • Nonwoven / Woven Glass Fiber Filter Cloth Industrial Liquid Filter Bag
    • Nonwoven / Woven Glass Fiber Filter Cloth Industrial Liquid Filter Bag
    • Nonwoven / Woven Glass Fiber Filter Cloth Industrial Liquid Filter Bag
  • Nonwoven / Woven Glass Fiber Filter Cloth Industrial Liquid Filter Bag

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: glassfiber filter cloth

    Payment & Shipping Terms:

    Minimum Order Quantity: 100m
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 10000m per week
    Contact Now
    Detailed Product Description
    Usage:: Powder Filter Material:: Fiberglass
    Model Number:: Glass Fiber Fabric Technics:: Nowoven Needle Punched
    Efficiency:: 99.9% Working Temperature:: 130 - 260 Degree

    Nonwoven / Woven Glass Fiber Filter Cloth for Industry Filter Material



    Quick Detail:





    High filtration efficiency ,long service life

    Good anti abrasion

    High temperature grade

    Anti - acid ,anti - alkali, chemical resistance

    High porosity , good air permeability

    Good price quality

    Laminated compound,grads counterchange





    Description:



    Glass fiber filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.





    Specifications:



    Glass fiber filter felt Technical parameters



    Type ZLN-BX-01(Single side web) ZLN-BX-02(Double side web)
    Weight(g/m2) 800 900
    Air permeability(m2m2/min) 9~18 8~15
    Tensile strength (N/5×20cm) Warp >1850 >1800
    Weft >1600 >1800
    Tensile Elongation (%) Warp <10 <10
    Weft <10 <10
    Broken strength(Mpa/min) 3.1 3.0
    Working temperature(°C) 260~280 260~280
    Anti-acid Excellent Excellent
    Anti-alkali Medial Medial
    Anti-abrasion Bad Bad
    The stability of water solution Medial Medial
    Finishing treatment Teflon treatment Teflon treatment





    Glass Fiber Finished filter cloth specification:



    The technical data of E-glass fiber bulked yarn fabric with PTFE membrane
    Article Name E-glass fiber bulked yarn fabric with PTFE membrane
    Ingredients Fiber Glass fiber yarn
    Scrim Glass fiber bulked yarn
    Weight g/m2 750
    Thickness mm 0.8
    Permeability L/dm2.min 20-40
    Tensile breaking strength(N/5cm) Warp 2300
    Weft 1900
    Textured type Satin weave
    Maximum shrink of 30 mins Temperature(°C) 260
    % <1
    Service Temperature(°C) Continuous 260
    Instant 280
    Finishing PTFE membrane
    Application Cement, kiln head, kiln tail













































    Notices:



    glass fiber needle felt is one kind of high temperature resistant filter material with reasonable structure and excellent performance,it could be high temperature resistant,anti-abrasion,stable size,little elongation shrinkage ratio,high intension,also ultimate fiber of felt layer fiber,three dimensional micro pore structure,high porosity,small filter resistance to gas,it has higher speed and efficiency,Comparing with other high temperature resistant chemical fiber felt,it has the advantage of lower price,high temperature resistant,but due to high resistance, filtering efficiency is lower





    Applications:



    Chemical plant Cement plant

    Steel iron plant Melting plant

    Carbon black plant Electricity Industry



    Nonwoven / Woven Glass Fiber Filter Cloth Industrial Liquid Filter BagNonwoven / Woven Glass Fiber Filter Cloth Industrial Liquid Filter Bag



    Nonwoven / Woven Glass Fiber Filter Cloth Industrial Liquid Filter Bag



    Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



    Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



    The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.





    Sample Service



    A4 size Samples are all free



    Sample Delievary Flow:

    Sample Inquiry→Sample Specification Confirmation→Stock Check→Courier Service Suppliers and Contact Conmfirmation→Delievary→Delievary Comfirmation
