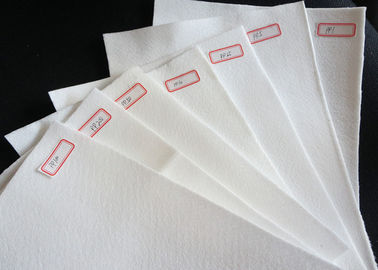

Custom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm Thickness

Custom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm Thickness

    • Custom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm Thickness
    • Custom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm Thickness
    • Custom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm Thickness
  • Custom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm Thickness

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: polypropylene filter cloth

    Payment & Shipping Terms:

    Minimum Order Quantity: 100meters
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 1000000sq.m per week
    Contact Now
    Detailed Product Description
    Thickness: 2-2.4mm Color: White
    Width: 1.8m, 2m, 2.1m, 2.15m Length: 50m, 100m Per Roll
    Micron: 0.5-300 Micron Material: PP Nonwoven Needle Felt

    Custom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm Thickness





    Quick Detail:



    High filtration efficiency , long service life

    Good anti abrasion

    High temperature grade

    Anti acid ,anti alkali, chemical resistance

    High porosity , good air permeability

    Good price quality

    Laminated compound,grads counterchange





    Description:



    Low temperature resistance ( 88-110 ℃)

    Excellent resistant to hydrolysis, acids and alkalies.

    Smooth surface, more defined pore size and good air permeability

    Lower fiber release, Lower density,High mechanical characteristics





    PP(Polypropylene)
    1. Operating Temperature:<90 centigrade
    2. Maximum Temperature:<100 centigrade
    3. Wear Resistance:Fair
    4. Hydrolisis Resistance:Excellent
    5. Alkaline Resistance:Excellent
    6. Acidic Resistance:Excellent
    7. Anti-oxidability:Fair
    8. The filter precision can reach less than 1 micron.





    Specifications:



    Material Polypropylene / polypropylene scrim
    Weight(g/m2) 500 550 600 650
    Thickness(mm) 2.0 2.2 2.4 2.6
    Air permeability(m3/m3/min) 12.6 10.8 9.6 8.4
    Tensile Strength(N/5X20cm) Warp >960 >1150 >1350 >1500
    Weft >1060 >1400 >1650 >1800
    Tensile elongation(%) Warp <35 <35 <35 <35
    Weft <55 <55 <55 <55
    Working temperature(℃) Continues <90 <90 <90 <90
    Instant 110 110 110 110
    Anti-acid Excellent Excellent Excellent Excellent
    Anti-alkali Excellent Excellent Excellent Excellent
    Anti-abrasion Excellent Excellent Excellent Excellent
    Finishing treatment Singeing or high temperature press





    Micron Filter Cloth and Bags FEATURES
    Material Polyproplene or Polyester or Nylon
    Temperature 88
    celsius degree and peak working



    temperature110 celsius degree.
    Technics Filtration efficiency up to 98.99%.Filtering precise at most 200 Micron
    Thickness Around 0.6cm and according to customers requirement
    Dimension dominated by customers with width within 2.2m
    and length in 100m/roll or 50m/roll.Bags dominated by
    customers(7"x16",7"x30",7"x32",8"x14".etc.)
    Strength Fine fibre with Acid & Alkali ,Abrasion resistant, Hydrolysis
    stable,Anti-oxidation
    Edge treatment for bags Stitch sewing or heat pressing or metal
    rings.


    Color White
    Package In inner polybag & outter woven polybag
    with paper tube inside the axis or Carton with bags in any dimension.
    Quality level super fine strength & ideal air
    permeability& big durability





    Notices:



    Polypropylene is a relatively low temperature fiber with quite excellent chemical resistance which finds use in specialist applications such as the chemical industry.





    Applications:



    Galvanic industry and Chemical industryPrefiltering solvents and acids

    Prefilter to extend final filter lifeFinal filter for noncritical filtrations

    Liquid-solid sepration with strong acid and alkali conditions filter press

    Air filtration under 90℃



    Custom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm ThicknessCustom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm ThicknessCustom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm Thickness


    What we can offer:
    1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
    2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
    3.Or you can express samples directly.
