Place of Origin: | China |
Brand Name: | Philis |
Certification: | ISO |
Model Number: | polypropylene filter cloth |
Minimum Order Quantity: | 100meters |
---|---|
Price: | Negotiable |
Packaging Details: | standard export package |
Delivery Time: | within 10 days |
Payment Terms: | T/T |
Supply Ability: | 1000000sq.m per week |
Thickness: | 2-2.4mm | Color: | White |
---|---|---|---|
Width: | 1.8m, 2m, 2.1m, 2.15m | Length: | 50m, 100m Per Roll |
Micron: | 0.5-300 Micron | Material: | PP Nonwoven Needle Felt |
Highlight: | micron filter cloth,filter press cloth |

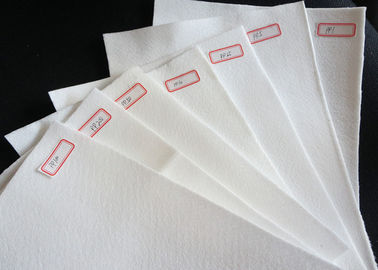

Custom Non Woven Filter Fabric Polyester Polypropylene Filter Media 2mm Thickness
Quick Detail:
High filtration efficiency , long service life
Good anti abrasion
High temperature grade
Anti acid ,anti alkali, chemical resistance
High porosity , good air permeability
Good price quality
Laminated compound,grads counterchange
Description:
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
PP(Polypropylene)
1. Operating Temperature:<90 centigrade
2. Maximum Temperature:<100 centigrade
3. Wear Resistance:Fair
4. Hydrolisis Resistance:Excellent
5. Alkaline Resistance:Excellent
6. Acidic Resistance:Excellent
7. Anti-oxidability:Fair
8. The filter precision can reach less than 1 micron.
Specifications:
Material | Polypropylene / polypropylene scrim | ||||
Weight(g/m2) | 500 | 550 | 600 | 650 | |
Thickness(mm) | 2.0 | 2.2 | 2.4 | 2.6 | |
Air permeability(m3/m3/min) | 12.6 | 10.8 | 9.6 | 8.4 | |
Tensile Strength(N/5X20cm) | Warp | >960 | >1150 | >1350 | >1500 |
Weft | >1060 | >1400 | >1650 | >1800 | |
Tensile elongation(%) | Warp | <35 | <35 | <35 | <35 |
Weft | <55 | <55 | <55 | <55 | |
Working temperature(℃) | Continues | <90 | <90 | <90 | <90 |
Instant | 110 | 110 | 110 | 110 | |
Anti-acid | Excellent | Excellent | Excellent | Excellent | |
Anti-alkali | Excellent | Excellent | Excellent | Excellent | |
Anti-abrasion | Excellent | Excellent | Excellent | Excellent | |
Finishing treatment | Singeing or high temperature press |
Micron Filter Cloth and Bags FEATURES | |||||||
Material | Polyproplene or Polyester or Nylon | ||||||
Temperature | 88 celsius degree and peak working temperature110 celsius degree. |
||||||
Technics | Filtration efficiency up to 98.99%.Filtering precise at most 200 Micron | ||||||
Thickness | Around 0.6cm and according to customers requirement | ||||||
Dimension | dominated by customers with width within 2.2m and length in 100m/roll or 50m/roll.Bags dominated by customers(7"x16",7"x30",7"x32",8"x14".etc.) |
||||||
Strength | Fine fibre with Acid & Alkali ,Abrasion resistant, Hydrolysis stable,Anti-oxidation |
||||||
Edge treatment for bags | Stitch sewing or heat pressing or metal rings. |
||||||
Color | White | ||||||
Package | In inner polybag & outter woven polybag with paper tube inside the axis or Carton with bags in any dimension. |
||||||
Quality level | super fine strength & ideal air permeability& big durability |
Notices:
Polypropylene is a relatively low temperature fiber with quite excellent chemical resistance which finds use in specialist applications such as the chemical industry.
Applications:
Galvanic industry and Chemical industryPrefiltering solvents and acids
Prefilter to extend final filter lifeFinal filter for noncritical filtrations
Liquid-solid sepration with strong acid and alkali conditions filter press
Air filtration under 90℃
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
