Chemical Resistance Nonwoven PE Polyester Filter fabric Coated PTFE Membrane

Chemical Resistance Nonwoven PE Polyester Filter fabric Coated PTFE Membrane

    • Chemical Resistance Nonwoven PE Polyester Filter fabric Coated PTFE Membrane
    • Chemical Resistance Nonwoven PE Polyester Filter fabric Coated PTFE Membrane
    • Chemical Resistance Nonwoven PE Polyester Filter fabric Coated PTFE Membrane
  • Chemical Resistance Nonwoven PE Polyester Filter fabric Coated PTFE Membrane

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: polyester filter cloth

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 meters
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 100000m per week
    Contact Now
    Detailed Product Description
    Type:: Non-woven Filter Usage:: Dedusting /liquid Filter
    Material:: Polyester, Polyester Abrasion Resistance:: Excellent
    Certificate:: ISO9001:2008 Size:: Customized

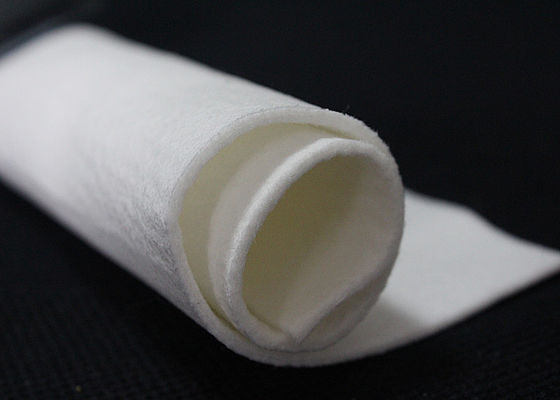

    Chemical Resistance Nonwoven PE Polyester Filter Cloth Coated with PTFE Membrane





    Quick Detail:



    Normal temperature flue gas filtration felt

    100% polyester

    1.5mm to 3mm thickness

    Weight from 350 to 800s

    Width 2.1 meter maximum

    High porosity ,good air permeability

    Good price quality

    Laminated compound,grads counterchange





    Description:



    Needle punched felt

    Hangzhou Philis concentrate in manufacture needle punched felt , Needle punched felt has many coating ,membrane,after-treatment product ,of which nneedle punched felt ,membrane needle punched felt,anti-static needle punched felt, water and oil repellent needle punched felt , anti-static and membrane needle punched felt .

    Needle punched felt has high air voids ,excellent air permeability,high efficiency collector dust ,long use time .

    Polyester needle punched felt can resistance 130-150 centigrade degree , It is widely used in cement plant ,wood working ,steel plant ,timber mill and so on .

    Acrylic needle punched felt can resistance 125-150 centigrade degree , it is widely used in cement plant .

    Aramid needle punched felt can resistance 204-240 centigrade degree ,it is widely used in asphalt mixing pant ,cement plant and so on .

    PPS needle punched felt can resistance 160-190 degree ,it is widely used in power plant .ptfe needle punched felt can resistance 240-260 degree ,it is widely used in waste incineration .





    Product Name Material Breaking Strenth
    (N/5×20cm)
    Tensile Strength
    (N/5×20cm)
    Thick-
    ness
    Weight Air Perme-
    ability
    Operation Temp.(℃)

    Warp
    Weft Warp Weft (mm) (G/m2) m3/m2/min Normal Instant

    Polyester filter felt
    Polyester/
    Terylene substrates
    900 1200 35 50 1.8 500 14 130 150


    high strength,
    low prolongation
    &low contraction
    needle-punched

    filter felt

    Polyester/
    Polyester substrates
    1500 1800 30 45 1.8 500 14 130 150

    polyester glass fiber
    needle-punched felt
    Polyester/
    glass fiber substrates
    1500 1500 10 10 2.2 800 14 150 170


    polypropylene fiber
    needle-punched

    filter felt

    Polypropylene fiber/
    polypropylene fiber
    substrates
    900 1200 35 50 2.2 500 14 90 110



    Acrylic filter felt

    Acrylic/
    Acrylic substrates
    900 1200 35 50 1.5 500 14 130 150







    Specifications:





    POLYESTER NONWOVEN FELT



    Material Polyester Fiber /Polyester scrim
    Weight(g/m2) 400 450 500 550 600
    Thickness(mm) 1.4 1.6 1.8 2.0 2.2
    Air Permeability(m3/m2/min) 21 18 16 13 12

    Tensile strength

    (n/5 x 20cm)

    Warp >1000 >1000 >1100 >1100 >1150
    Weft >1350 >1400 >1500 >1550 >1600
    Elongation (%) Warp < 25 < 25 < 25 < 25 < 25
    Weft < 45 < 45 < 45 < 45 < 45

    Working

    temperature(℃)

    Continues ≤130 ≤130 ≤130 ≤130 ≤130
    Instant 150 150 150 150 150
    Finishing Treatment Singeing,Het setting,Calendering



































    Notices:

    Polyester felt can be produced by ordinary staple scrim or high strength filament scrim, due to the customer demands,weight ranges from 350 g/m2 to 800 g/m2.





    Applications:



    Cement industry Asphalt industry

    Power Plants Coal industry

    Carbon black industry Chemical industry Smelting industry



    Chemical Resistance Nonwoven PE Polyester Filter fabric Coated PTFE MembraneChemical Resistance Nonwoven PE Polyester Filter fabric Coated PTFE MembraneChemical Resistance Nonwoven PE Polyester Filter fabric Coated PTFE Membrane





    Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



    Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



    The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
