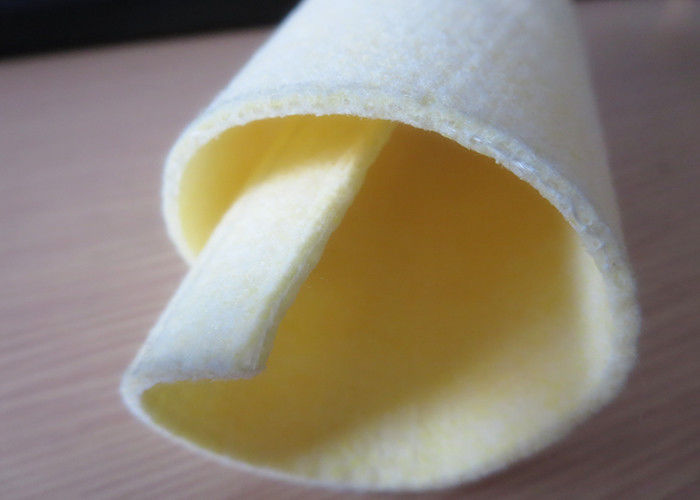

ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree

ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree

    • ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree
    • ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree
    • ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree
  • ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree

    Product Details:

    Place of Origin: China
    Brand Name: Philis
    Certification: ISO
    Model Number: polyester filter cloth

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 meters
    Price: Negotiable
    Packaging Details: standard export package
    Delivery Time: within 10 days
    Payment Terms: T/T
    Supply Ability: 100000m per week
    Contact Now
    Detailed Product Description
    Material: Polyester + Fiberglass Color: Yellow
    Working Temperature: 150-170 Weight: 600gsm
    Thickness: 1.8mm

    150 - 170 Degree Dacron / Polyester Filter Cloth Felt for High Temperature Filter









    Quick Detail:



    Normal temperature flue gas filtration felt

    100% polyester

    1.5mm to 3mm thickness

    Weight from 350 to 800s

    Width 2.1 meter maximum

    High porosity ,good air permeability

    Good price quality

    Laminated compound,grads counterchange





    Description:



    High efficiency of removing dust particle

    Easy clear and long useful life

    Smooth surface after Singeing,Heat setting,Calendering.






    Specifications:



    Product No. :            MT 560

    Name:                      Polyester with fiberglass scrim
    Weight(g/m2):              600
    Material:                  Polyester with fiberglass scrim
    Thickness(mm):             1.8
    Air permeability(L/m2/s): 200-350
    Tensile strength :    Warp:≥1200
     (N/5×20cm)            Weft:≥1500

    Tensile elongation:     Warp:<35
    (%)                              Weft:<40

    Working Temp:           Continuous:150
                                        Short time:170
    Finishing treatment:      Singeing, Calendering





    Technical Parameters
    Item Parameters
    Product Name Medium Temperature(MT)
    Weight 700±5% g/
    Thickness 2.2±10% mm
    Air Permeability 8-12 m³/ /min
    Breaking Strength Warp >1000 N/50*200mm
      Weft >1500 N/50*200mm
    Breaking Elongation Warp <10 %
      Weft <10 %
    Working Temperature Continuous 150
      Instant 170
    Finish Treatment Singeing Calendering Laminating Oil&Water Repellent





    Material Polyester Fiber /Polyester scrim
    Weight(g/m2) 400 450 500 550 600
    Thickness(mm) 1.4 1.6 1.8 2.0 2.2
    Air Permeability(m3/m2/min) 21 18 16 13 12

    Tensile strength

    (n/5 x 20cm)

    Warp >1000 >1000 >1100 >1100 >1150
    Weft >1350 >1400 >1500 >1550 >1600
    Elongation (%) Warp < 25 < 25 < 25 < 25 < 25
    Weft < 45 < 45 < 45 < 45 < 45

    Working

    temperature(℃)

    Continues ≤130 ≤130 ≤130 ≤130 ≤130
    Instant 150 150 150 150 150
    Finishing Treatment Singeing,Het setting,Calendering











































    Notices:

    Polyester felt can be produced by ordinary staple scrim or high strength filament scrim, due to the customer demands,weight ranges from 350 g/m2 to 800 g/m2.







    Applications:



    Cement industry Asphalt industry

    Power Plants Coal industry

    Carbon black industry Chemical industry Smelting industry



    ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree



    ISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 DegreeISO Dacron / Polyester Filter Cloth with Fiberglass Scrim for Medium Temperature Air / Gas Filtration 150 - 170 Degree





    Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



    Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



    The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
