Industrial Nylon Polyester PTFE Filter Press Plates For Juice Filtration

Industrial Nylon Polyester PTFE Filter Press Plates For Juice Filtration

  • Industrial Nylon Polyester PTFE Filter Press Plates For Juice Filtration
  • Industrial Nylon Polyester PTFE Filter Press Plates For Juice Filtration
  • Industrial Nylon Polyester PTFE Filter Press Plates For Juice Filtration
Industrial Nylon Polyester PTFE Filter Press Plates For Juice Filtration
Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: filter press cloth
Payment & Shipping Terms:
Minimum Order Quantity: 200m
Price: Negotiable
Packaging Details: standard export package
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Type:: Woven Filter Usage:: Liquid Filter
Name:: Polypropylene Plate And Frame Filter Press Cloth Material:: PP
Weave:: Plain/twill/satin Sample:: Free
High Light:

Juice Nylon Polyester Filter Press Plates

,

PA6 PP Filter Plate

,

PTFE Filter Press Plates

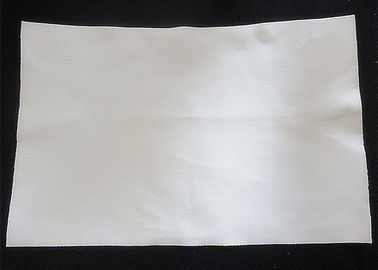

Polyester Filter Press Cloth for Juice Filtration Food Industry 200gsm



Quick Detail:



a. Materials used: polypropylene, polyester


b. working temperature: normal working temperature88celsius degree, 110celsius degree peak working temperature.


c. Weight standard:600g/m2, 650g/m2, 700g/m2, 800g/m2.etc. Completely dominated by customers.



Specifications:



Model material

Weight

(g/m2)

Thickness

(mm)

Air permeability

(l/m2.s)

Breaking strength

(N/5x20CM)

Elongation

(%)

Density

(pcs/10cm)

weave
warp weft warp weft Peak. Cont.
PP 750A PP 450 0.79 26 3104 2663 38 30 222 154 PLAIN
PP 750B PP 517 1.27 30 2608 2050 35 28 256 151 TWILL
PP 750BB PP 740 1.40 8 10115 3030 35 30 582 110 SATIN
PP 750AB PP 650 1.30 20 7800 5200 26 20 450 170 TWILL
PP 4212 PP 380 1.07 123 2972 1942 24 37 236 123 TWILL
PE 8222 PE 700 1.5 8 720 450         TWILL



P0802Y zinc oxide (needle felt)
T0803t potash fertilizer (needle felt)
P120D/P050D/P080D/P020MD double layer monofilament filter cloth
P050D, P030MD, P020MD FGD, Gypsum
N9029 iron ore concentrate
N199 iron ore concentrate
P1010 iron ore concentrae
P020MD iron ore concentrate
9501-32 fly ash, coal ash
9501-35 fly ash
9501-34 zinc oxide
P1010sdy zinc sulfate
PT9502b-41DY gold mining,vanadium mine
9502-40 borax, vanadium pentoxide
PT9502b-31 gold
P750AB copper
P120/P190 phosphate
MP11343Y copper
9502-402DY iron sulfide
9503-32 catalyst
P190 Beer filtration
P199s/P11636: Sugar filtration
N120B Palm oil filtration, other oil, use anti-static filter cloth
P1010-37DY Titanium Dioxide
3233SY White carbon black
3233SY/108C/P801IIy Kaolin
T3112BY/3233SYY

pigment, dyestuff

Material available:

PET, PP, PA6, PA66 in monofilament, multifilament fabric, interwoven filter yarn

Benefits:

High dimensional stability,

Good abrasion performance,

Wide range of filter rate

Efficient fabric cleaning





Technical Data:





MODEL.NO WEIFGT(g/m2) SPLITTING STRENGTH(N/5X20cm) SPLITTING AND ENLONGATION(%) AIR PERMEABILITY(mm/s) THICKNESS
(mm)
WARP WEFT WARP WEFT
PA5815 540 5340 2258 28.7 24.6 818 0.85
PA5136 590 7304 2550 37.8 26.5 619.4 1.00
PA2214 280 3111 1825 25.8 24.2 2268.36 0.52
PA2816 360 3585 2165 33.5 25.8 2239.12 0.65
PA2815 350 3780 2456





Application fields:



  1. Chemical industry: dyestuff, pesticide, silicic acid, glycerin, white carbon black, sodium chloride, calcium carbonate, assistant, etc.

  2. Food industry: sugar mill, vintage, microzyme, juice, edible oil, vegetable oil, sauce, etc.

  3. Metallurgy industry: gold, platinum, uranium, cobalt, nickel, zinc, manganese, copper, iron mine, etc

  4. Non-metallic mine: cement, asphaltum, waste coal, washed coal, ceramic, ball clay, etc.

  5. Medical industry: enzyme preparation, amino acid, bacteriophage, medical intermediate, blood preparation, etc.



Industrial Nylon Polyester PTFE Filter Press Plates For Juice Filtration 0Industrial Nylon Polyester PTFE Filter Press Plates For Juice Filtration 1Industrial Nylon Polyester PTFE Filter Press Plates For Juice Filtration 2





Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84, PTFE, woven filter fabric and so on.



The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
