| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | filter press cloth |
| Minimum Order Quantity: | 200m |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs per week |
| Supply Type:: | Make-to-order | Usage:: | Liquid Filter |
|---|---|---|---|
| Certification:: | ISO9001 | Delivery Time:: | Normally 15 Days |
| Type:: | Woven Filter | Material:: | PP, Polypropylene Fiber |
| High Light: | Liquid PP Filter Plate ISO9001,Polypropylene Woven Filter Press Plates,Polyester Woven Filter Press Plates |
||

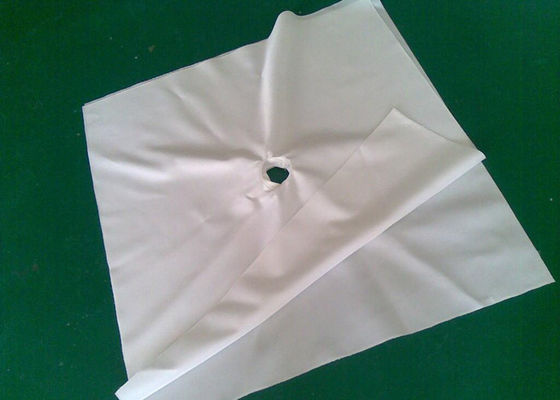

heat resist filter press cloth / fabric 3228 for chemical industry
Quick Detail:
a. Materials used: polypropylene, polyester
b. working temperature: normal working temperature88celsius degree, 110celsius degree peak working temperature.
c. Weight standard:600g/m2, 650g/m2, 700g/m2, 800g/m2.etc. Completely dominated by customers.
Specifications:
|
Model |
material |
Weight (g/m2) |
Thickness (mm) |
Air permeability (l/m2.s) |
Breaking strength (N/5x20CM) |
Elongation (%) |
Density (pcs/10cm) |
weave |
|||||
|
warp |
weft |
warp |
weft |
Peak. |
Cont. |
||||||||
|
PP 750A |
PP |
450 |
0.79 |
26 |
3104 |
2663 |
38 |
30 |
222 |
154 |
PLAIN |
||
|
PP 750B |
PP |
517 |
1.27 |
30 |
2608 |
2050 |
35 |
28 |
256 |
151 |
TWILL |
||
|
PP 750BB |
PP |
740 |
1.40 |
8 |
10115 |
3030 |
35 |
30 |
582 |
110 |
SATIN |
||
|
PP 750AB |
PP |
650 |
1.30 |
20 |
7800 |
5200 |
26 |
20 |
450 |
170 |
TWILL |
||
|
PP 4212 |
PP |
380 |
1.07 |
123 |
2972 |
1942 |
24 |
37 |
236 |
123 |
TWILL |
||
|
PE 8222 |
PE |
700 |
1.5 |
8 |
720 |
450 |
|
|
|
|
TWILL |
||
|
P0802Y |
zinc oxide (needle felt) |
|
T0803t |
potash fertilizer (needle felt) |
|
P120D/P050D/P080D/P020MD |
double layer monofilament filter cloth |
|
P050D, P030MD, P020MD |
FGD, Gypsum |
|
N9029 |
iron ore concentrate |
|
N199 |
iron ore concentrate |
|
P1010 |
iron ore concentrae |
|
P020MD |
iron ore concentrate |
|
9501-32 |
fly ash, coal ash |
|
9501-35 |
fly ash |
|
9501-34 |
zinc oxide |
|
P1010sdy |
zinc sulfate |
|
PT9502b-41DY |
gold mining,vanadium mine |
|
9502-40 |
borax, vanadium pentoxide |
|
PT9502b-31 |
gold |
|
P750AB |
copper |
|
P120/P190 |
phosphate |
|
MP11343Y |
copper |
|
9502-402DY |
iron sulfide |
|
9503-32 |
catalyst |
|
P190 |
Beer filtration |
|
P199s/P11636: |
Sugar filtration |
|
N120B |
Palm oil filtration, other oil, use anti-static filter cloth |
|
P1010-37DY |
Titanium Dioxide |
|
3233SY |
White carbon black |
|
3233SY/108C/P801IIy |
Kaolin |
|
T3112BY/3233SYY |
pigment, dyestuff |
Technical Data:
| MODEL.NO | WEIFGT(g/m2) | SPLITTING STRENGTH(N/5X20cm) | SPLITTING AND ENLONGATION(%) | AIR PERMEABILITY(mm/s) | THICKNESS (mm) |
||
| WARP | WEFT | WARP | WEFT | ||||
| PA5815 | 540 | 5340 | 2258 | 28.7 | 24.6 | 818 | 0.85 |
| PA5136 | 590 | 7304 | 2550 | 37.8 | 26.5 | 619.4 | 1.00 |
| PA2214 | 280 | 3111 | 1825 | 25.8 | 24.2 | 2268.36 | 0.52 |
| PA2816 | 360 | 3585 | 2165 | 33.5 | 25.8 | 2239.12 | 0.65 |
| PA2815 | 350 | 3780 | 2456 | ||||
More application fields:
Chemical industry: dyestuff, pesticide, silicic acid, glycerin, white carbon black, sodium chloride, calcium carbonate, assistant, etc.
Food industry: sugar mill, vintage, microzyme, juice, edible oil, vegetable oil, sauce, etc.
Metallurgy industry: gold, platinum, uranium, cobalt, nickel, zinc, manganese, copper, iron mine, etc
Non-metallic mine: cement, asphaltum, waste coal, washed coal, ceramic, ball clay, etc.
Medical industry: enzyme preparation, amino acid, bacteriophage, medical intermediate, blood preparation, etc.
Material available:
PET, PP, PA6, PA66 in monofilament, multifilament fabric, interwoven filter yarn
Benefits:
High dimensional stability,
Good abrasion performance,
Wide range of filter rate
Efficient fabric cleaning
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
