Place of Origin: | China |
Brand Name: | Philis |
Certification: | ISO |
Model Number: | needle felt filter |
Minimum Order Quantity: | 200 meters |
---|---|
Price: | Negotiable |
Packaging Details: | standard export package |
Delivery Time: | within 10 days |
Payment Terms: | T/T |
Supply Ability: | 100000m per week |
Highlight: | needle filter fabric,woven filter fabric |
---|

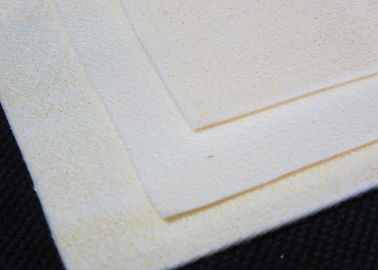

Heat Resistance Needle Felt Filter Low Price
Quick Detail:
Normal temperature flue gas filtration felt
100% polyester
1.5mm to 3mm thickness
Weight from 350 to 800s
Width 2.1 meter maximum
High porosity ,good air permeability
Good price quality
Laminated compound,grads counterchange
Description:
High efficiency of removing dust particle
Easy clear and long useful life
Smooth surface after Singeing,Heat setting,Calendering.
Specifications:
Material |
Acrylic fiber |
|
Weight(g/m2) |
500 |
|
Thickness(mm) |
2.0 |
|
Air permeability (L/m2/s) |
150-300 |
|
Tensile strength(N/5×20cm) |
Warp |
≥1200 |
Weft |
≥1300 |
|
Tensile Elongation(%) |
Warp |
<20 |
Weft |
<45 |
|
Working temperature(℃) |
Continues |
≤140 |
Instant |
160 |
|
Hydrolyzation resistant |
Excellent |
|
Alkali resistant |
Excellent |
|
Acid resistant |
Excellent |
|
Stability of water solution |
Good |
|
Finishing Treatment |
Singeing,calendering |
Notices:
Filter material for high-temperature
1. materials available: pps (Ryton / polyphenylene sulfide), Nomes, Glass fiber etc.
2. working temperature: no lower than 160 degree celsius.
3. specialties: strong acid resistance, good stability, high filtering efficiency
4. techniques used: needle punching & other stability, high filtering efficiency
Article Name | Nomex needled felt | |
Ingredients | Fiber | 100% Nomex |
Scrim | 100% Nomex | |
Weight | g/m2 | 500 |
Thickness | mm | 2±2 |
Density | g/m³ | 0.24 |
Permeability | L/dm2.min | 150 |
Tensile breaking strength(N/5cm) |
Warp | ≥800 |
Weft | ≥1000 | |
Elongation @200N/5cm | Warp | <5 |
Weft | <5 | |
Maximum shrink of 90 mins |
Temperature(°C) | 250 |
% | ≤1 | |
Service Temperature(°C) | Continuous | 200 |
Instant | 240 | |
Finishing |
Singeing, calendaring |
Applications:
Low-oxidizability garbage incinerator, metal melting, fly ash of steel plants, coal-fir boiler and chemical industry, collection fo blast-furnace gas of kiln forehead, kiln backend and steel works, high temperature exhaust of electric furnace, exhaust of refractory brick kiln and the coking exharst in the industries of asphalt mixing, non-ferrous smelting, ceramics, glass and cement.
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

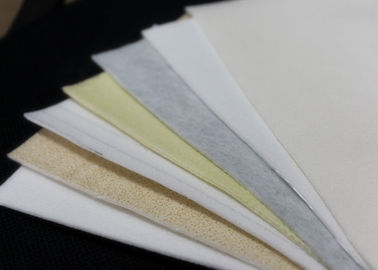

Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

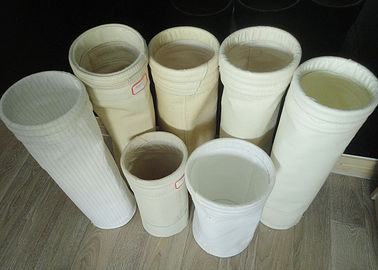

The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
