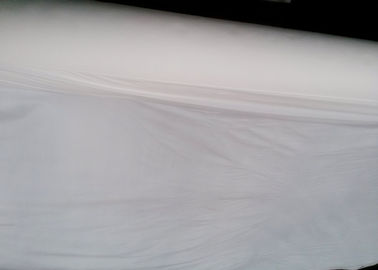

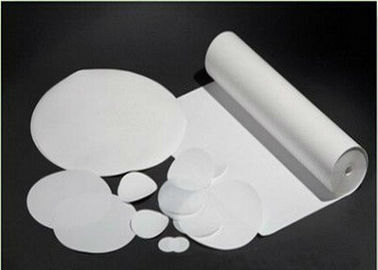

Filter Membrane PTFE Filter Cloth

Filter Membrane PTFE Filter Cloth
Filter Membrane PTFE Filter Cloth Filter Membrane PTFE Filter Cloth Filter Membrane PTFE Filter Cloth

Large Image :  Filter Membrane PTFE Filter Cloth

Product Details:

Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: PTFE filter cloth

Payment & Shipping Terms:

Minimum Order Quantity: 100 meters
Price: Negotiable
Packaging Details: standard export package
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 10000m per week
Detailed Product Description
High Light:

dust filter cloth

,

water filter cloth

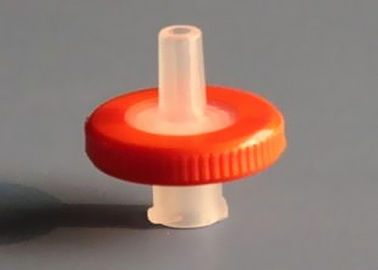

PTFE Filter Cloth / Filter Membrane for Hydrophobic / Hydrophilic PTFE Syringe Filters





Quick Detail:



High filtration efficiency ,long service life

Good anti-abrasion

High temperature grade

Anti-acid ,anti-alkali, chemical resistance

High porosity ,good air permeability

Good price quality

Laminated compound,grads counterchange





Description:



Acid and alkali Resistance, corrosion resistance,aging resistance

Can be used under high humidity environment

Low shrinkage rate even if under high temperature 260℃





Specifications:



Compositions 100%PTFE
Weight (g/m2) 800
Thickness (mm) 1.0~1.5
Air permeability(L/m2/S) 1.8-3.6
Tensile strength(N/5×20cm) Warp ≥600
Weft ≥800
Tensile Elongation(%) Warp <12
Weft <15
Continous operating temperature (℃) ≤250
Short time operating temperature(℃) 280
Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent
The stability of water solution Excellent
Finishing treatment Heat Set






Notices:



PTFE needle felt are produced from 100% PTFE fiber which has been punched in three-dimentional structure. They have excellent features such as excellent flexibility, molding capability, high tensile strength, creep resistance, high and low temperature resistance, corrosion resistance and anti-aging. 100% PTFE filter material can meet requirements in hostile environments of temperature fluctuating and acid & alkali in all PH range. The lifespan of PTFE filter material will be guaranteed for over 4 years as long as the temperature is controlled under the maximum operating temperature.





Applications:



Combustion Coal burning boiler

Waste incineration Carbon black producing

Tio2 producing for fume treatment or dust collection

PTFE fibers are supplied blended with glass fibers and P84 to produce FMS Series



Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
