| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | PTFE FILTER CLOTH |
| Minimum Order Quantity: | 200m2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000m per week |
| Place Of Origin:: | Zhejiang, China (Mainland) | Model Number:: | PTFE Needle Felt |
|---|---|---|---|
| Color:: | White | Material:: | PTFE |
| Certificate:: | ISO9001 | Usage:: | Air Filter |
| High Light: | water filter cloth,High Temperature Filter Media |
||

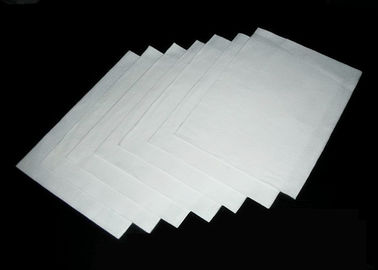

PTFE filter felt / PTFE needle felt
Quick Detail:
High filtration efficiency ,long service life
Good anti-abrasion
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Good price quality
Laminated compound,grads counterchange
Description:
Acid and alkali Resistance, corrosion resistance,aging resistance
Can be used under high humidity environment
Low shrinkage rate even if under high temperature 260℃
PTFE Felt Features:
Material: PTFE fiber/PTFE long thread scrim
Weight: 630gsm-950gsm
Thickness: 0.81mm-1.12mm
Tensile strength (n/5 x 20cm):
a) Warp: 750 b) Weft: 980
Tensile elongation:
a) Warp: <25% b) Weft: <20%
Permeability (10-3m3/m2.S): 100 - 200
Working temperature:
a) Continuous: 240
b) Instant: 300
Surface treatment: singeing, heat setting,PTFEcoating,membrane.
Specifications:
| Compositions | 100%PTFE | |
| Weight (g/m2) | 800 | |
| Thickness (mm) | 1.0～1.5 | |
| Air permeability(L/m2/S) | 1.8-3.6 | |
| Tensile strength(N/5×20cm) | Warp | ≥600 |
| Weft | ≥800 | |
| Tensile Elongation(％) | Warp | <12 |
| Weft | <15 | |
| Continous operating temperature (℃) | ≤250 | |
| Short time operating temperature(℃) | 280 | |
| Anti-acid | Excellent | |
| Anti-alkali | Excellent | |
| Anti-abrasion | Excellent | |
| The stability of water solution | Excellent | |
| Finishing treatment | Heat Set | |
PTFE material also called material,with a good performance in the temperature of 240 centigrade,the instant temperature can up to 260 centigrade. PTFE is a special material with a good alkali and acid resistance,non-hygroscopic,stable physical dimension, mainly used in coal burning boiler,waste incineration,carbon black producing,Tio2 producing for fume treatment or dust collection.
|
Fiber Name
|
ptfe fiber
|
||
|
Weight(g/m2)
|
750-800
|
Thickness(mm)
|
1.8-2.0
|
|
Air permeability (m3/m2/min)
|
5-8
|
Working temperature (Degree C)
|
240-260
|
|
Width(m)
|
<2.2m
|
Surface treatment
|
Heat-set and singed one side
|
|
Break strength(N/5cm)
|
Warp≥900 Weft≥1200
|
Break elongation(%)
|
Warp≥35 Weft≥50
|
|
Resistance to acid
|
Excellent
|
Resistance to alkali
|
Excellent
|
|
Resistance to hydrolysis
|
Excellent
|
Resistance to oxidation
|
Excellent
|
Notices:
PTFE needle felt are produced from 100% PTFE fiber which has been punched in three-dimentional structure. They have excellent features such as excellent flexibility, molding capability, high tensile strength, creep resistance, high and low temperature resistance, corrosion resistance and anti-aging. 100% PTFE filter material can meet requirements in hostile environments of temperature fluctuating and acid & alkali in all PH range. The lifespan of PTFE filter material will be guaranteed for over 4 years as long as the temperature is controlled under the maximum operating temperature.

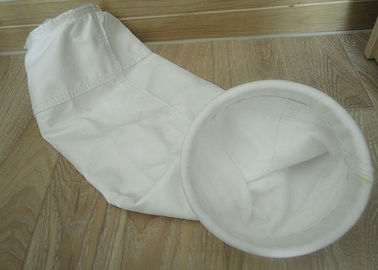

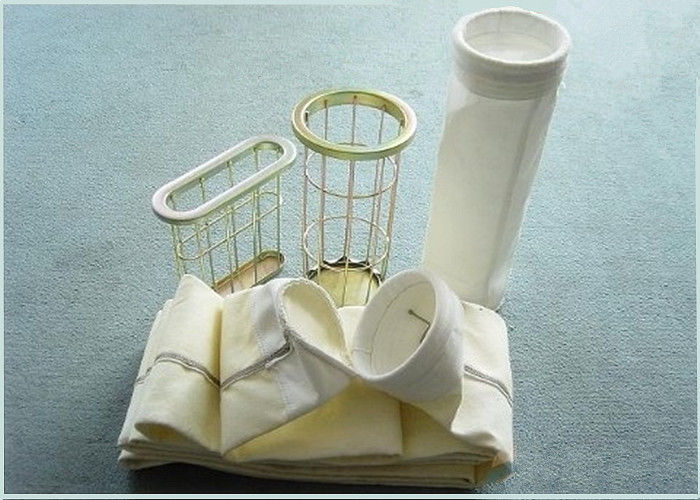

1. Dust filtration-----filter bag and filter felt
Polyester filter bag,polyester antistatic filter bag,polyester filter bag blending,polyester filter bag with membrane,polyester filter bag water and oil repellent,polyester filter bagspecial type,pp filter bag,aramid filter bag pps filter bag acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84filter bag,HST filter bag,fiberglass filter bag,PTFE mix pps filter bag,Basalt filter bag and polyester needle punched felt,acylic felt,aramid felt,P84 felt so on.
2. Liquid filtration filter bag
Polyester filter bag, PE filter bag, Micro filter bag,5 micro filter bag,10 micro filter bags,PP filter bag,nylon filter bag,ptfe filter bag,stainsteel filter bag and micro filter felt from 0.2micro to 600micro and so on.
3. Machines for making dust filter bags
Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing
machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.
| Fibre Types | Continuous operating temp* |
Designation |
Resistance to Hydrolysis | Resistance to Acids | Resistance to Alkalis | Resistance to Oxidation |
|---|---|---|---|---|---|---|
| Polypropylene | 90℃-95℃ | PP | excellent | excellent | excellent | restricted |
| Polyacrylnitrile homopolymer | 125℃-140℃ | AC | good | good | moderate | good |
| Polyester | 110℃-130℃ | PE | restricted | moderate | restricted | good |
| Polyphenylene sulfide | 190℃-200℃ | PPS | excellent | excellent | excellent | restricted |
| m-Aramide | 200℃-220℃ | NO | moderate | moderate | moderate | moderate |
| Polyimide | 240℃-260℃ | P84 | good | moderate | moderate | good |
| Polytetrafluorethylene | 250℃-280℃ | PTFE | excellent | excellent | excellent | excellent |
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
Sample lead time:1~7 days, Free sample,
We do quotation within 2 days and welcome your any inquiry at any time.
A: Welcome any OEM requirements.
B: We offer instruction for customers to the usage of our product.
C: We offer goods return and goods exchange for reasonable situation.
D: We've got experts ready to solve some professional questions.
E: Professional shipping service if necessary.
F: We can produce products according to customer's request.
