| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | woven filter cloth |
| Minimum Order Quantity: | 100meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000 meters per week |
| Working Temperature:: | Less 130℃ | Model:: | Staple Fiber/Long Thread |
|---|---|---|---|
| Weave:: | Plain/twill/satin | Air Permeability:: | Can Be Customized |
| Sample:: | Free | Type:: | Woven Filter |
| High Light: | dust filter cloth,High Temperature Filter Media |
||

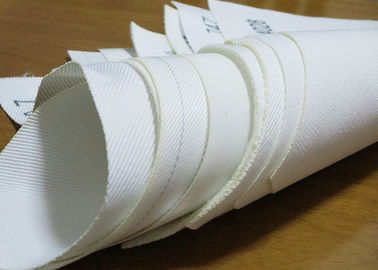

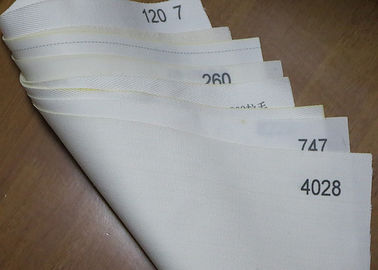

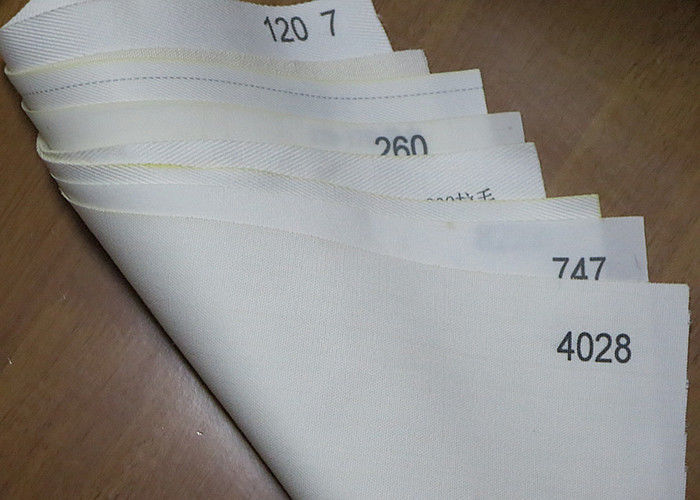

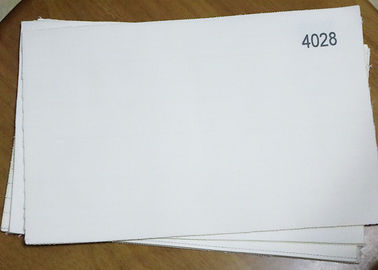

Woven Filter Cloth Used in Liquid / Solid Separaton and Dust Collection
Quick Detail:
1. reliable mechanical resistance, high elasticity;
2. corrosion resistance
3. low density, light weight
4. wear resistance
5. used in kinds of filter
6. PP woven filter cloth for filter press machine
7. High tensile strength
8. Abrasion proof
Description:
We produce all kinds of PP filter cloth,
1. The weave:plain,twill,double twill
2. We have the type:840A,840B,750AB,750A,750B,108C,108B,etc
3. The PP filter cloth is widly used for chemical industry,pharmacy industry,smelting,stains industry and so on.
750B,721,663,1000,1000A......
Specifications:
| Model | Breaking Strength | Density | Thickness | Weight | Air Permeability | Weave |
| (N/5*20cm) | (root/10cm) | (mm) | (g/m2) | L/m2.s | ||
| 52l | 2608/2050 | 214.8/150.8 | 0.79 | 302.7 | 216.5 | Twill |
| 522 | 2104/1633 | 244/173 | 0.41 | 155 | 73.44 | Plain |
| 534 | 2501/1894 | 193.6/100.0 | 0.99 | 368.1 | 41.2 | Plain |
| 4212 | 2672/1342 | 236.4/123.2 | 1.34 | 389.4 | 85.6 | Twill |
| 700A | 3426.6/2819.4 | 204/106 | 0.7 | 350 | 117.9 | Plain |
| 700B | 4648.0/2866.6 | 188/114 | 0.59 | 280 | 254.2 | Twill |
| 700AB | 6865.4/416.7 | 378/235 | 1.15 | 580 | 82 | Twill+Plain |
| 750A(840A) | 4466/2905 | 168/131 | 0.85 | 330 | 42 | Plain |
| 750B(840B) | 5234/3489. | 256/141 | 0.99 | 420 | 76 | Twill |
| 750AB(840AB) | 6718/5421 | 333.8/204.4 | 1.36 | 489.9 | 24.5 | Plain |
| 840-1 | 5275/3948 | 252/146 | 0.9 | 440 | 45.5 | Twill |
| 840-2 | 5928/4086 | 283/142 | 1 | 490 | 40.7 | Twill |
| 840-3 | 6282/4858 | 311/134 | 1.1 | 520 | 27.2 | Twill |
| 858 | 4418/3618 | 251/124 | 0.88 | 380 | 240.7 | Twill |
| 4218 | 8568/5427 | 456/94 | 1.32 | 660 | 38.4 | Twill |
| 4422 | 2643/1514 | 181/94 | 1.18 | 480 | 17.86 | Twill |
| 1000A | 5585.7/4089.2 | 204/102 | 0.85 | 435 | 9.83 | Plain |
| 1000B | 6636/1481 | 204/110 | 0.79 | 430 | 21.49 | Twill |
| 1500-1 | 56283701 | 251118 | 1.42 | 725 | 29.38 | Twill |
| 108B | 8721/4642 | 503/133 | 1.1 | 600 | 13.6 | Double Twill |
| 108C | 8367/4797 | 504/177 | 1.03 | 600 | 22.96 | Satin |
|
Material
|
Item
|
Breaking Strength
(N/5*20cm)
|
Density
(Root/10cm)
|
Thickness
(mm)
|
Weight
(g/m2)
|
Air Permeability
(L/m2.s)
|
Weave
|
|
Polyester Filament
|
60-8(130)
|
1363/111.6
|
260.0/221.6
|
0.27
|
125.6
|
130.6
|
Plain
|
|
60-10(240)
|
2508/958.0
|
225.6/156.0
|
0.42
|
219.47
|
36.1
|
Plain
|
|
|
60-9(260)
|
2202/1776
|
205.6/160.8
|
0.47
|
257
|
32.4
|
Plain
|
|
|
60-7(621)
|
3026/2288
|
191.2/134.0
|
0.65
|
342.4
|
37.8
|
Plain
|
|
|
Polyester Staple Fiber
|
5926(120-7)
|
4498/4044
|
260/202
|
1.42
|
610
|
54
|
Twill
|
|
734(120-12)
|
2072/1633
|
232/166
|
0.62
|
245
|
480
|
Twill
|
|
|
745(120-13)
|
1936/730
|
232/196
|
0.48
|
210
|
125
|
Plain
|
|
|
747(120-14)
|
2026/1485
|
226/158
|
0.53
|
248
|
120
|
Plain
|
|
|
758(120-15)
|
2594/1909
|
194/134
|
0.73
|
330
|
100
|
Plain
|
|
|
3927(120-16)
|
4598/3154
|
156/106
|
0.9
|
524
|
18
|
Plain
|
|
|
728(120-17)
|
2753/1869
|
246/310
|
0.89
|
360
|
180
|
Twill
|
|
|
729
|
3180/2157
|
307/201
|
0.72
|
315
|
120
|
Plain
|
|
|
208
|
2788/1930
|
360/276
|
1.43
|
400
|
280
|
Twill
|
|
|
822
|
5760/3480
|
260/102
|
1.65
|
940
|
22
|
Twill
|
Notices:
Meantimes we also supply PE(Polyester ),PA(Nylon) filter cloth to fit different application.
Any other question feel free to let us know.
Applications:
Separation in solid and liquid to equip with filter press ,conveyor belts filtration Machine ,Filter Leaf ,Horizontal Rotating Pan Filter ,Vacuum filter ,in Chemical industry ,Fertilizer industry ,Sugar making ,food and beverage ,metallurgy ,Building ,Waste water dealing ,and so on .
