| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | glassfiber filter cloth |
| Minimum Order Quantity: | 100m |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000m per week |
| Color: | Yellow, White | Weight: | 800gsm |
|---|---|---|---|
| Material: | Glass Fiber | Thickness: | 2.4mm |
| Air Permeability: | 200-300 | Tensile Strength: | Warp≥1050, Weft≥1800 |
| Tensile Elongation: | Warp<10, Weft<10 | Continue Temperature: | 260℃ |
| Instant Temperature: | 300℃ | Finishing Treatment: | Singeing, Calendering |
| High Light: | micron filter cloth,filter fabric roll |
||

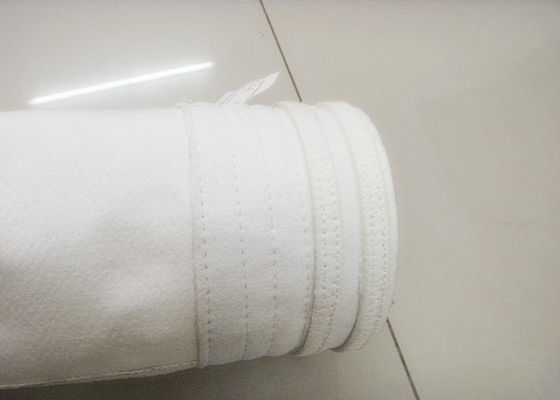

Multi Purpose Industrial Glass Fiber Cloth Filter 800gsm Yellow / White
Quick Detail:
High filtration efficiency ,long service life
Good anti-abrasion
High temperature grade
Anti - acid ,anti - alkali, chemical resistance
High porosity ,good air permeability
Good price quality
Laminated compound,grads counterchange
Description:
Glass fiber filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.
Specifications:
Glass fiber filter felt Technical parameters
| Type | ZLN-BX-01(Single side web) | ZLN-BX-02(Double side web) | |
| Weight(g/m2) | 800 | 900 | |
| Air permeability(m2m2/min) | 9~18 | 8~15 | |
| Tensile strength (N/5×20cm) | Warp | >1850 | >1800 |
| Weft | >1600 | >1800 | |
| Tensile Elongation (%) | Warp | <10 | <10 |
| Weft | <10 | <10 | |
| Broken strength(Mpa/min) | 3.1 | 3.0 | |
| Working temperature(°C) | 260~300 | 260~300 | |
| Anti-acid | Excellent | Excellent | |
| Anti-alkali | Medial | Medial | |
| Anti-abrasion | Bad | Bad | |
| The stability of water solution | Medial | Medial | |
| Finishing treatment | treatment | treatment | |
Advantages:
1.Features: heavy loads, long life time, reasonable price, strong function, etc.
2.Application: Polluted air and dust in Iron & Steel factory, Melting factory, Cement factory, Petrol chemistry ,etc.
|
Weight (g/ m2)
|
750
|
|
|
Thickness (mm)
|
1.5
|
|
|
Air permeability (L/m2/s)
|
>17
|
|
|
Tensile strength
(N/5 20cm)
|
wrap
|
>800
|
|
weft
|
>1200
|
|
|
Tensile Elongation(%)
|
wrap
|
<1.0
|
|
weft
|
2.40
|
|
|
Broken strengt(Mpa/min)
|
≤20
|
|
|
Continuous working temperature(ºC)
|
240
|
|
|
Short time Working temperature(ºC)
|
260
|
|
|
Anti-acid
|
Fair
|
|
|
Anti-alkali
|
Good
|
|
|
Anti-abrasion
|
Excellent
|
|
|
The stability of water solution
|
Fair
|
|
|
Finishing treatment
|
ePTFE membrane
|
|
Glass fiber needle felt
1.Temperature (°C): Continue: 240, Instant: 260
2.Features:low price compared with other high temperature fibers,and stable size,low
shrinkage rate,high intensity
3.Application:chemistry,steel factory,metallurgy,cement,etc.
Notices:
glass fiber needle felt is one kind of high temperature resistant filter material with reasonable structure and excellent performance,it could be high temperature resistant,anti-abrasion,stable size,little elongation shrinkage ratio,high intension,also ultimate fiber of felt layer fiber,three dimensional micro pore structure,high porosity,small filter resistance to gas,it has higher speed and efficiency,Comparing with other high temperature resistant chemical fiber felt,it has the advantage of lower price,high temperature resistant,but due to high resistance, filtering efficiency is lower
Applications:
Chemical plant Cement plant
Steel iron plant Melting plant
Carbon black plant Electricity Industry
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
