| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | polyester pulping fabric |
| Minimum Order Quantity: | 100 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000m per week |
| Material:: | 100% Polyester | Model:: | 08603 |
|---|---|---|---|
| Color:: | White | Sample:: | Free Samples |
| Weave Type:: | Plain, Plain Weave | Application:: | Washing Equipment |
| Highlight: | screen mesh filter,fabric netting mesh |
||

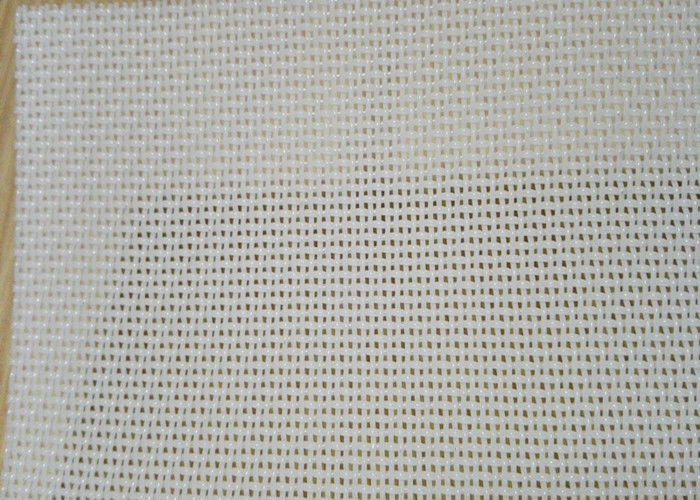

woven monofilament polyester filter mesh anti-dust
Quick Details
Polyester monofilament filter mesh
nylon filter mesh
Spec.: 20 mesh-420 mesh
Width: 115cm-165cm
Description:
washing clothing nets:
1.Use
washing clothing nets is used in several of washing equipments.
2.Parameter
| Model of fabric | Thread Diameter (mm) | Density (thread/cm) | Intensity (N/cm) | Weight Kg/m2 | Thickness Mm |
Air Permeability (m3/m2h) |
|||
| Warp | Weft | Warp | Weft | Surface | Steely Joining |
||||
| 16304 | 0.25 | 0.30 | 19 | 15.5 | 1200 | 800 | 0.39 | 0.60 | 15000 |
| 18304 | 0.25 | 0.30 | 21 | 17 | 1300 | 850 | 0.44 | 0.62 | 13900 |
| 18354 | 0.25 | 0.35 | 21 | 19 | 1300 | 850 | 4.48 | 0.66 | 12000 |
| 18384 | 0.25 | 0.38 | 21 | 14.5 | 1300 | 850 | 0.51 | 0.71 |
9500 |
product catalogue
1.filter cloth sieries
Made of pp,pe,pa(nylon) in plain,twill,satin construction,any dimension is available.
2.needle felt sieries
Made of polyester,polypropylene,acrilic,PPS,fiberglass,PTFE,P84,Nomex
3.dust filter bag sieries
Made of polyester,acrilic,PPS,fiberglass,PTFE,P84,Nomex
4.liquid filter bag sieries
Monofilament filter bag, multifilament filter bag,needle punched filter bag,made of pp,pe,pa(nylon),the filtering precision can reach 1micron.
5.other filter matierials
Including screen mesh,conveyor belt,filter cartridge etc.
Feature:
1. According to the weaving, polyester forming fabric can be divided into 4-shed single layer fabrics, 5-shed single layer fabrics, 8-shed single layer fabrics, 7-shed double layer fabrics, 8-shed double layer fabrics, 8-shed double and a half layer fabrics, 16-shed double and a half layer fabrics.
1).4-shed single layer fabrics is used in making culture paper, printing paper and packing paper.
2).5-shed single layer fabrics is used in making printed toilet paper, culture paper and packing paper. 8-shed single layer fabrics is mainly used to making bag paper,kraft paper,sheet lined board , corrugated paper and cardboard paper etc.
3)7-shed double layer fabrics is suitable for making quality printing paper and tissue paper etc.
4)8-shed double layer fabrics is suitable for making quality printing paper, offset paper, tissue paper and the surface pulp and inner pulp of the board paper etc.
5)8-shed,16-shed double and a half layer fabrics are suitable for various papers of the high speed paper machine.
2. According to the weaving, polyester dryer mesh can be divided into 3-shed, 4-shed.
3. According to the category, it can be divided into one and a half layer, double layer and rectangular wire fabric.
4. According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring join.
1).3-shed one layer and a half are suitable for drying papers below 70g.
2).4-shed double layer fabric is suitable for drying papers above 70g.
polyester plain weave fabric specification
| Weaving type | model | Thread diameter(mm) | Density(No.s/cm) |
Strenghth (N/cm) |
Air permeability (m3/m2h) |
||
| warp | weft | warp | weft | ||||
|
2-shed Plain Weaving fabric |
05082 | 0.7 | 0.8 | 4.7-5.0 | 4.8-5.0 | 940 | >20000 |
| 05102 | 1.0 | 1.0 | 4.7-5.2 | 4.3-5.0 | 1600 | >15000 | |
| 06702 | 0.7 | 0.7 | 8.0 | 7.0 | ≥1600 | 11000 | |
| 07102 | 0.7 | 1.0 | 6.6-7.0 | 4.3-4.6 | 1100 | >15000 | |
| 08552 | 0.55 | 0.55 | 7.5-8.0 | 8.5-9.0 | 850 | 850-6500 | |
| 09452 | 0.45 | 0.45 | 10.0 | 8.6 | 1600 | 1600 | |
| 09502 | 0.5 | 0.5 | 8.5-9.0 | 10-10.5 | 750 | >10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
|
3-shed Plain Weaving fabric |
08603 | 0.5 | 0.6 | 10.0 | 9.0 | 1600 | 14000 |
| 08903 | 0.9 | 0.9 | 7.8-8.0 | 5.0-5.5 | 2100 | 7500-8500 | |
| 07803 | 0.7 | 0.8 | 8.0 | 8.0 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22.0 | 14.5 | 1200 | 13000 | |
| 20403 | 0.3 | 0.4 | 22.0 | 14.5 | 1200 |
13500 |
|
Application:
Rectangular wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use all
