| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | micron filter cloth |
| Minimum Order Quantity: | 100 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000m per week |
| Material: | Pp Nonwoven Fabric With PTFE Support | Color: | White |
|---|---|---|---|
| Micron: | 0.1-1000micron | Type:: | Felt Filter |
| Package:: | Carton With Plastic Bag Inside | Certificate:: | ISO9001 |
| High Light: | micron filter fabric,polypropylene filter cloth |
||

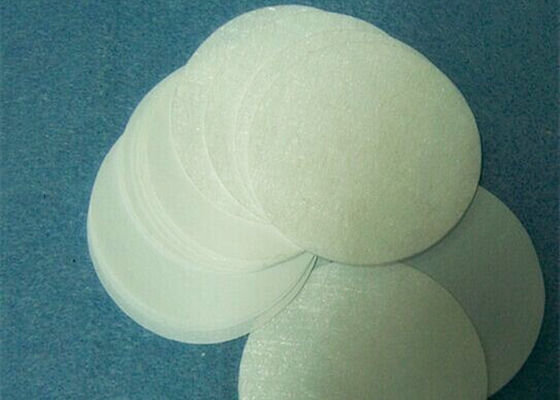

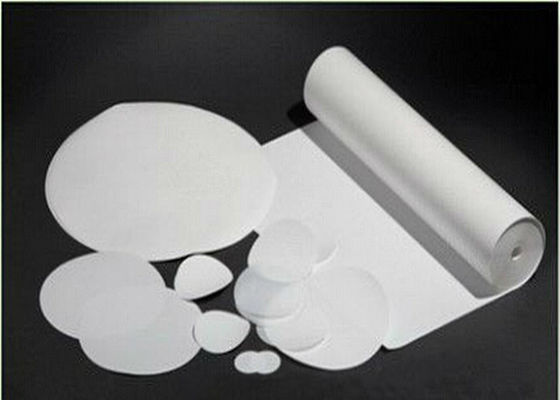

Industrial 1 Micron Filter Cloth PP PE PTFE Millipore Membrane Filter
Quick Detail:
Material : PE,polyester .
Micron rating : 0.5um ~800um
Good anti - abrasion
High temperature grade
Anti acid ,anti alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Description:
Low temperature resistance ( 80-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
PP Needle Felt Filterability Model: (Can be customized)
| Performance Parameter | Weight (g/sm) |
Thickness (mm ) |
Air Permeability (m3/m2/min) |
Tensile strength (N/5×20cm) |
Tensile Elongation (%) |
Operating Temp. (°C/°F) |
Max Surge Temp. (°C/°F) |
Suitable P.H. value | ||
| Model | / | / | / | Warp | Weft | Warp | Weft | / | / | / |
| PP-01 | 550 | 3.5 | 10 | 1000 | 1500 | 50 | 50 | 130/266 (Dry Heat) |
150/302 (Dry Heat) |
1~12 |
| PP-05 | 400 | 2.5 | 20 | 500 | 1000 | 60 | 60 | 1~12 | ||
| PP-10 | 400 | 2.2 | 24 | 500 | 1000 | 80 | 80 | 1~12 | ||
| PP-25 | 400 | 3 | 35 | 500 | 1000 | 85 | 85 | 1~12 | ||
| PP-50 | 320 | 3.5 | 100 | 500 | 600 | 100 | 80 | 1~12 | ||
| PP-75 | 320 | 3.5 | 130 | 500 | 600 | 100 | 80 | 1~12 | ||
| PP-100 | 350 | 3.8 | 100 | 500 | 500 | 100 | 100 | 1~12 | ||
| PP-200 | 400 | 3.8 | 130 | 500 | 600 | 110 | 100 | 1~12 | ||
Features of PP Micron Needle Felt for Liquid Filtration:
1. Material: high-grade PP felt
2. Long working life
3. Three-dimensional filtration, indepth filtration
4. Better filtration efficiency
5. Can be customized
We can change the normal PP needle felt performance by finishing treatment such as singe, calendar, heat set, coat and etc.
Filter Materials Physical and Chemistry Performance: (Superior to PE)
| Fiber | Anbrasion resistance | Weakly acid | Strongly acid | Weakly alkali | Strongly alkali | Solvent | Temperature(°C/°F) |
| PP | Excellent | Excellent | Excellent | Excellent | Gerneral | Excellent | 93/199.4-104/219.2 |
Note: If you have any questions, please contact us, we will give you detailed answers!
Applications:
Galvanic industry and Chemical industryPrefiltering solvents and acids
Prefilter to extend final filter lifeFinal filter for noncritical filtrations
Liquid-solid sepration with strong acid and alkali conditions filter press
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
