| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | polypropylene filter cloth |
| Minimum Order Quantity: | 200meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000sq.m per week |
| Material:: | Polypropylene | Type:: | Woven Filter |
|---|---|---|---|
| Usage:: | Liquid Filter | Working Temperature:: | Less 90 |
| Sample:: | Free | Weave:: | Plain/twill/satin |
| High Light: | filter fabric roll,filter press cloth |
||

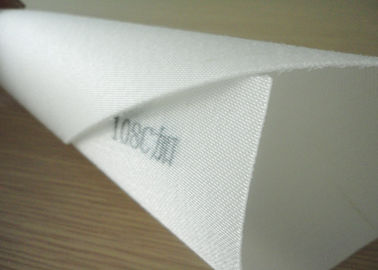

food grade woven pe/pp polypropylene filter cloth water used for food industry 108B/108C
Quick Detail:
High filtration efficiency ,long service life
Good anti-abrasion
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Good price quality
Laminated compound,grads counterchange
Description:
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Specifications:
| Material | Polypropylene / polypropylene scrim | ||||
| Weight(g/m2) | 500 | 550 | 600 | 650 | |
| Thickness(mm) | 2.0 | 2.2 | 2.4 | 2.6 | |
| Air permeability(m3/m3/min) | 12.6 | 10.8 | 9.6 | 8.4 | |
| Tensile Strength(N/5X20cm) | Warp | >960 | >1150 | >1350 | >1500 |
| Weft | >1060 | >1400 | >1650 | >1800 | |
| Tensile elongation(%) | Warp | <35 | <35 | <35 | <35 |
| Weft | <55 | <55 | <55 | <55 | |
| Working temperature(℃) | Continues | <90 | <90 | <90 | <90 |
| Instant | 110 | 110 | 110 | 110 | |
| Anti-acid | Excellent | Excellent | Excellent | Excellent | |
| Anti-alkali | Excellent | Excellent | Excellent | Excellent | |
| Anti-abrasion | Excellent | Excellent | Excellent | Excellent | |
| Finishing treatment | Singeing or high temperature press | ||||
Notices:
Polypropylene is a relatively low temperature fiber with quite excellent chemical resistance which finds use in specialist applications such as the chemical industry.
Applications:
Galvanic industry and Chemical industryPrefiltering solvents and acids
Prefilter to extend final filter lifeFinal filter for noncritical filtrations
Liquid-solid sepration with strong acid and alkali conditions filter press
Air filtration under 90℃
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
1. How to choose the right filter bags or filter material for your company?
Cause every filter has its own characteristics and parameters, so when we choose filter material for filter bags, we have to know the following parameters:
(1) Working temperature ( Continuous / Peak)
(2)Measurement of filter bags
(3) Gas’ chemical properties
(4) Working pressure
(5) Emission concentration
2.How to assure the product quality?
If you need , we can offer the sample for you, after your confirmation, we can produce the products according to your requirement.
3.What shipments are available?
Normally, we ship goods by sea,air or express. Special requirement can also be acceptable.
4.Sample rule
We offer you free samples as your requirement.If you are the first time to cooperate with us ,the postage should be paid by you. When you place the order ,we will return back to you in the next cooperation.
