| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | polyester filter cloth |
| Minimum Order Quantity: | 100 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000m per week |
| Usage:: | Liquid Filter | Working Temperature:: | Less 130 |
|---|---|---|---|
| Sample:: | Free | Weave:: | Plain/twill/satin |
| Material:: | Polyester | Type:: | Woven Filter |
| High Light: | micron filter cloth,micron filter cloth |
||

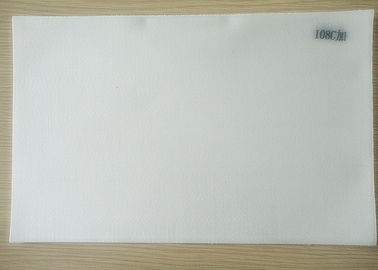

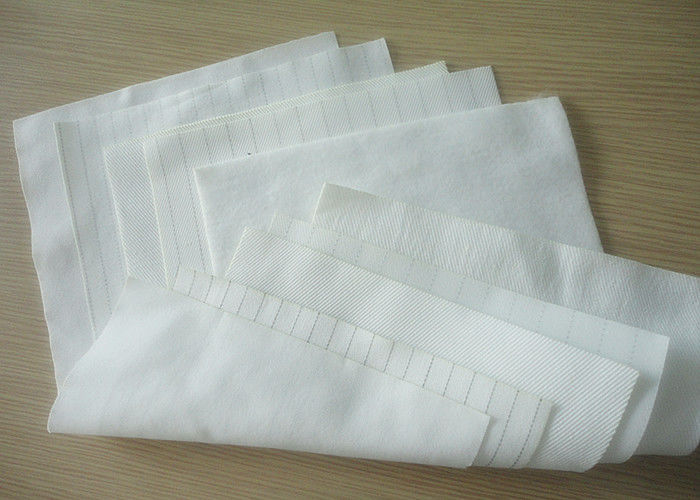

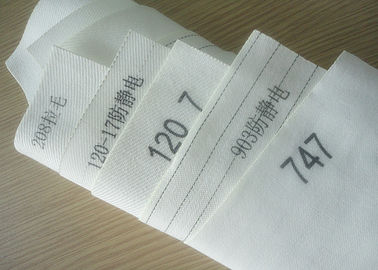

Industry PP / PA / PE Polyester Filter Cloth Woven Fabric
Quick Detail:
Normal temperature flue gas filtration felt
100% polyester
1.5mm to 3mm thickness
Weight from 350 to 800s
Width 2.1 meter maximum
High porosity ,good air permeability
Good price quality
Laminated compound,grads counterchange
Description:
High efficiency of removing dust particle
Easy clear and long useful life
Smooth surface after Singeing,Heat setting,Calendering.
Specifications:
| Material | Polyester Fiber /Polyester scrim | |||||
| Weight(g/m2) | 400 | 450 | 500 | 550 | 600 | |
| Thickness(mm) | 1.4 | 1.6 | 1.8 | 2.0 | 2.2 | |
| Air Permeability(m3/m2/min) | 21 | 18 | 16 | 13 | 12 | |
|
Tensile strength |
Warp | >1000 | >1000 | >1100 | >1100 | >1150 |
| Weft | >1350 | >1400 | >1500 | >1550 | >1600 | |
| Elongation (%) | Warp | < 25 | < 25 | < 25 | < 25 | < 25 |
| Weft | < 45 | < 45 | < 45 | < 45 | < 45 | |
|
Working |
Continues | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 |
| Instant | 150 | 150 | 150 | 150 | 150 | |
| Finishing Treatment | Singeing,Het setting,Calendering | |||||
| Technical Parameters | ||
| Item | Parameters | |
| Product Name | Polyester (PET) | |
| Weight | 500±5% g/m² | |
| Thickness | 1.8±10% mm | |
| Air Permeability | 12 m³/ m²/min | |
| Breaking Strength | Warp | >1200 N/50*200mm |
| Weft | >1600 N/50*200mm | |
| Breaking Elongation | Warp | <30 % |
| Weft | <45 % | |
| Working Temperature | Continuous | 130 ℃ |
| Instant | 150 ℃ | |
| Finish Treatment |
Singeing Calendering Laminating Oil&Water Repellent |
|
Notices:
Polyester felt can be produced by ordinary staple scrim or high strength filament scrim, due to the customer demands,weight ranges from 350 g/m2 to 800 g/m2.
Applications:
Cement industry Asphalt industry
Power Plants Coal industry
Carbon black industry Chemical industry Smelting industry
Based on 5 production line and Germany equipment,Philis is developping more and more types of material to match customer's requirement from high temperature material to normal temperature material,from pure fiber material to mixed fiber material,all these to be matched customer's working condition.
1) Nonwoven fabrics,Geo-textile Bag
2) Nonwoven Needle felts
3) Woven filter cloths
4) Air Slide Belts
5) Dust&Liquid filter bag
6) PE/PA, Stainless steel Filter Mesh Fabrics
7) Filtration Parts
8) Polyester Mesh Belt Fabric
Sample Service
A4 size Samples are all free
Sample Delievary Flow:
Sample Inquiry→Sample Specification Confirmation→Stock Check→Courier Service Suppliers and Contact Conmfirmation→Delievary→Delievary Comfirmation
Contact Person: Ms. wendy
Fax: 86-571-85236111
