Nomex Filter Bag with High Air to Cloth Ratio Abrasion Resistance and High Temperature Resistant for Cement Kiln Dust Collection

Product Details:

Place of Origin:	China
Brand Name:	Philis
Certification:	ISO
Model Number:	aramid filter

Payment & Shipping Terms:

Minimum Order Quantity:	100 meter
Price:	Negotiable
Packaging Details:	standard export package
Delivery Time:	within 10 days
Payment Terms:	T/T
Supply Ability:	100000m per week

Contact Now

Detailed Product Description

Type::	Filter Felt	Usage::	Air Filter
Material::	Aramid	Place Of Origin::	Zhejiang, China (Mainland)
Certification::	ISO9001:2008	Technics::	Nowoven Needle Punched
Highlight:	Air Filter Fabric , filter cloth for filter press

Nomex Filter Bag Featuring High Air to Cloth Ratio and Abrasion Resistance Ideal for Cement Kiln Dust Collection Systems

Product Overview

Aramid filter bags, including Acrylic dust collection filter bags, PE (Polyester), PPS, and P84 variants, designed for high-performance industrial filtration applications.

High temperature resistant
Resists flexing and abrasion
Excellent moisture effect resistance
Good chemical resistance
Weight: 450-650gsm
High-end German needle felt line
Experienced production & technical team

Product Description

Cement kiln dust collectors equipped with Aramid filter bags feature high temperature resistance and water repellent treatment. Aramid filter bags offer superior total economies in filtration systems due to higher air to cloth ratios, enhanced temperature resistant function, and extended wearing life.

Technical Specifications

Article Name	Aramid needled felt
Ingredients	Fiber: 100% Aramid Scrim: 100% Aramid
Weight	500 g/m²
Thickness	2±2 mm
Density	0.24 g/m³
Permeability	150 L/dm².min
Tensile breaking strength (N/5cm)	Warp: ≥800 Weft: ≥1000
Elongation @200N/5cm	Warp: <5 Weft: <5
Maximum shrink of 90 mins	Temperature: 250°C %: ≤1
Service Temperature (°C)	Continuous: 200 Instant: 240
Finishing	Singeing, calendaring

Series	Aramid
Fibre	100% Meta-Aramid staple fibre
Scrim	100% Meta-Aramid
Weight	400-650g/m² (customized)
Finishing	Heat setting, single side singeing, calendering (double sides finishing available upon request)
Roll length and width	Can be customized
Packaging	In rolls
Applications	Asphalt mixing plant, blast furnace gas, cement plant, smelting, steel plant, etc.
Delivery Time	7-15 days
Payment Terms	Can be negotiated

Filter Bag Types & Configurations

Filter bags are the most important component in dust collectors, influencing collection efficiency and working temperature. Bag renewal creates major maintenance costs in bag houses, making bag lifetime the primary factor affecting operational costs and working conditions.

Three Types:
Woven fabric dust bag
Non-woven fabric bag
Compound filter material

Three Shapes:
Round type
Flat type
Customized type

Filtering Methods:
Inner filtering
Outer filtering

Round Style (External Filtration)

Diameter (mm)	Length (mm)	Applicable For
120	2000, 2400, 2800, 3200, 3600, 4000, 4400, 4800, 5200, 5600, 6000	Pulse jet bag house
130	Same as above	Pulse jet bag house
152	Same as above	Pulse jet bag house
200	Same as above	Pulse jet bag house

Round Style (Internal Filtration)

Diameter (mm)	Length (mm)	Applicable For
180	6000, 8000, 10000, 12000	Section reverse flow bag house
250	Same as above	Section reverse flow bag house
300	Same as above	Section reverse flow bag house

Flat Style

Diameter (mm)	Length (mm)	Applicable For
800	2000, 3000, 4000, 5000, 6000	Reverse flow bag house
900	Same as above	Reverse flow bag house

Envelope Style

Dimensions (mm)	Applicable For
1500×750×25 (length×width×thickness)	Side insert bag house

Applications

Aramid filter bags are designed for higher temperature dust filtration applications, widely used in asphalt mixing plants, cement kiln smoke dust filtration in cement plants, steel melting furnace smoke filtration, and similar industrial processes.

Aramid filter bags provide optimal total economies in filtration systems through higher air to cloth ratios, superior temperature capability, and extended working life.

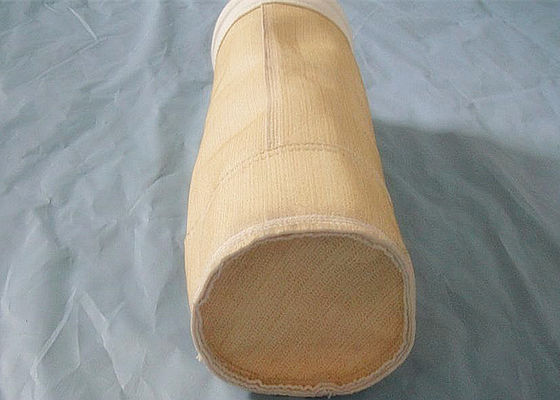

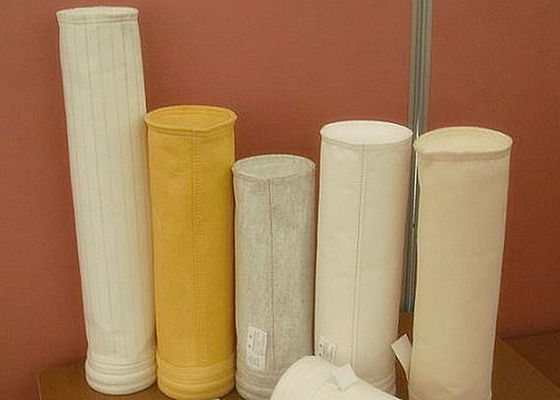

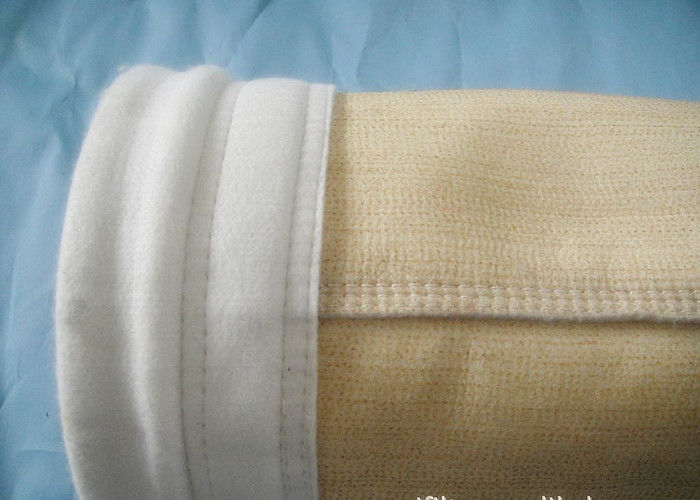

Product Images

Manufacturer Information

Hangzhou Philis Filter Technology Co., Ltd. has grown to become one of the leading manufacturers of dust filtration spare parts in China. We operate imported filter needle felt production lines from France (ASSELIN) and produce high-quality non-woven products according to customer requirements.

Based on 8 needle felt production lines, our annual production capacity reaches 20,000 square meters per day. We manufacture a comprehensive range of filter fabrics including polyester, acrylic, fiberglass, PPS, Aramid, P84, PTFE, woven filter fabrics, and more.

We introduced German high technology to develop China's first automated filter bag production line, helping filter bag production factories significantly reduce labor costs while improving work efficiency. The advanced technology and simple operation of our automated filter bag production line have earned widespread customer praise.

Frequently Asked Questions

Quantity Requirements?

Dust Collector Type?
Is it a shaker, reverse air, top load, or pulse jet dust collector?

Installation Details?
How does the bag load? What is the cell plate size?

Filter Bag Configuration?
What is the top and bottom configuration of the filter bag?

Material Specifications?
What is the material of the dust collector filter bag?

Operating Conditions?
If you don't know the material, do you know the inlet temperature, material being filtered, and/or if the material is abrasive or corrosive?

Additional Requirements?
Anything else that is important to you, or we may be missing? i.e. ground wire, wear strip, membrane, etc.
