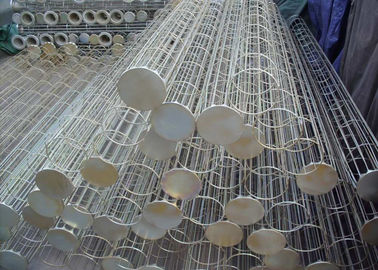

Galnanized Steel Ventury Dust Filter Bag Cage For Dust Bag House

Galnanized Steel Ventury Dust Filter Bag Cage For Dust Bag House

  • Galnanized Steel Ventury Dust Filter Bag Cage For Dust Bag House
  • Galnanized Steel Ventury Dust Filter Bag Cage For Dust Bag House
  • Galnanized Steel Ventury Dust Filter Bag Cage For Dust Bag House
Galnanized Steel Ventury Dust Filter Bag Cage For Dust Bag House
Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: bag filter cage
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: standard export package
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Color: Silver Size: According To Your Size
Surface Treatment: Galvannized Or Silicon Power Plated Material: Carbon Steel / Ss 304, 316, 316L
Type Of Cage: Any Type Thickness: Φ3, 3.2, 3.5, 3.8, 4.
High Light:

filter bag cages

,

filter bag cages and venturi

Organic Silicone Filter Bag Cage for Bag House





Quick Detail:



1. Ventury filter cages -ISO9001:2008 Certified
2. Carbon or stainless steel
3. Galnanized or silicon plated surface
4. Any siz





Description:



bag Filter cage with Zinc galvanized Surface Finish

using the advanced hot-melt jointing technology. The jointing method of bag bottom, side and collar ring all are hot melt welded, that can avoid the pinholes from seam filter bag.

The Filter bag cage is a rib filter cage and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.





Specifications:



Ventury filter cages



The ventury filter cages from China manufacturer is a rib of a filter bag and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.





1. material of cage: carbon steel / SS304, 316, 316L

2. type of cage: any type

3. type of the horizontal bar: Any type

4. surface treatment: Galvannized or silicon power plated





The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.



The thichkness of the longitudinal wire can be Φ3, 3.2, 3.5, 3.8, 4.





Notices:



We make filter cages of different shapes and dimensions to meet customers’ requirements. To supply with perfect testing for our products. Our cost is under utmost lower control because of our assembly line production. Precise, pragmatic and prudent working styles are adopted in every working procedure at CNP. We are highly responsible for every product component In addition, advanced manufacture equipment and scientific management made each finished product become the first selection of customers. By offering reliable assurance to integrate product quality with international standards with advanced equipment and technology, Professional production of dust cage skeleton, and can also design, develop, and manufacture as the clients request.





Specifications
Types: Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires: 8/10/12/16/20/24 vertical wires
Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness: Wire thickness ranges are 2mm to 5mm
Material: Carbon Stee, Galvanized Steel, Stainless Steel
Finishment: Epoxy, PVC vinyl coating
Packaging: Cages are packed in custom designed cartons
Usage: Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.

Advantages: 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel
4. economical maintenance(almost no Maintenance required)
5.prominent effect in removing dust from Filter by pulsing 6.easy to install
7.no ventury installation required
Standard Technical Data
Round Style Diameter(mm) Bag Diameter(mm) Length(mm)
115 120 2000,2400 2800,
3200,3600,4000,
4400,4800,5200,
5600,6000,7000


125 130
147 152
195 200
Flat Style Perimeter Bag Perimeter Length(mm)
800 800 2000 3000 4000
5000 6000


900 900
Envelope Style Length Width Thickness Bag Length Width Thickness
1500X750x25mm

1500X750x25mm





Specification

Goods Name

Standard

Description

Goods Name

Standard

Description

Clamps

φ180



Spring curb

120*2

Normal quenching steel belt

φ230

130*2

φ250

150*2

φ260

200*2

φ292

292*2

φ300

300*2

Hoop

φ160

 φ300-φ270 using wire rod ofφ4.2

120*2.5

φ170

130*2.5

φ180

150*2.5

φ200

182*2.5

φ210

202*1.3

Quenching stainless steel belt

φ250

φ180 using wire rod of  φ3.3

127*1.5

φ260

127*1.9

If it is highly corrosive, we can use titanium curb

φ280

130*2.5

φ292

φ260-φ180 using wire rod of φ3.8

150*2.5

φ300

129.6*2.5

φ400

280*2

φ615

Pendant chain device

Hung huang, pendant chain



Cap

180

upper cap lower cap

200

230

Venturi tube

Carbon steel

250

Aluminum

292

Stainless steel

300

Unifying covering cap and  venturi tube(integration)

Filter cage

Material: hard-drawn wire

Galvanization treatment

Normal

Yellow

White zinc plated treatment

High quality

Light silver

Organic silicon treatment



Black

Material: stainless steel

201-316L



Any special requirement and production can be processed according to buyer’s sample(with drawing)

















Applications:



Power Stations
Filtered dust
Flue ash, discharging flue ash
Coal dust


Building and Construction
Cement, furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals,
Pure clay, phosphates, magnesite concentrate, finely ground
fluorid, production of aluminum


Chemical Industry
Thomas meal (Fertilizer)
Rubber compounds, sinter dust, catalysts
Sodium sulfate
Soap powder



Galnanized Steel Ventury Dust Filter Bag Cage For Dust Bag House 0Galnanized Steel Ventury Dust Filter Bag Cage For Dust Bag House 1Galnanized Steel Ventury Dust Filter Bag Cage For Dust Bag House 2



Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
