Place of Origin: | China |
Brand Name: | Philis |
Certification: | ISO |
Model Number: | nylon filter mesh |
Minimum Order Quantity: | 100 meters |
---|---|
Price: | Negotiable |
Packaging Details: | standard export package |
Delivery Time: | within 10 days |
Payment Terms: | T/T |
Supply Ability: | 10000m per week |
Usage:: | Liquid Filter | Type:: | Filter Elements |
---|---|---|---|
Material:: | Nylon | Color:: | White |
Sample:: | Free | Certification:: | ISO9001;SGS;FDA |
High Light: | screen mesh filter,dust filter mesh |

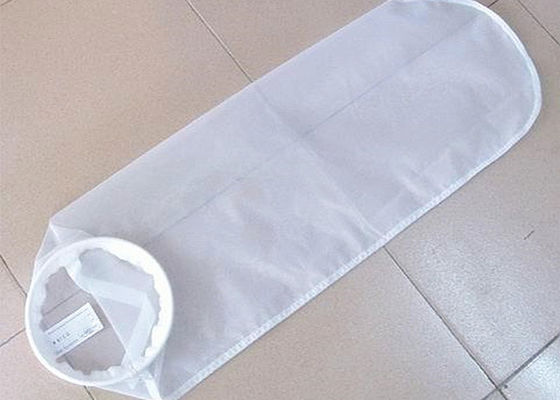

PA / nylon filter mesh / nylon mesh fabric filter bag
Quick Detail:
Nylon / PA filter mesh
FDA Certificate
ISO9001:2008 Certified management system
Feature:industrial filtration and separation
Nylon monofilament mesh is plain weaving, materials is PA6 and PA66, good heat setting and washing, without silicon and heavy metal, quality can meet FDA standard, widely used in all kinds of industrial filtration and separation, such as chemicals, pharmaceutical, agriculture, food, ect., which can be made into filter bags, insert plastic mould filter, ect
Specifications
Details sheet: 4T-150T for your choose
Model | Specification (/cm) | Mesh count (mesh/inch) | Thread Diameter(um) | Mesh opening(um) | Open Area(%) |
Thickness (um) |
Weight (g/m2) |
NL4/1931 | 4 | 10 | 550 | 1931 | 60 | 1100 | 251 |
NL5/1485 | 5 | 13 | 500 | 1485 | 55 | 1000 | 270 |
NL5/1535 | 5 | 13 | 450 | 1535 | 59 | 900 | 218 |
NL6/1254 | 6 | 15 | 400 | 1254 | 57 | 800 | 199 |
NL7/1068 | 7 | 18 | 350 | 1068 | 56 | 700 | 183 |
NL8/891 | 8 | 20 | 350 | 891 | 51 | 700 | 203 |
NL8/990 | 8 | 20 | 250 | 990 | 63 | 500 | 104 |
NL9/853 | 9 | 24 | 250 | 853 | 59 | 500 | 125 |
NL10/743 | 10 | 25 | 250 | 743 | 55 | 500 | 130 |
NL10/693 | 10 | 25 | 300 | 693 | 48 | 600 | 187 |
NL12/578 | 12 | 30 | 250 | 578 | 48 | 500 | 156 |
NL12/528 | 12 | 30 | 300 | 528 | 40 | 600 | 224 |
NL14/410 | 14 | 35 | 300 | 410 | 33 | 510 | 261 |
NL14/509 | 14 | 35 | 200 | 509 | 51 | 340 | 116 |
NL16/421 | 16 | 41 | 200 | 421 | 45 | 340 | 136 |
NL16/371 | 16 | 41 | 250 | 371 | 35 | 425 | 213 |
NL17/384 | 17 | 42 | 200 | 384 | 43 | 340 | 139 |
NL18/332 | 18 | 45 | 220 | 332 | 36 | 374 | 181 |
NL20/347 | 20 | 50 | 150 | 347 | 48 | 255 | 93 |
NL20/297 | 20 | 50 | 200 | 297 | 35 | 340 | 166 |
NL24/264 | 24 | 60 | 150 | 264 | 40 | 255 | 112 |
NL28/235 | 28 | 70 | 120 | 235 | 43 | 204 | 84 |
NL28/205 | 28 | 70 | 150 | 205 | 33 | 255 | 131 |
NL30/211 | 30 | 76 | 120 | 211 | 40 | 204 | 91 |
NL32/210 | 32 | 80 | 100 | 210 | 45 | 170 | 66 |
NL36/176 | 36 | 90 | 100 | 176 | 40 | 170 | 75 |
NL40/149 | 40 | 100 | 100 | 149 | 35 | 170 | 83 |
NL44/126 | 44 | 110 | 100 | 126 | 31 | 170 | 91 |
NL43/151 | 43 | 110 | 80 | 151 | 42 | 136 | 58 |
NL48/127 | 48 | 120 | 80 | 127 | 37 | 136 | 64 |
NL56/117 | 56 | 142 | 60 | 117 | 43 | 102 | 42 |
NL59/108 | 59 | 150 | 60 | 108 | 41 | 102 | 45 |
NL64/95 | 64 | 163 | 60 | 95 | 37 | 102 | 49 |
NL72/88 | 72 | 183 | 50 | 88 | 40 | 85 | 38 |
NL76/79 | 76 | 193 | 52 | 79 | 36 | 88 | 43 |
NL80/74 | 80 | 203 | 50 | 74 | 35 | 85 | 42 |
NL88/71 | 88 | 224 | 42 | 71 | 39 | 71 | 33 |
NL96/62 | 96 | 244 | 42 | 62 | 35 | 76 | 36 |
NL100/55 | 100 | 254 | 42 | 55 | 31 | 80 | 37 |
NL104/51 | 104 | 264 | 42 | 51 | 29 | 71 | 39 |
NL110/46 | 110 | 279 | 42 | 46 | 25 | 76 | 41 |
NL120/39 | 120 | 305 | 42 | 39 | 21 | 80 | 45 |
NL120/43 | 120 | 305 | 38 | 43 | 25 | 65 | 37 |
NL120/46 | 120 | 305 | 35 | 46 | 29 | 60 | 31 |
NL130/32 | 130 | 330 | 43 | 32 | 17 | 73 | 51 |
NL130/40 | 130 | 330 | 35 | 40 | 25 | 60 | 34 |
NL140/35 | 140 | 356 | 35 | 35 | 22 | 60 | 36 |
NL150/34 | 150 | 381 | 31 | 34 | 25 | 53 | 30 |
Products details:
1. High tension and smooth surface
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear and easy cleaning
7. We can do as customer's requests and sample.
Samples available under freight burden by buyer, the cost refund after order is fixed
Applications:
widely used in filteration (wather, nut milk, flour, juices. soybean milk, oil, cheese, air purification, power coating filtering in industry etc. ), printing and dyeing, the industries of petroleum, chemical, metallurgy, cement, environmental dedusting etc.
Can be pieces, bags, discs, any size as you request
Usage:
The nylon mesh food grade filter mesh widely used in all kinds of filtration and separation, such as:
1. air filter mesh in air conditioner filter
2. liquid filter mesh for milk, juice, cheese, soya bean ect.
3. flour, solid mesh for milling
4. We can deep produce it into filter bags, filter disc and filter strainers.
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
