| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | polyester filter cloth |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000m per week |
| Type:: | Woven Filter | Weaving:: | Plain, Twill, Satin |
|---|---|---|---|
| Width:: | 900-2600 Mm | Length:: | 100 M/roll |
| Material:: | PP, Polyester, Polypropylene | Usage:: | Air/ Liquid Filter |
| High Light: | micron filter cloth,micron filter cloth |
||

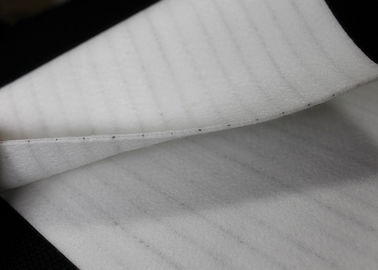

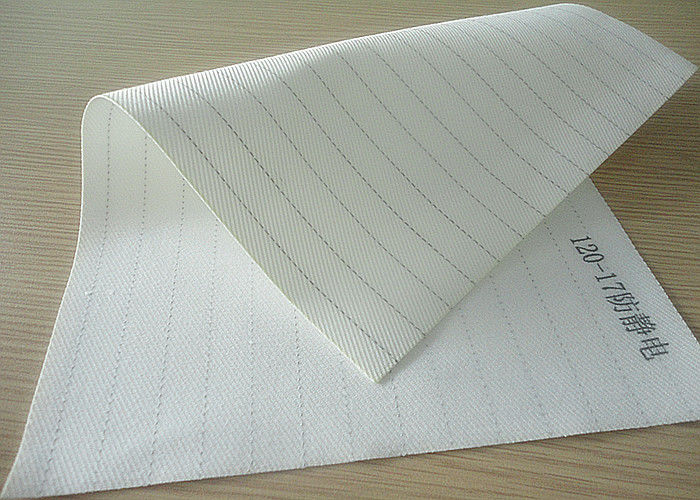

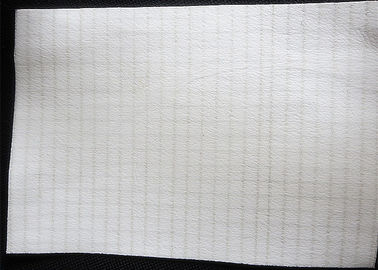

Anti static PE Polyester Filter Cloth Woven / Nonwoven Filter Fabric
Quick Detail:
Normal temperature flue gas filtration felt
100% polyester
1.5mm to 3mm thickness
Weight from 350 to 800s
Width 2.1 meter maximum
High porosity ,good air permeability
Good price quality
Laminated compound,grads counter change
Description:
High efficiency of removing dust particle
Easy clear and long useful life
Smooth surface after Singeing,Heat setting,Calendering.
Specifications:
| Material | Polyester Fiber /Polyester scrim | |||||
| Weight(g/m2) | 400 | 450 | 500 | 550 | 600 | |
| Thickness(mm) | 1.4 | 1.6 | 1.8 | 2.0 | 2.2 | |
| Air Permeability(m3/m2/min) | 21 | 18 | 16 | 13 | 12 | |
|
Tensile strength (n/5 x 20cm) |
Warp | >1000 | >1000 | >1100 | >1100 | >1150 |
| Weft | >1350 | >1400 | >1500 | >1550 | >1600 | |
| Elongation (%) | Warp | < 25 | < 25 | < 25 | < 25 | < 25 |
| Weft | < 45 | < 45 | < 45 | < 45 | < 45 | |
|
Working temperature(℃) |
Continues | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 |
| Instant | 150 | 150 | 150 | 150 | 150 | |
| Finishing Treatment | Singeing,Het setting,Calendering | |||||
Notices:
Polyester felt can be produced by ordinary staple scrim or high strength filament scrim, due to the customer demands,weight ranges from 350 g/m2 to 800 g/m2.
Applications:
Cement industry Asphalt industry
Power Plants Coal industry
Carbon black industry Chemical industry Smelting industry
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Aramid ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
