| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | dust filter cloth |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000m per week |
| Width:: | Up To 210cm | Certificate:: | ISO |
|---|---|---|---|
| Usage:: | Air Filter | Material:: | PP,PE |
| Length:: | 50m/100m | Application:: | Air, Or Dust Filter Media |
| High Light: | filter press cloth,filter fabric roll |
||

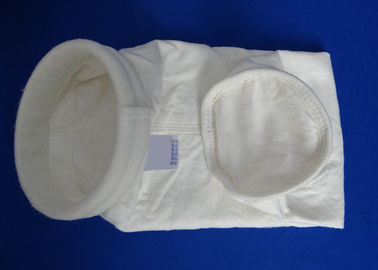

Polyester / PP Dust Filter Cloth , Non-toxic Dust Collector Filter Bag
Quick Detail:
dust filter cloth
1. Non - toxic and odorless
2. Long service life
3. Good stiffness, easy to pleat
4. High air permeability
5. High dust holding
Description:
Excellent resistant to hydrolysis, acids and alkalies.
good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Specification
| Technical Data Sheet | |||
| 1 | Article name | Polyester filter bag | |
| 2 | Composition | ||
| Fiber | Polyester | ||
| Scrim | Polyester | ||
| 3 | Normal Bag Size | Daimeter | 120-160mm or as request |
| Length | 2000-7000mm or as request | ||
| 4 | Aplication | cement/steel/ Phosphate/power factory | |
| 5 | Weight | 300-700g/m2 | |
| 6 | Thickness | 1.5-2.5mm | |
| 7 | Ventilation Rate(m3/m2/min) | 6-24 | |
| 8 | Tension at break(N/5X20CM) | T | 900 |
| W | 1200 | ||
| 9 | Elongation at break% | T | <35 |
| W | <50 | ||
| 10 | Working temperature(℃) | Continuous | 130 |
| Instantaneous | 140 | ||
| 11 | Resistance to acid | Good | |
| 12 | Resistance to alkali | Common | |
| 13 | Post-treatment | Singeing,Glazing,Coating | |
| Heat setting,PTFE Membrance | |||
Notices:
1. Materials avaliable: polyester, polypropylene,Nomex , PPS, PTFE, P84, Acrylic , glassfiber .
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Applications:
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
1.Free sample can be sent to you.
2.We supply the technical support,if you get problems about which type to choose and how to install,we can give you the professional suggestions.
3.We get a super forwarder,we can save a lot for you on the shipping cost.
4.We supply good packing way,which ont only confirming the goods's safety,bu also saving the shipping cost.
5.We supply related certifications,which you needs,which one we will try to deal with.
