| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | dust filter cloth |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000m per week |
| Width:: | Up To 210cm | Certificate:: | ISO |
|---|---|---|---|
| Usage:: | Air Filter | Material:: | PP,PE |
| Length:: | 50m/100m | Application:: | Air, Or Dust Filter Media |
| High Light: | filter press cloth,filter fabric roll |
||

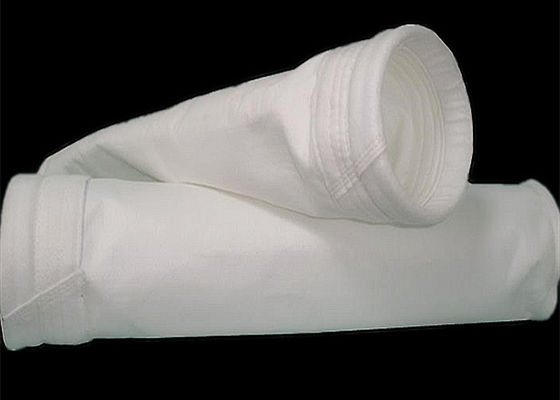

Cement Plant Polyester Filter Bag Nonwoven with PTFE Membrane
Description:
Excellent resistant to hydrolysis, acids and alkalies.
good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Quick Detail:
dust filter cloth
1. Non - toxic and odorless
2. Long service life
3. Good stiffness, easy to pleat
4. High air permeability
5. High dust holding
Specification
| Technical Data Sheet | |||
| 1 | Article name | Polyester filter bag | |
| 2 | Composition | ||
| Fiber | Polyester | ||
| Scrim | Polyester | ||
| 3 | Normal Bag Size | Daimeter | 120-160mm or as request |
| Length | 2000-7000mm or as request | ||
| 4 | Aplication | cement/steel/ Phosphate/power factory | |
| 5 | Weight | 300-700g/m2 | |
| 6 | Thickness | 1.5-2.5mm | |
| 7 | Ventilation Rate(m3/m2/min) | 6-24 | |
| 8 | Tension at break(N/5X20CM) | T | 900 |
| W | 1200 | ||
| 9 | Elongation at break% | T | <35 |
| W | <50 | ||
| 10 | Working temperature(℃) | Continuous | 130 |
| Instantaneous | 140 | ||
| 11 | Resistance to acid | Good | |
| 12 | Resistance to alkali | Common | |
| 13 | Post-treatment | Singeing,Glazing,Coating | |
| Heat setting,PTFE Membrance | |||
Notices:
1. Materials avaliable: polyester, polypropylene,Nomex , PPS, PTFE, P84, Acrylic , glassfiber .
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Applications:
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
1.Free sample can be sent to you.
2.We supply the technical support,if you get problems about which type to choose and how to install,we can give you the professional suggestions.
3.We get a super forwarder,we can save a lot for you on the shipping cost.
4.We supply good packing way,which ont only confirming the goods's safety,bu also saving the shipping cost.
5.We supply related certifications,which you needs,which one we will try to deal with.
