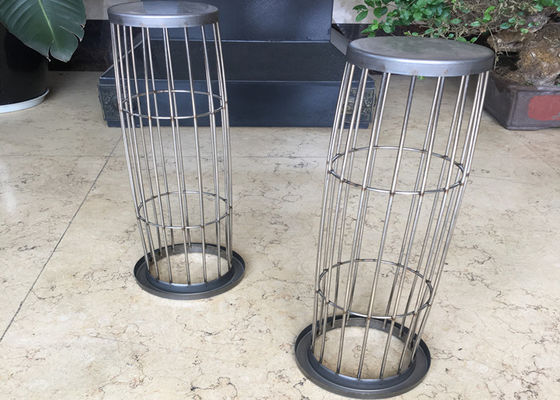

Cement And Lime Industries Envelope Bag Filter Cage

Cement And Lime Industries Envelope Bag Filter Cage

  • Cement And Lime Industries Envelope Bag Filter Cage
  • Cement And Lime Industries Envelope Bag Filter Cage
Cement And Lime Industries Envelope Bag Filter Cage
Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: bag filter cage
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: standard export package
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Color: Black Surface Treatment: Galvannized Or Silicon Power Plated
Material: Carbon Steel/SS304, 316, 316L 2205SS Type Of Cage: Any Type
Thickness: Φ3, 3.2, 3.5, 3.8, 4 Certification:: ISO9001:2008
High Light:

baghouse filter cages


baghouse cages

Venturis and Filter Bag Cages for Dust Collection Systems 316L, 2205 Stainless Steel



Quick Detail:


1. Ventury filter cages-ISO9001:2008 Certified
2. Carbon or stainless steel
3. Galnanized or silicon plated surface
4. Any size





Dust Collector Cages are to fit most baghouse makes and models. Common cage constructions consist of 10, 12 or 20 vertical wires. Standard horizontal ring spacings are 4”, 6” or 8”.

If clean air plenum height restrictions are a problem, two piece cages are available. For areas where moisture or acid corrosion are present we provides a range of materials and coatings.





The filter cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.


1.material of cage: carbon steel or SS304,316,316L, 2205ss

2.type of cage: any style

3.type of the horizontal bar: round ring or star or envelop or oval

4.surface treatment: zinc-galvanization or silicon coating or epoxy of connection: clamp, chuck, claw join connection

6. Nos of wires: 8,10,12,16,20,24

7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.


The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.


The thichkness of the longitudinal wire can be Φ3, 3.2, 3.5, 3.8, 4.





We make filter cages of different shapes and dimensions to meet customers’ requirements. To supply with perfect testing for our products. Our cost is under utmost lower control because of our assembly line production. Precise, pragmatic and prudent working styles are adopted in every working procedure at CNP. We are highly responsible for every product component In addition, advanced manufacture equipment and scientific management made each finished product become the first selection of customers. By offering reliable assurance to integrate product quality with international standards with advanced equipment and technology, Professional production of dust cage skeleton, and can also design, develop, and manufacture as the clients request.



The Mian Specification Parameters of The Bag Cage


Type Circle type,Oval type,Flat type,Special-shaped
Material Carbon steel,Galvanized steel wire,Stainless steel,Titanium wire
Finish treatment Galvanized,organic silicon spray,anti-corrosion treatment
The number of lingitudinal bar 8~24 wires(Circle Type),10~16 wires (Oval Type)
Structure Single section type bag cage,screw joint type,double wire PJE type,single wire PJE type,etc
Configuration Venturi,protection nozzle stub


Carbon Steel/Mild Steel
Galvanized Steel
304 Stainless Steel
316 Stainless Steel
Epoxy Coated (High Temp <325°)
Inconnel 600 or 601
Vertical Wires
10, 12, 20, 5, 6, 8, 16, 24
Wire Gauges
10, 11, 12, 7, 9, 13
4''-6 1/8''
Cage Shape
Cage Top Styles
Rolled Flange (Turned Down Flange)
Split Collar (Rolled Band)
All Wire
Split Ring
Cage Bottom Styles
Wire Formed
Aluminum, Carbon steel, Galvanized and Stainless steel
Attached (riveted) or drop-in/removable designs
Lengths: 3''-6''





Entex products are widely used for purifying dusty air in industries like metallurgy, steel, cement, mechanical, electricity, chemicals, waste incineration, concrete mixing and other conditions of complex industries.
Entex products are sold well both at domestic and abroad, highly praised by our customers.
We can supply you with this product in a large quantity at wholesale prices.
And we will give you the best after-sales service if you buy our products.
Pls feel free to contact us if you have any questions!

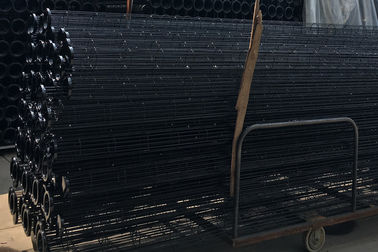

Cement And Lime Industries Envelope Bag Filter Cage 0



Cement And Lime Industries Envelope Bag Filter Cage 1


Cement And Lime Industries Envelope Bag Filter Cage 2



Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape according to your drawing.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge, you only have to pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment. For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.

Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Please feel free to contact us if you have any questions.
