| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | needle felt filter |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000m per week |
| Filtration Grade:: | Hepa Filter | Function:: | Non Woven Fabric Air Filter |
|---|---|---|---|
| Certificate:: | ISO9001:2008 | Usage:: | Powder Filter |
| Technics:: | Nowoven Needle Punched | Type:: | Non-woven Filter |
| High Light: | needle filter fabric,woven filter fabric |
||

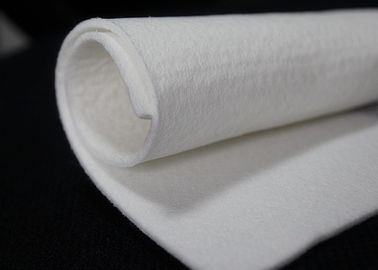

Low Medium Temperature Needle Felt Filter Air Filtration Felt Polyester, Polypropylene, Acrylic
Quick Detail:
Normal temperature flue gas filtration felt
100% polyester
1.5mm to 3mm thickness
Weight from 350 to 800s
Width 2.1 meter maximum
High porosity ,good air permeability
Good price quality
Laminated compound,grads counterchange
Description:
High efficiency of removing dust particle
Easy clear and long useful life
Smooth surface after Singeing,Heat setting,Calendering.
Specifications:
| Material | Polyester Fiber /Polyester scrim | |||||
| Weight(g/m2) | 400 | 450 | 500 | 550 | 600 | |
| Thickness(mm) | 1.4 | 1.6 | 1.8 | 2.0 | 2.2 | |
| Air Permeability(m3/m2/min) | 21 | 18 | 16 | 13 | 12 | |
|
Tensile strength (n/5 x 20cm) |
Warp | >1000 | >1000 | >1100 | >1100 | >1150 |
| Weft | >1350 | >1400 | >1500 | >1550 | >1600 | |
| Elongation (%) | Warp | < 25 | < 25 | < 25 | < 25 | < 25 |
| Weft | < 45 | < 45 | < 45 | < 45 | < 45 | |
|
Working temperature(℃) |
Continues | ≤130 | ≤130 | ≤130 | ≤130 | ≤130 |
| Instant | 150 | 150 | 150 | 150 | 150 | |
| Finishing Treatment | Singeing,Het setting,Calendering | |||||
| Material | Acrylic fiber | |
| Weight(g/m2) | 500 | |
| Thickness(mm) | 2.0 | |
| Air permeability (L/m2/s) | 150-300 | |
| Tensile strength(N/5×20cm) | Warp | ≥1200 |
| Weft | ≥1300 | |
| Tensile Elongation(％) | Warp | <20 |
| Weft | <45 | |
| Working temperature(℃) | Continues | ≤140 |
| Instant | 160 | |
| Hydrolyzation resistant | Excellent | |
| Alkali resistant | Excellent | |
| Acid resistant | Excellent | |
| Stability of water solution | Good | |
| Finishing Treatment | Singeing,calendering | |
Notices:
Polyester felt can be produced by ordinary staple scrim or high strength filament scrim, due to the customer demands,weight ranges from 350 g/m2 to 800 g/m2.
1. products name: PE (1-200 micron) / PP (1-200 micron) filter cloth for liquid filtration
2. materials available: PE-polyester, PP-polypropylene
3. working temperature: no higher than 150 degree celsius
4. specialties: puffy fiber structure & high air permeability & repeat dust caption feature & better dust holding capacity; low fiber loss & no liquid contamination, long durability, low filtration resistance & liquid pressure dropping.
5. techiniques used: needle punching & singing & press polish technique.
6.specification: PE filter cloth for liquid filtration: 1-200 micron; PP filter cloth for liquid pressure dropping
7. width: dominated by customers within 2.2m
Applications:
Chemical processing:dryers in the pigment,plastic and catalyst industries
Minerals processing:dryers and finish mills in the cement industry
Metal processing:process collectors in the lead,primary base metal,and foundry industries
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
1. Payment
30% TT advance and balance 70% before shipment.
2. Shipping
By sea or by air
3. MOQ
MOQ varies for different product, some products have no request on MOQ.
4. Lead Time
In general, within 15 days after payment.
5. Samples
We can offer samples according to customers requirements.
6. Quality
We have engineers and technicians carry out quality control.
7. Packing
Normally, our products are packed with polybag, woven bag and carton.
