| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | aramid filter |
| Minimum Order Quantity: | 100 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000m per week |
| Application:: | Industry | Type:: | Non-woven Filter |
|---|---|---|---|
| Max Temperature:: | 240 Degree Celsius | Weight:: | 400--600gsm Nonwoven Filter Cloth |
| Material:: | Aramid | Usage:: | Air Filter |
| High Light: | high temperature fabric cloth,Air Filter Fabric |
||

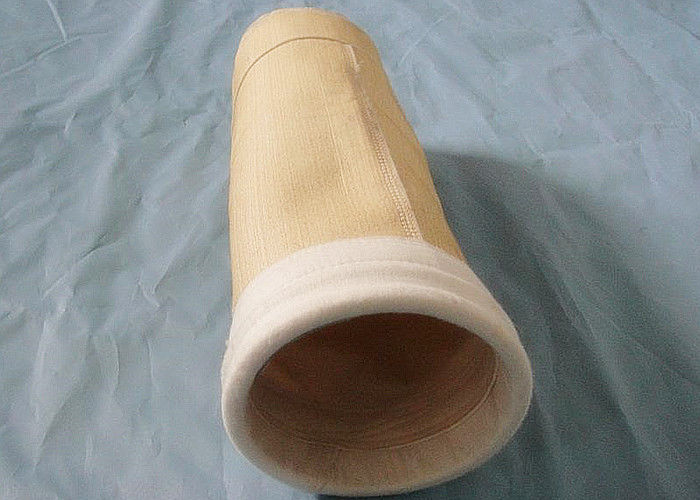

fabric filter large dust holding capacity aramid filter with PTFE membrane for asphalt
Quick Detail:
1. High Temperature resistant
2. Resists flexing and abrasion
3. Effect of moisture
4. Good chemical resistance
Description:
Cement kiln dust collector equipped aramid filter bag ,high temperature resistant aramid filter bag ,water repellent treatment .aramid filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function ,and long wearing life.
Specifications:
| Article Name | aramid needled felt | |
| Ingredients | Fiber | 100% aramid |
| Scrim | 100% aramid | |
| Weight | g/m2 | 500 |
| Thickness | mm | 2±2 |
| Density | g/m³ | 0.24 |
| Permeability | L/dm2.min | 150 |
|
Tensile breaking |
Warp | ≥800 |
| Weft | ≥1000 | |
| Elongation @200N/5cm | Warp | <5 |
| Weft | <5 | |
|
Maximum shrink |
Temperature(°C) | 250 |
| % | ≤1 | |
| Service Temperature(°C) | Continuous | 200 |
| Instant | 240 | |
| Finishing | Singeing, calendaring | |
Filter bag is the most important part in dust collector which influences the collection efficiency and working temperature. Renewal of bags creates major cost in maintaining bag house, so the lifetime of bags are the main factor affecting the cost and working condition of bag-house.
There are three types: woven fabric dust bag, non-woven fabric bag and compound filter material.
Three shapes: round type, flat type and customized type
Filtering method: inner filtering & outer filtering
|
round style(external filtration) |
diameter
|
length
|
applicable for
|
|
120
|
2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000
|
pulse jet bag house
|
|
|
130
|
|||
|
152
|
|||
|
200
|
|||
|
round style(internal filtration)
|
diameter
|
length
|
applicable for
|
|
180
|
6000 8000 10000 12000
|
section reverse flow bag house
|
|
|
250
|
|||
|
300
|
|||
|
flat style
|
diameter
|
length
|
applicable for
|
|
800
|
2000 3000 4000 5000 6000
|
reverse flow bag house
|
|
|
900
|
|||
|
envelope style
|
length width thickness
|
applicable for
|
|
|
1500*750*25
|
side insert bag house
|
||
Applications:
aramid filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .
aramid filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working life.
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.
IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
