| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | aramid filter |
| Minimum Order Quantity: | 100 meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100000m per week |
| Type:: | Non-woven Filter | Technics:: | Nowoven Needle Punched |
|---|---|---|---|
| Efficiency:: | 99.9% | Size:: | Custiomized |
| Medium Material:: | Synthetic Fiber | Usage:: | Dust Filter |
| Weight: | 400--600gsm Nonwoven Filter Cloth | Dust Holding Capacity: | High |
| Technics: | Nowoven Needle Punched | Temperature Resistance: | Up To 204°C |
| Material: | Nomex | Air Permeability: | High |
| Filtration Area: | Large | Filtration Grade: | Hepa Filter |
| Color: | Mixed Color/ Pure Color | Efficiency: | 99.9% |
| Service Life: | Long | Shape: | Cylindrical |
| Usage: | Air Filter | Operating Pressure: | Up To 6 Bar |
| Application: | Industrial Dust Collection | ||
| High Light: | Air Filter Fabric,filter cloth for filter press |
||

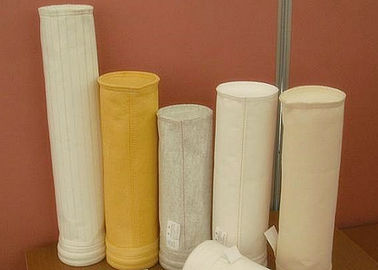

Aramid filter bag Acrylic dust collect filter bags / PE ( Polyester ),PPS,P84
Quick Detail:
1. High Temperature resistant
2. Resists flexing and abrasion
3. Effect of moisture
4. Good chemical resistance
Description:
Cement kiln dust collector equipped Aramid filter bag, high temperature resistant aramid filter bag, water repellent treatment. Aramid filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function, and long wearing life.
Specifications:
| Article Name | Aramid needled felt | |
| Ingredients | Fiber | 100% aramid |
| Scrim | 100% aramid | |
| Weight | g/m2 | 500 |
| Thickness | mm | 2±2 |
| Density | g/m³ | 0.24 |
| Permeability | L/dm2.min | 150 |
|
Tensile breaking |
Warp | ≥800 |
| Weft | ≥1000 | |
| Elongation @200N/5cm | Warp | <5 |
| Weft | <5 | |
|
Maximum shrink |
Temperature(°C) | 250 |
| % | ≤1 | |
| Service Temperature(°C) | Continuous | 200 |
| Instant | 240 | |
| Finishing | Singeing, calendaring | |
Below fiber performance index for your reference.
|
|
Operating Temperature (°C, dry) |
Abrasion Resistance |
Hydrolysis Resistance |
Alkali Resistance |
Organic Acid Resistance |
Mineral Acid Resistance |
Oxidation Resistance (15%) |
|
Aramid |
204/ (220) |
Good |
Good |
Good |
Fair |
Fair |
Fair |
NOMEX FABRIC REPLACEMENT AIR BAG DUST SOCK FILTERS
Filter bag is the most important part in dust collector which influences the collection efficiency and working temperature. Renewal of bags creates major cost in maintaining bag house, so the lifetime of bags are the main factor affecting the cost and working condition of bag-house.
There are three types: woven fabric dust bag, non-woven fabric bag and compound filter material.
Three shapes: round type, flat type and customized type
Filtering method: inner filtering & outer filtering
|
round style(external filtration) |
diameter
|
length
|
applicable for
|
|
120
|
2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000
|
pulse jet bag house
|
|
|
130
|
|||
|
152
|
|||
|
200
|
|||
|
round style(internal filtration)
|
diameter
|
length
|
applicable for
|
|
180
|
6000 8000 10000 12000
|
section reverse flow bag house
|
|
|
250
|
|||
|
300
|
|||
|
flat style
|
diameter
|
length
|
applicable for
|
|
800
|
2000 3000 4000 5000 6000
|
reverse flow bag house
|
|
|
900
|
|||
|
envelope style
|
length width thickness
|
applicable for
|
|
|
1500*750*25
|
side insert bag house
|
||
Applications:
Aramid filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant, cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .
Aramid filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working life.
