Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration

Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration

  • Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration
  • Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration
  • Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration
Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration
Product Details:
Place of Origin: China
Brand Name: Philis
Certification: ISO
Model Number: liquid filter bag
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: standard export package-1000pcs/carton--66(L)*55(W)*44(H)cm
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 30000pcs per day
Contact Now
Detailed Product Description
Material: Polyester & Polypropylene Color: White
Shape: Cone Shape / Funnelform Usage: Water Filtration
Micron: 50 / 100 Micron Or As Your Requires Size:: Customized
High Light:

industrial dust collector bags

,

cement dust collector bags

Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration





Quick Detail:



Material : PP or PE,polyester, polypropylene

Micron rating : 0.5um ~800um

Good anti-abrasion

High temperature grade

Anti-acid ,anti-alkali, chemical resistance

High porosity ,good air permeability

Laminated compound,grads counterchange





Description:



Low temperature resistance ( 88-110 ℃)

Excellent resistant to hydrolysis, acids and alkalies.

Smooth surface, more defined pore size and good air permeability

Lower fiber release, Lower density,High mechanical characteristics





Specifications:



#1-----(7"x16") -----¢180*410mm



#2-----(7" x 32") -----¢180*810mm



#3-----(4"x 8 1/4") -----¢102*210mm



#4-----(4"x 14") -----¢102*356mm



Material PE,PP,NMO,PTFE
Cuff PP Lock, Stainless steel
Relative filtration pore size 0.5, 1,5, 10, 25, 50, 100, 200 µm
Type various specifications
Airtight method: Hot Melt, reverse sewing
Effective filtration area various specifications
Others special requirement of diameter and collar extension can be customized





Material Physical and chemical Performance
Material PE PP MO RY PTEE
Strong Acid Very good excellent poor general excellent
Weak Acid Very good excellent general good excellent
StrongAlkalis poor excellent excellent Very good excellent
Weak Alkalis Very good excellent excellent good excellent
Solvents Very good poor good good Very good
Oxidising Agent good poor general good Very good
Abrasion Resistance Very good very good excellent general poor





Notices:



1. Materials avaliable: polyester, polypropylene

2. construction: welded or sewn

3. collar type: steel ring or plastic ring

4. finishing treatment: singed, calendared, heat set

5. Size available: standard and custom size.





 Technology Characteristics in Normal Temperature

  1. Laminated compound, grads counterchange
  2. High porosity, good iar permeability
  3. High filtration efficiency, long service life
  4. Anti-acid, anti-alkali(medial), chemical resistance.
  5. Good anti-abrasion
  6. Good price quality
  7. Moderate temperature grade(ordinary 120°C, few items above 150-160°C)



Polyester needle felt:



The temperature resistance of PET is between 130-150°C,PE felt is most widely applied. In addition to its special properties as other needle punched felt, it also has good anti-abrasion and better price efficient rate.





Application:

1) Upholistery Furniture-Bedding: Quilt backing , Dust covers, Spring wrap ,Flanging ,Mattress covers

2)Hygiene-Medical: Surgical grown ,Face Mask, Shoes cover, Capes, Bedsheet& pillow covers

3) Agriarture-Landcape: Cropcover, Frost protection cover, Gardening  fabric, Landscape fabric ,Root bag

4) Packing -Household: Non woven bag, Storage box, Wardrobe, Pillow&Duvest bags, Home Apron

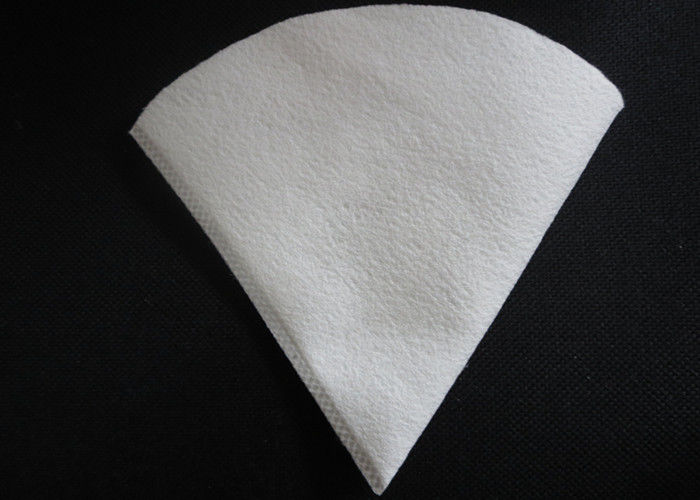

Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration 0

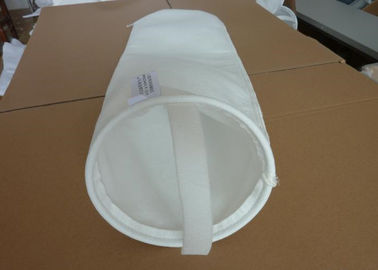

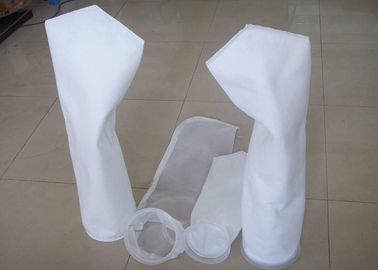

Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration 1Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration 2Nonwoven Polyester Micron Cone Water Filter Bag for Drinking Water Filtration 3





Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.



Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.



The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.



FAQ



1.How to Order?

Dust Filter Cloth P84 Filter Fabric for Air Filtratiion

2.How to assurance the product quality?

We will send the samples to you conform, and will produce the samples according to your satisfaction.



3.Can you provide free sample ?

Normally, our product need sample fee, But we will charge your sample fee as less as we can, even sometimes free sample available.However, you have to pay us the courier cost like: DHL.FEDEX.UPS.TNT...



4.Generally, what time the products can make delivery

In normal circumstances, the products can be delivered within two weeks.



5.Which shipment available?

Normally, we ship goods by sea,air and express. Special requirement also acceptable

By sea to your nearest sea port

. By air to your nearest air port

By express(UPS,DHL.FEDEX,TNT...) to your door



Remarks



1) The length of dust filter bags can be customized.



2) If your dust filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag.



3) Please send us your inquiry specification detail by email for quotation, thanks my friends.
