| Place of Origin: | China |
| Brand Name: | Philis |
| Certification: | ISO |
| Model Number: | liquid filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export package |
| Delivery Time: | within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs per day |
| Material: | Pp, Pe, Nylon | Color: | White |
|---|---|---|---|
| Top Ring: | Plastic Ring, Ss Ring, Iron Wire Ring And So On | Size: | According To Your Requires |
| Micron: | 0.5-800 Micron, Nylon Can Be 1000mesh | Usage:: | Liquid Filter--anti-static |
| High Light: | industrial dust collector bags,pall filter bags |
||

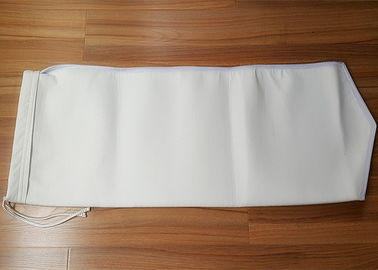

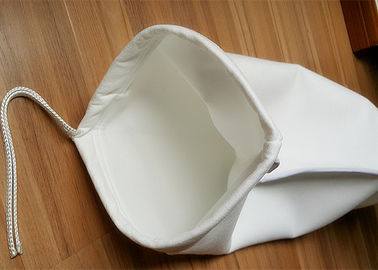

Polyester Fiber Water Filtration Bag Anti Static High temperature grade
Quick Detail:
Material : PP or PE,polyester, polypropylene
Micron rating : 0.5um ~800um
Good anti-abrasion
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Description:
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Specifications:
#1-----(7"x16") -----¢180*410mm
#2-----(7" x 32") -----¢180*810mm
#3-----(4"x 8 1/4") -----¢102*210mm
#4-----(4"x 14") -----¢102*356mm
| Material | PE,PP,NMO,PTFE |
| Cuff | PP Lock, Stainless steel |
| Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type | various specifications |
| Airtight method: | Hot Melt, reverse sewing |
| Effective filtration area | various specifications |
| Others | special requirement of diameter and collar extension can be customized |
|
PRODUCT CODE: |
|||
|
Component |
Elongation@50N/5cm |
||
|
Fibre |
100%PET |
Longitudinal(%) |
Transverse(%) |
|
Scrim |
100%PET |
<3% |
<3% |
|
Weight(g/m²) |
500 |
Operating Temperatures |
|
|
Thickness(mm) |
2.0 |
Continuous(°C) |
Surge(°C) |
|
Density(g/cm3) |
0.25 |
130 |
150 |
|
Mean Air Permeability (L/dm².min) |
150-250 |
Max Dry Shrinkage in 90 minutes:(150°C)(%) |
<1% |
|
Breaking Strength |
Surface Treatment |
Heat Setting, Singed, Represent add stainless steel fibers |
|
|
Longitudinal(N) |
Transverse(N) |
||
|
>1000 |
>1200 |
||
Notices:
1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Applications:
1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.
1. Using imported German materials, ensure the precision of product.
2. The product specification identified on the pocket mouth, is convenient for user distinguish. Setting a handle on the pocket mouth, will be more convenient for replacement.
3. Plastic bag individually packing, clean and beautiful.
We have full range of materials, can supply numerous customized filter bags to meet your needs.
Philis will sincerely service you with our super quality and competitive price product.
